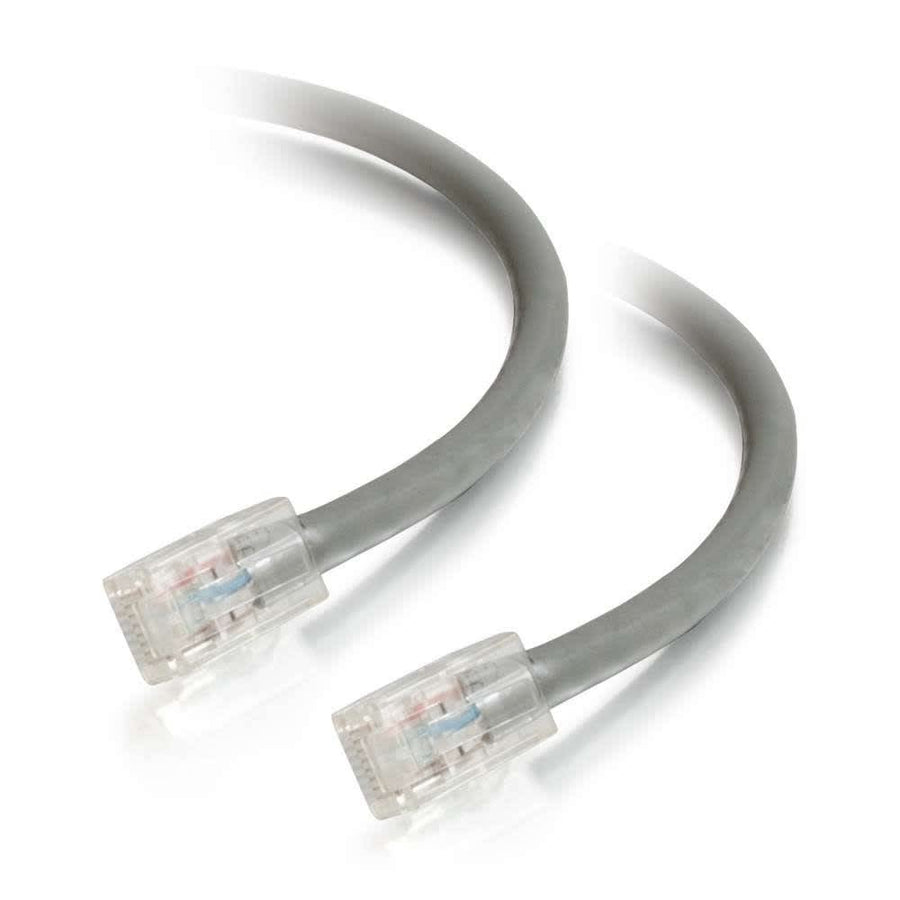

50ft (15.2m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
50ft Cat5e unshielded UTP patch cable in gray, featuring stranded copper conductors and T568B wiring for high-speed network connectivity
The C2G CG24392 is a 50ft (15.2m) Cat5e Unshielded UTP Ethernet Network Patch Cable designed to support bandwidth-intensive applications including voice, data, and video distribution. This cable is constructed with high-quality stranded copper conductors and is engineered to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). This patch cable uses a non-booted connector type with RJ-45 male terminations on both ends and follows the T568B wiring scheme. With a cable diameter of 0.21 in (5.3 mm) and a PVC jacket, it is suitable for connections between network adapters, hubs, switches, and routers. This gray cable is part of a series that offers various colors and lengths up to 150ft to facilitate network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 50 ft (15.2 m) |
| Shield Type | UTP |
| Shipping Weight | 1.04 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 13
| Category Performance Application | Cat5e |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
Will this CG24392 cable work with my network switch or router?
Yes, this Cat5e patch cable is designed for use with network adapters, hubs, switches, routers, and similar hardware.
What is the wiring standard for the C2G CG24392?
This patch cable is wired using the T568B scheme and features non-booted RJ-45 male connectors.
Is the CG24392 cable suitable for in-wall use?
This cable features a CMG In-Wall Rated Jacket, making it suitable for in-wall applications.
What are the physical dimensions of this patch cable?
The cable has a diameter of 0.21 in (5.3 mm) and a total length of 50 ft (15.2 m).
Does this cable support high-bandwidth video or voice applications?
Yes, it is designed for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution.
