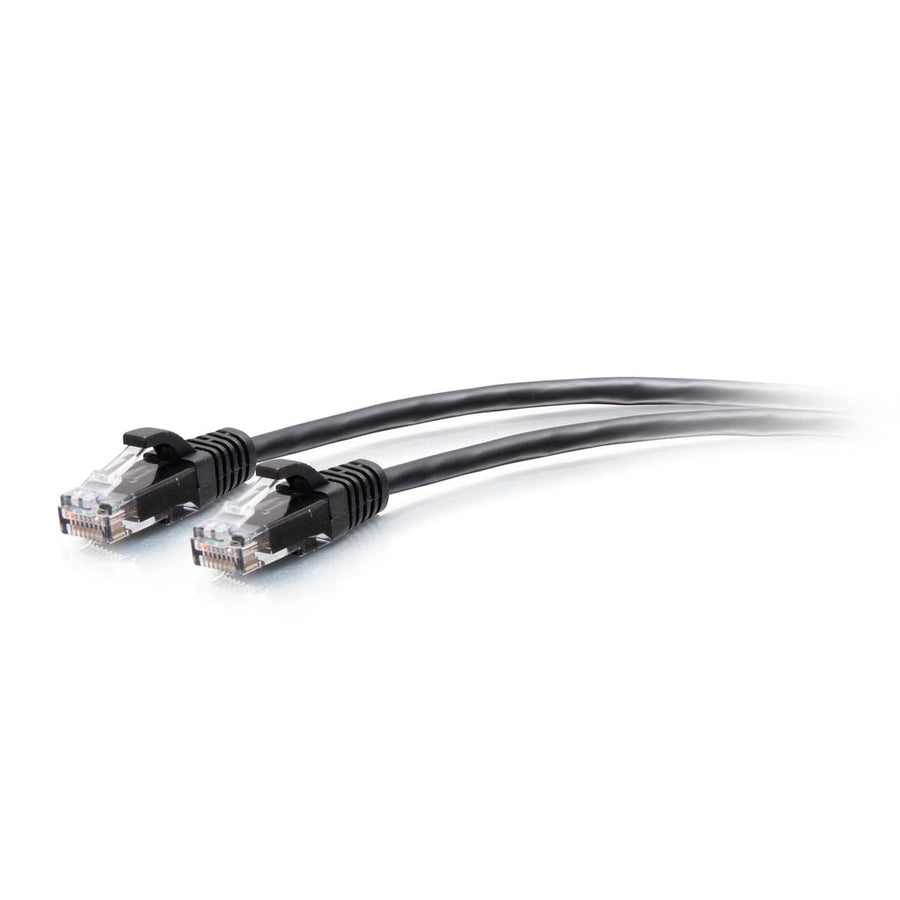

4ft (1.2m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
4ft Cat6a slim patch cable with 28AWG construction and snagless boots for high-density installations
The C2G30142 is a 4ft (1.2m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling applications. In environments like large conference rooms or data centers, space is often at a premium; this cable uses 28AWG stranded copper conductors to reduce the overall cable diameter to 0.19 in (4.8 mm) ± 0.15 mm (0.01 in) ± 0.15 mm. This reduced profile increases airflow in crowded racks and provides the flexibility required for tight-space installations. This slim profile is particularly useful for HDBaseT technology applications that require high bandwidth. This Cat6a cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each cable features a molded, snagless PVC boot to prevent snags during installation and provide additional strain relief, and the RJ-45 male connectors feature gold-plated contacts. This product is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.17 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301424 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work in high-density data center racks?
Yes, the 28AWG slim construction provides a 0.19 in (4.8 mm) diameter, which increases airflow and flexibility in crowded mounting environments.
What is the maximum data transfer speed for the C2G30142?
This Cat6a patch cable supports data transfer rates up to 10 GBPS, making it suitable for high-bandwidth applications like HDBaseT.
Does this cable include snagless boots to prevent damage during installation?
Yes, the C2G30142 features a molded, snagless PVC boot that provides extra strain relief and prevents cable snags during deployment.
Is this cable suitable for PoE or VoIP applications?
The increased bandwidth and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) setups.
What compliance certifications does this cable hold?
The C2G30142 is NDAA 889 compliant and carries CE, RoHS, REACH, and Prop 65 certifications.
