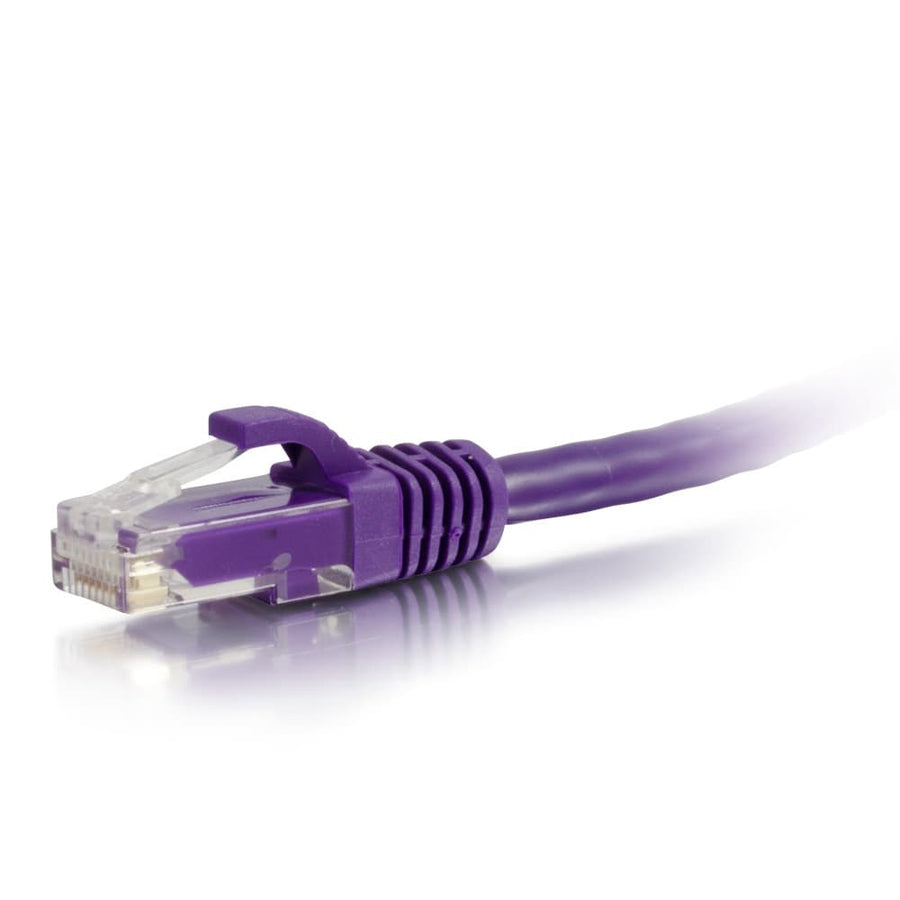

4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
Purple 4ft (1.2m) Cat6a snagless unshielded UTP patch cable for 10Gigabit data transmission
The CG50820 is a 4 ft (1.2 m) Cat6a snagless unshielded UTP ethernet network patch cable designed for 10GBase-T ports and high-speed equipment. This purple cable supports 10 Gigabit data transmission over 4-pair copper cabling, facilitating connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, making it a reliable choice for switches, routers, hubs, and patch panels. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable provides improved alien crosstalk performance compared to standard Cat6 systems. The snagless PVC connector hood is specifically designed for high-density switch applications where space is limited. Each cable features an individual length label for easy identification during installation and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508205 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this CG50820 cable work with my 10Gb network equipment?
Yes, it is designed for 10GBase-T ports, including network adapters, switches, routers, and hubs, supporting 10 Gigabit transmission.
Is the CG50820 suitable for high-density rack installations?
The snagless connector design is optimized for high-density switch applications, protecting the jack and facilitating easier cable management.
What is the wiring standard for this patch cable?
The CG50820 uses the 568B wiring scheme for its RJ-45 male connectors.
What compatible components can I use with this Cat6a cable?
It is compatible with various Cat6a components, such as the WP246A 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
Does this cable include a warranty?
Yes, this C2G patch cable comes with a lifetime warranty.
