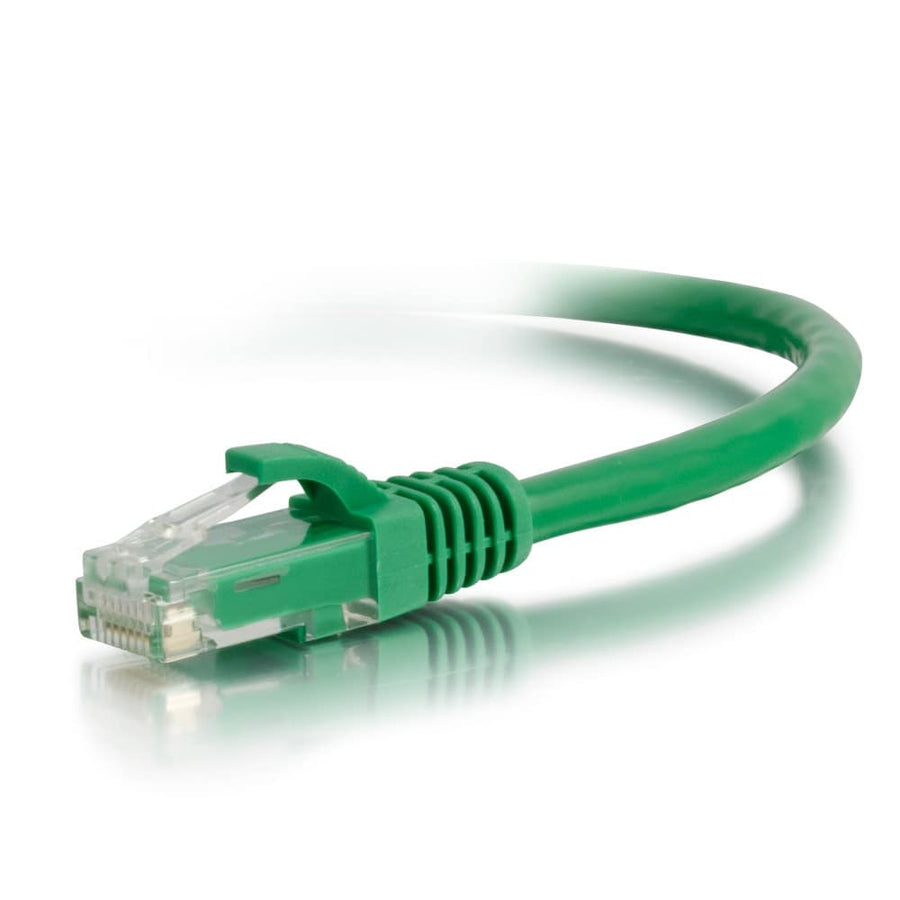

4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
4ft Green Cat6a Snagless Unshielded UTP Ethernet Patch Cable for 10GBase-T networking and high-density switch applications
The C2G CG50782 is a 4 ft (1.2 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed to support 10GBase-T ports and high-speed networking equipment. This green patch cable enables 10 Gigabit data transmission over a 4 pair copper cable, facilitating connections up to 100 meters in compliant systems. It is constructed with 26AWG (7/0.16) bare copper stranded conductors and HDPE insulation to improve alien crosstalk performance. The cable features a snagless, booted RJ-45 male to RJ-45 male connector design, making it ideal for high-density switch applications where space is limited. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements and features an individual length label for easy identification during installation. The PVC jacket and connector hood provide durability for professional networking environments including hubs, switches, routers, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507826 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Questions about this part
Yes, this cable supports 10GBase-T equipment and enables 10 Gigabit data transmission over 4 pair copper cable for connections up to 100 meters.
Yes, this cable supports 10GBase-T equipment and enables 10 Gigabit data transmission over 4 pair copper cable for connections up to 100 meters.
What is the purpose of the snagless design on the CG50782?
The snagless hood is specifically designed to protect the connector in high-density switch applications, making it easier to manage cables in crowded racks.
Is this cable compatible with standard Cat6a patch panels?
Yes, it is designed for use with network hardware like patch panels, hubs, switches, and routers. It is compatible with various Cat6a components such as the WP246A 24-Port Rack Mount Patch Panel.
How can I identify this cable in a large bundle?
This SKU features a green color-coded jacket and an individual length label on each cable to allow for easy identification during installation.
What testing standards does this patch cable meet?
Each cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
