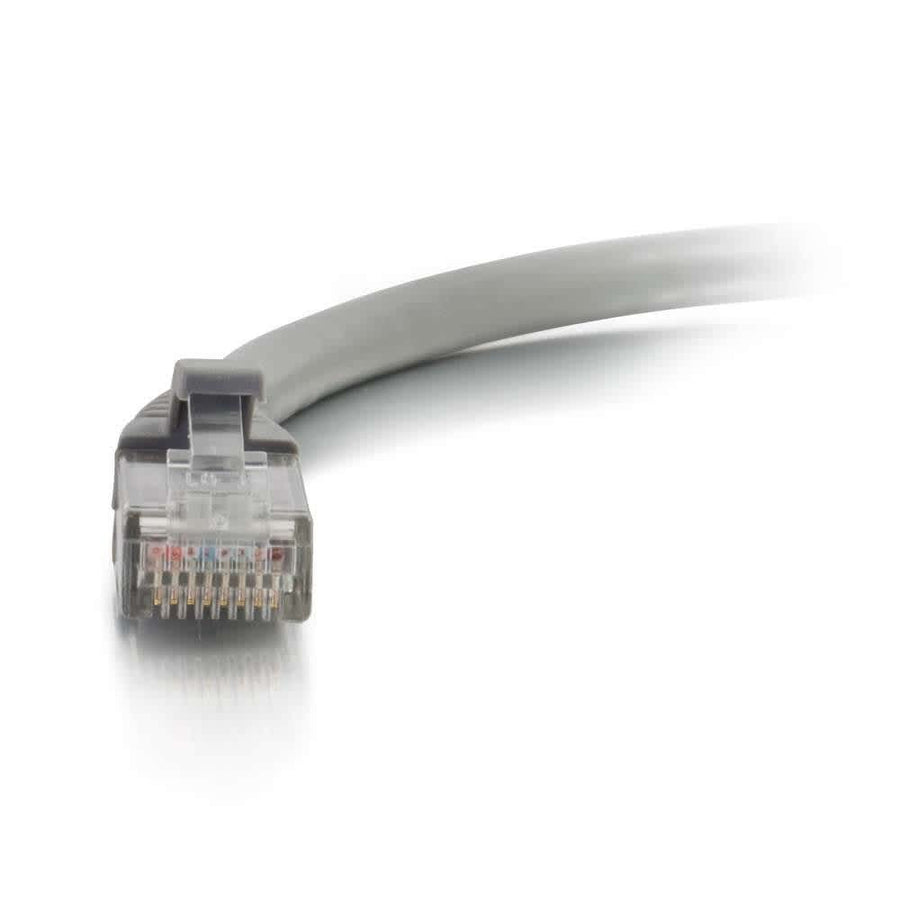

4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
4ft Cat6a snagless unshielded UTP patch cable, 26AWG stranded copper, gray finish
The C2G CG00658 is a 4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed to support 10GBase-T equipment, including network adapters, switches, routers, and hubs. This cable enables 10 Gigabit data transmission over 4-pair copper cabling, facilitating connections up to 100 meters. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved performance against alien crosstalk. Built with 26AWG bare copper stranded conductors and HDPE insulation, this cable features a gray PVC jacket and a 0.24 in (6 mm) diameter. The snagless, booted RJ-45 male connectors are specifically designed for high-density switch applications where space is limited. This gray patch cable is part of a larger series available in various lengths and colors, allowing for easy color-coding within complex network installations. For submittals, refer to the C2G Ethernet Patch Cable Matrix.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006589 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
2-Port Keystone Jack Surface Mount Box - White
CG03833$5.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
4-Port Surface Mount Box
WP3504WH$4.99
Questions about this part
What is the maximum distance this Cat6a cable can support?
The CG00658 supports 10 Gigabit data transmission over distances up to 100 meters.
Will this cable work in a high-density patch panel or switch?
Yes, the snagless hooded RJ-45 connectors are designed specifically to facilitate installation in high-density switch applications.
What is the wiring scheme for the CG00658?
This patch cable uses the T568B wiring scheme.
What accessories are compatible with this Cat6a cable?
It is compatible with various components like the WP346ABK Cat6a Quick Connect RJ45 Keystone Insert and the WP246A Cat6a 24-Port Rack Mount Patch Panel.
Does this cable require additional shielding for 10Gb Ethernet?
The CG00658 is an Unshielded UTP cable designed to provide improved alien crosstalk performance for Cat6a applications.
