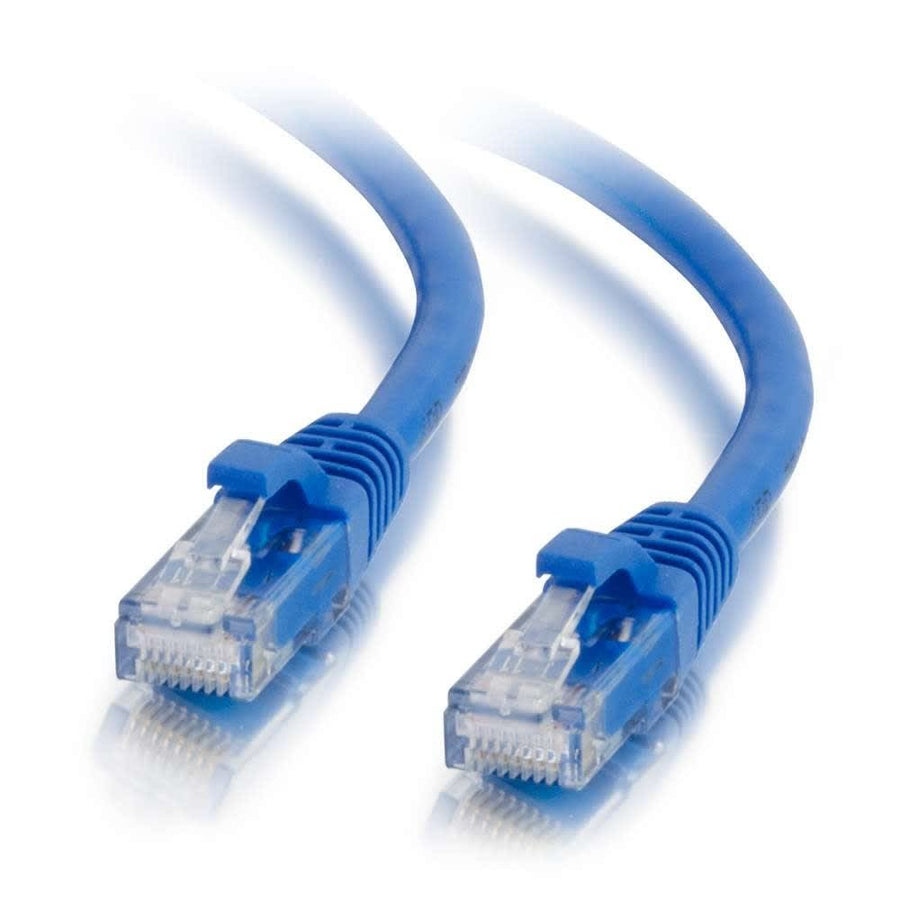

4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
4ft Blue Cat6a Snagless UTP Ethernet patch cable, 26AWG stranded copper, for 10 Gigabit data transmission
The C2G CG00692 is a 4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-density networking environments. This blue patch cable supports 10GBase-T ports and equipment, providing the necessary bandwidth for 10 Gigabit data transmission over 4-pair copper cabling up to 100 meters. It is constructed with 26AWG bare copper stranded conductors and features HDPE (High-density Polyethylene) insulation for reliable performance. The cable utilizes a PVC jacket and PVC connector hoods. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, which helps improve alien crosstalk performance in demanding setups. The integrated snagless boots protect the RJ-45 male connectors in high-density switch applications. This cable series is available in a variety of colors to facilitate network color-coding, and each individual cable includes a length label for easy identification during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006923 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with 10GbE equipment?
Yes, the CG00692 supports 10GBase-T ports, including network adapters, hubs, switches, routers, and modems, providing 10 Gigabit transmission.
What is the wiring scheme for the CG00692?
This patch cable utilizes the 568B wiring scheme and is constructed with 4-pair 26AWG stranded copper conductors.
Can I use this cable in high-density patch panels?
Yes, the snagless hood design is specifically intended to protect connections in high-density switch and patch panel applications.
Does this cable meet Cat6a standards?
The CG00692 is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements for reliable performance.
What other components are compatible with this series?
This cable is compatible with several accessories, including the WP246A 24-Port Rack Mount Patch Panel and various Cat6a Keystone Inserts like the WP346ABK.
