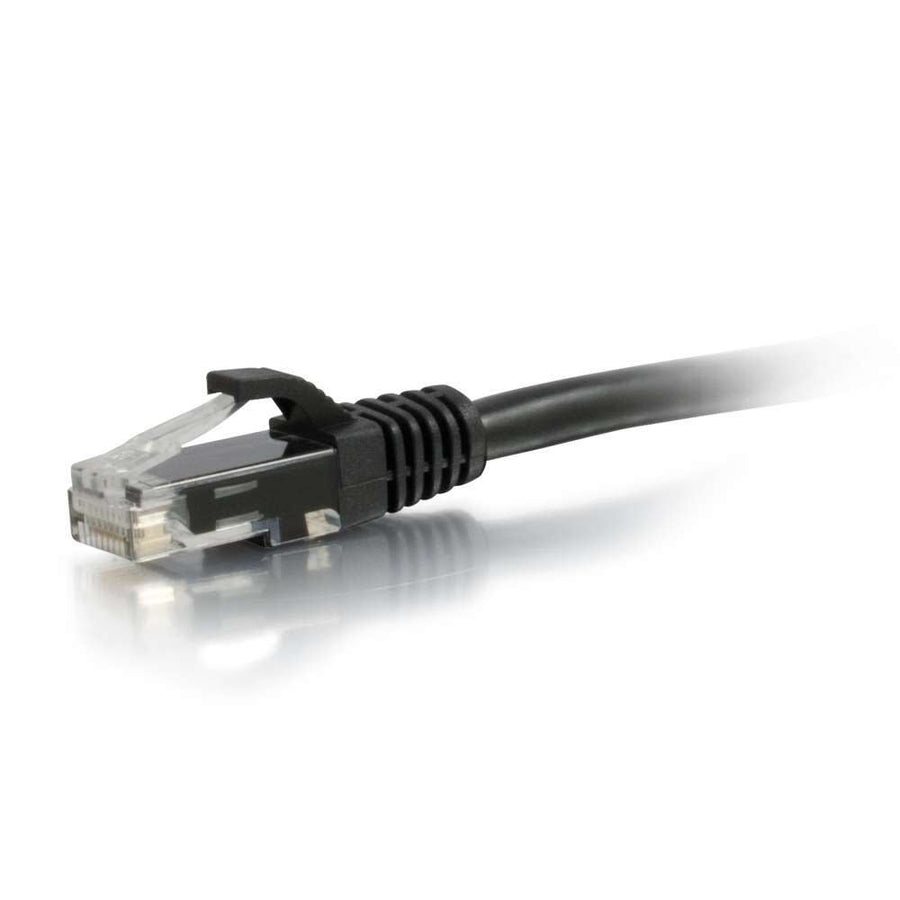

4ft (1.2m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
4ft Cat6a Snagless UTP Ethernet patch cable, 26AWG stranded copper, supports 10 Gigabit data transmission
The C2G CG00726 is a 4 ft (1.2 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed to support 10GBase-T ports and high-speed equipment. This cable enables 10 Gigabit data transmission over a 4 pair copper cable, facilitating connections up to 100 meters. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien cross talk performance compared to standard Cat6 cabling systems. Constructed with 26AWG bare copper conductors and HDPE insulation, this cable features a 0.24 in (6 mm) diameter and a PVC jacket. The snagless, booted RJ-45 male connectors are specifically designed for high-density switch applications to prevent accidental disconnection or damage during installation. The cable utilizes a 568B wiring scheme and is rated for temperatures up to 75°C. This black patch cable is an ideal solution for connecting network adapters, hubs, switches, routers, modems, and patch panels in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.14 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007265 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Is the C2G CG00726 compatible with 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed to support 10GBase-T ports and 10 Gigabit data transmission over 100 meters.
What is the wiring scheme for this CG00726 cable?
This 4 ft (1.2 m) patch cable follows the 568B wiring scheme.
Will this cable work in high-density switches?
Yes, the snagless hood and booted RJ-45 connectors are designed to facilitate installation in high-density switch applications.
What is the difference between this and a standard Cat6 cable?
This Cat6a cable is tested to ANSI/TIA 568 C.2 standards and provides improved alien cross talk performance for 10 Gigabit applications.
What accessories are compatible with this Cat6a cable?
This cable is compatible with various accessories including the CG39002 LANsmart TDR Cable Tester and the CG29400 Psiber Cable Tracker.
