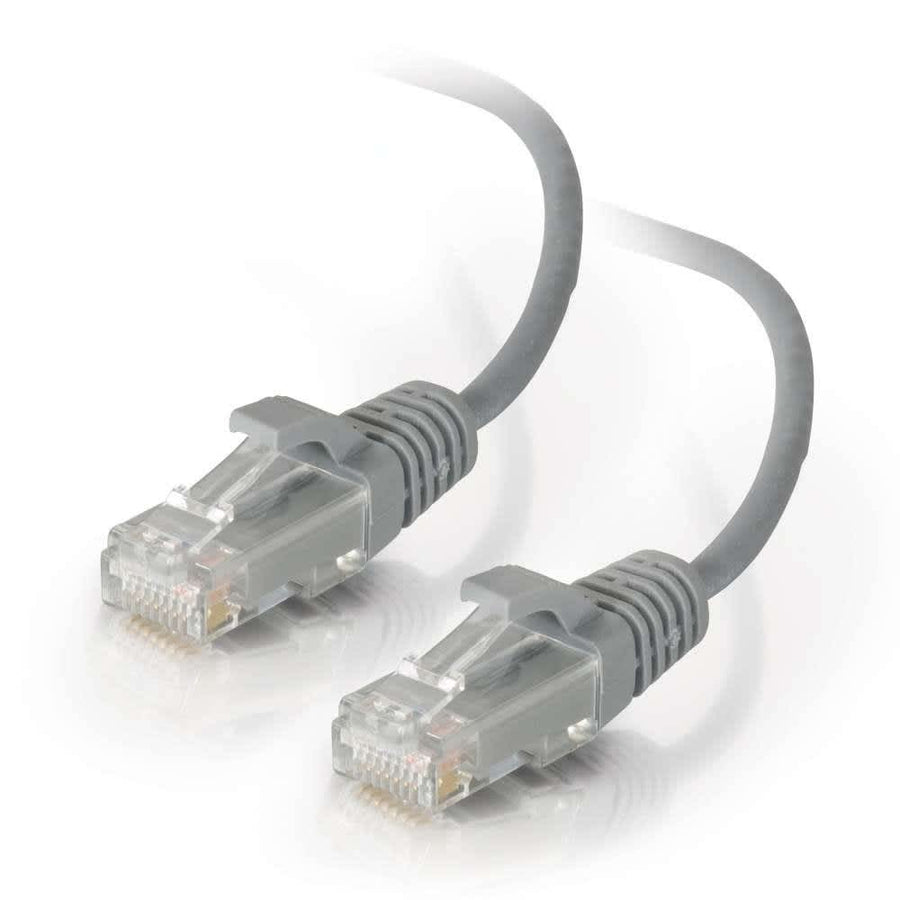

4ft (1.2m) Cat5e Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Gray
4ft slim Cat5e unshielded UTP patch cable with 28AWG conductors and snagless connectors
The C2G CG01041 is a 4 ft (1.2 m) Cat5e slim unshielded UTP network patch cable designed for high-density environments where space is at a premium. This cable features a 0.15 in (3.8 mm) diameter, representing a 28% reduction in diameter compared to standard Cat5e cables. It is constructed with 28AWG stranded copper conductors and features HDPE insulation and a PVC jacket. The connectors are booted, slim, and snagless RJ-45 male types. This specific model uses 28AWG conductors, which does not meet the 22-26AWG conductor size requirement of ANSI/TIA-568-C.2; consequently, attenuation is increased due to the smaller wire gauge. For PoE or PoE+ applications, heat dissipation requirements limit cable bundles to 40 cables. Recommended maximum channel lengths are 96 meters for a 90-meter horizontal cable with up to 6 meters of slim patch cables, or 93 meters for an 83-meter horizontal cable with up to 10 meters of slim patch cables.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 4 ft (1.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
All other specifications 13
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | BootedSlimSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120010418 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
USB-C® to Ethernet Network Adapter Converter
CG29826$43.99
Surface Mount Box 2-Port in White
WP3502WH$2.99
1-Gang 2-Port Wall Plate in White
WP3402WH$1.79
12-Port Cat6 Network Interface Module
AC1015$164.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
0.5ft (0.15m) Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29858$9.99
Questions about this part
Will the CG01041 work for PoE or PoE+ applications?
Yes, but for PoE/POE+ applications, cable bundles should be limited to 40 cables due to the heat dissipation characteristics of the 28AWG reduced diameter conductors.
What is the maximum channel length for this Cat5e slim cable?
You can use a 96 meter channel with 90 meters of horizontal cable and up to 6 meters of these slim patch cables, or a 93 meter channel with 83 meters of horizontal cable and up to 10 meters of slim patch cables.
Does this cable meet ANSI/TIA-568-C.2 standards?
The CG01041 meets the ANSI/TIA-568-C.2 standard for Patch Cord Performance, though note that the 28AWG conductors result in increased attenuation compared to 22-26AWG cables.
What is the diameter of the CG01041 cable?
This cable has a 0.15 in (3.8 mm) diameter, which is 28% smaller than standard Cat5e cabling.
What certifications does this patch cable have?
The CG01041 is compliant with RoHS, REACH, TSCA, NDAA 889, and Prop 65.
