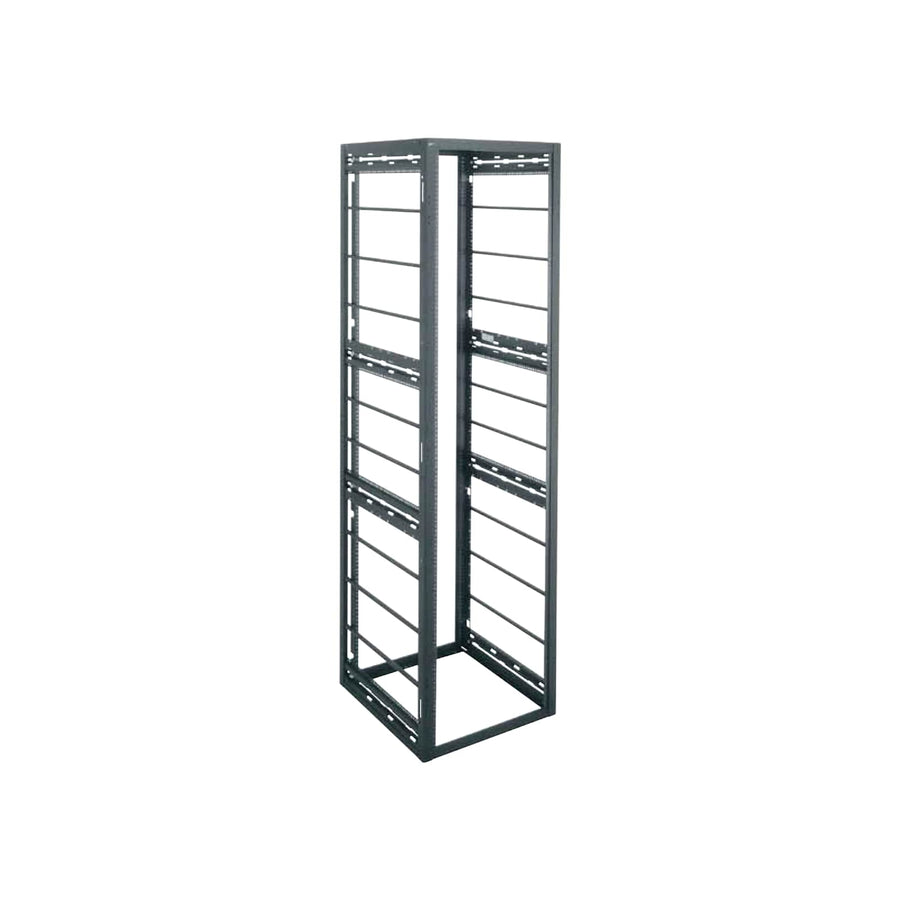

48 RU GRK Series Broadcast Rack, 42 Inches Deep
48 RU broadcast rack with a 1,500 lb. capacity and 42 in (106.7 cm) depth, built with a solid frame for high-density video environments
The Middle Atlantic GRK-48-42HLRD is a 48 RU broadcast rack designed for high-density video environments requiring organized cable management. This floor-standing, welded gangable rack features a solid frame at the top and bottom for enhanced construction stability. It supports a weight capacity of 1,500 lbs (680.4 kg) and is 42 in (106.7 cm) deep. For efficient routing, the rack includes horizontal cable management bars for tie-and-slide lacing and allows straight vertical cable runs through the fully open top and bottom. The University hinged GRK door can be installed with either a left or right swing and is available in front and back configurations. This unit is TAA compliant and carries UL Listed and cULus certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 42 in (106.7 cm) |
| Height | 87 in (221 cm) |
| Rack Units | 48 RU |
| Shipping Weight | 119.74 lbs (54.3 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747203268 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40

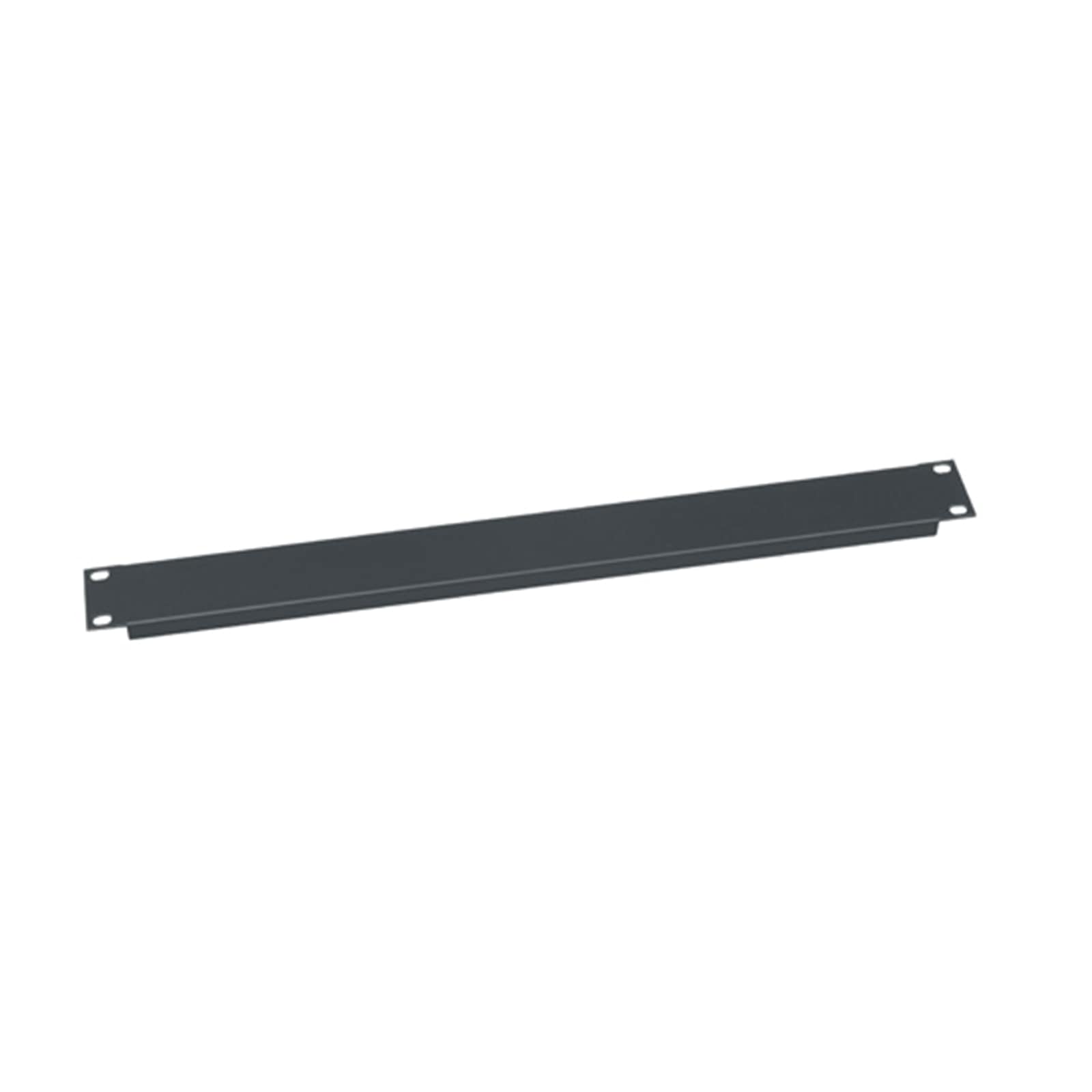

1 RU Flanged Blank Rack Panel, Wrinkled
WSB1$24.30
100 CFM Fan Panel, Anodized
QFP-2$252.90
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
1 RU Utility Rackshelf, 10.4 Inches Deep, Vented
U1V$74.70
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
1 RU Utility Rackshelf, 10.75 Inches Deep
U1$72.90
Questions about this part
Will this rack support my heavy broadcast equipment?
Yes, this GRK series rack has a 1,500 lb (680.4 kg) weight capacity and is built with a solid top and bottom frame for high-density loads.
What do I need to buy to complete my cable management?
For organized lacing, you can add L-Shaped Lace Bars (part number LBP-1A) to the horizontal management bars included with the rack.
Is this rack suitable for TAA compliant projects?
Yes, the GRK-48-42HLRD is TAA compliant and is manufactured in the USA.
How can I manage vertical cable runs in this rack?
The rack is designed with fully open top and bottom openings to allow for straight vertical cable runs.
Which documentation should I use for a submittal?
You can refer to the GRK Series Broadcast Rack A&E Specification Sheet or the Instruction Sheet for installation details.
