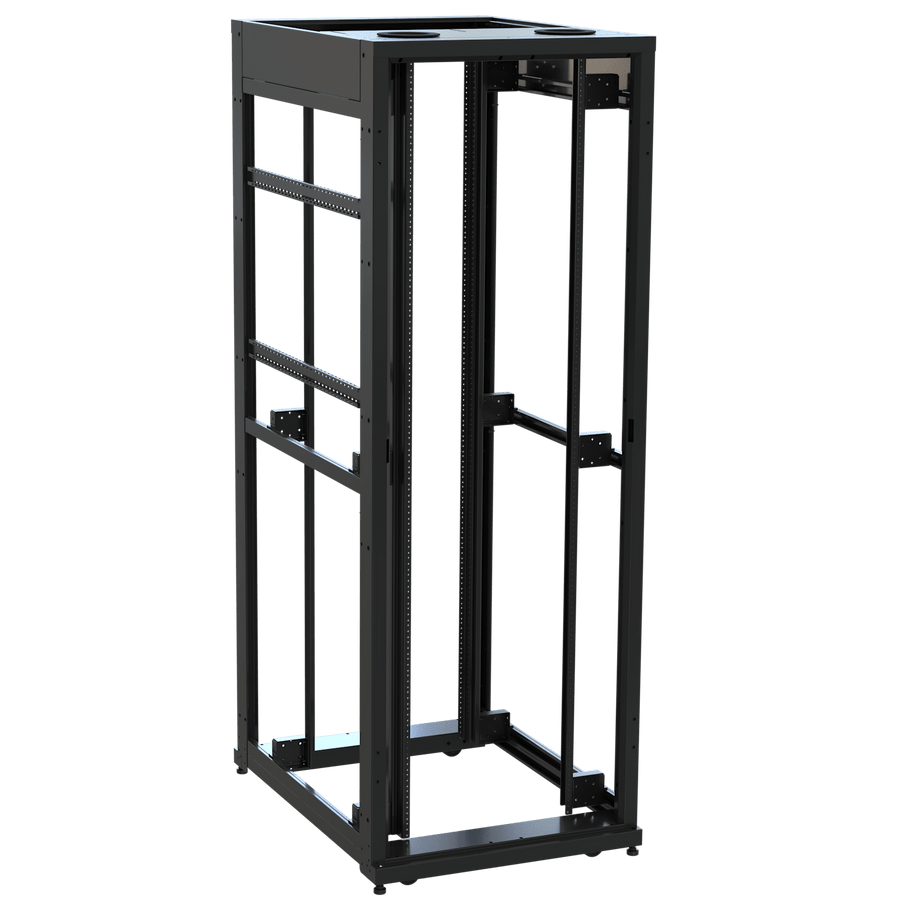

45 RU SNE Series Rack Frame, 42 Inches Deep, 30 Inches Wide with 10-32 Rackrail
45 RU floor-standing rack frame, 30.04" wide with 42" depth and 3000 lbs UL load capacity
The Middle Atlantic SNE30F-4542 is a 45 RU floor-standing rack frame designed for high-performance security and network infrastructure. This series provides a purpose-built solution for IP networking, analog, digital, and hybrid systems. Built for demanding environments, the frame is seismic rated and UL listed, supporting a total load capacity of 3000 lbs (1,360.8 kg). This specific model features a 30.04" (76.3 cm) width and a 42 in (106.7 cm) depth, providing a usable depth of 38.48 in (97.7 cm). The frame is provided with two pairs of 10-32 threaded rackrails and includes four leveling feet and four casters for installation flexibility. The chassis features a black texture powder coat finish and is TAA compliant. Note that this product is scheduled for discontinuation on December 1, 2026; the recommended replacement is the DRK19-44-42.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 245 lbs (111.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747232268 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
IFTA-6$762.30
MPR Raceway, 56 Inches, Accepts 6 Modules
MPR-6A$158.40
45 RU SNE Series Vertical Cable Management Duct
SNE-45DUCT-4X6$561.60
45 RU Vented Door (64%) for 30 Inch SNE Rack
SNE30-LVD-45$623.70
Lever Lock Vertical Angle 17.1 Inches
LL-VA21$15.30
45 RU Rackrail 10-32 for 30 Inch Wide SNE Series
SNE30-1032RR45$458.10
Seismic Brackets for 30 Inch Wide SNE Series
SNE30-Z4$360.90
45 RU Side Panel for 4542 Inch SNE Racks
SNE-SPNH-4542$450.90
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the SNE30F-4542 fit my equipment requirements?
This frame provides 45 RU of space with a usable height of 78.75 in (200 cm) and a usable depth of 38.48 in (97.7 cm).
What is the weight capacity of this rack frame?
The SNE30F-4542 has a UL load capacity of 3000 lbs (1,360.8 kg).
Is the SNE30F-4542 seismic rated for high-risk areas?
Yes, this SNE Series frame is seismic rated and UL listed for professional installations.
What accessories are needed to complete the enclosure?
This is a frame-only system. To complete the enclosure, you may need SNE-SPNH-4542 side panels and SNE30-LVD-45 vented doors.
What is the difference between this frame and the DRK19-44-42?
The SNE30F-4542 is part of the SNE Series, which is being discontinued on December 1, 2026; the DRK19-44-42 is the manufacturer's recommended replacement.
