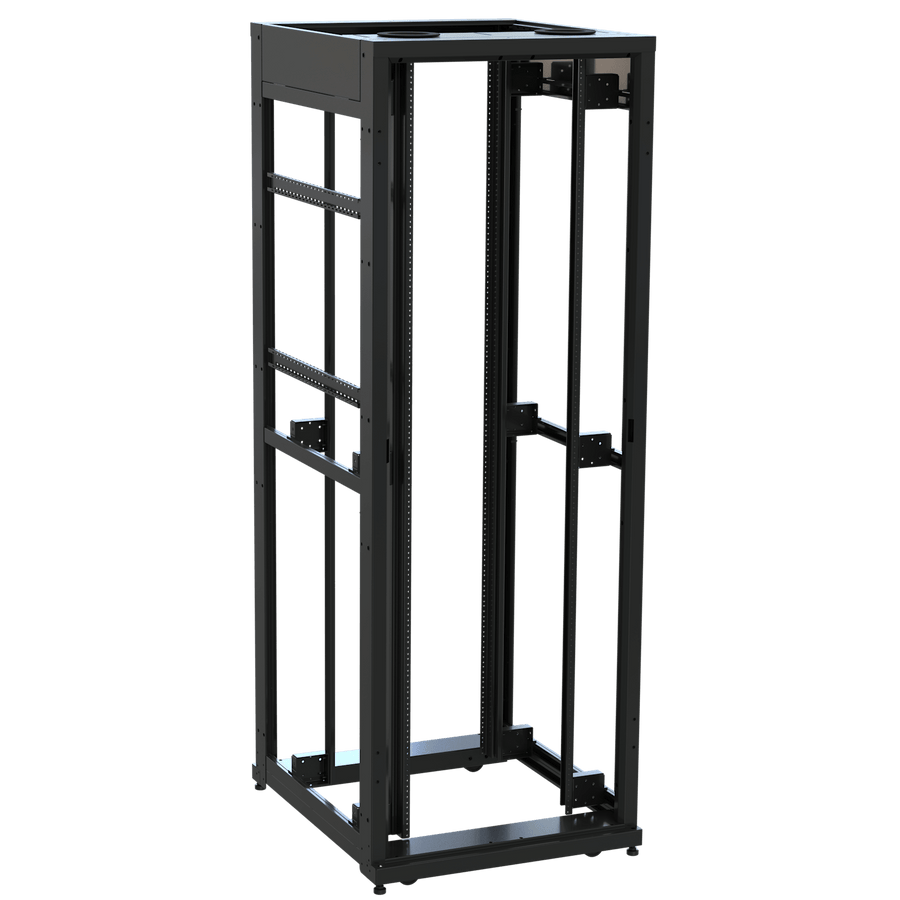

45 RU SNE Series Rack Frame, 36 Inches Deep, 30 Inches Wide with 10-32 Rackrail
45 RU floor-standing rack frame, 30 inches wide, 36 inches deep, seismic rated and TAA compliant
The SNE30F-4536 is a 45 RU floor-standing rack frame from the SNE Series, designed for high-performance security and network enclosures. This 30.04" wide and 36" deep frame provides a 78.75" usable height and a 32.48" usable depth, making it a robust solution for IP, analog, digital, and hybrid systems. This frame is seismic rated and UL listed, ensuring stability in demanding environments. It is engineered with a 10-32 threaded rack rail type and includes two pairs of 10-32 threaded rackrails. For installation flexibility, the frame features a Lever Lock™ system compatible for mounting small devices in unused spaces. This TAA compliant, USA-made frame is gangable and includes 4 leveling feet and 4 casters for easy positioning and stability. Note that this product is scheduled for discontinuation on December 1, 2026; the recommended replacement is the DRK19-44-36.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 84.9 in (215.7 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 2.36 lbs (1.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 78.75 in (200 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747216848 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
45 RU SNE Series Vertical Cable Management Duct
SNE-45DUCT-4X6$561.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
45 RU Vented Door (64%) for 30 Inch SNE Rack
SNE30-LVD-45$623.70
45 RU Side Panels for 36 Inch Deep SNE Racks
SNE-SPN-4536$691.20
600 CFM Top Fan for 30 Inch SNE Racks
SNE30-6FT-FC-K$1,137.60
45 RU Plexi Door for 30 Inch SNE Racks
SNE30-PD-45Discontinued
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Questions about this part
Will this SNE30F-4536 frame fit my specific network equipment?
This frame is part of the SNE Series designed for IP, analog, digital, and hybrid systems. It features 10-32 threaded rackrails and is compatible with various SNE Series accessories like the SNE30-LVD-45 vented door or SNE-SPN-4536 side panels.
What is the maximum weight capacity for this rack frame?
The SNE30F-4536 has a UL Load Capacity of 3000 lbs (1,360.8 kg).
What do I need to buy to complete the enclosure?
This is a frame only. To create a full enclosure, you may need to purchase items such as SNE-SPN-4536 side panels, a vented door like the SNE30-LVD-45, or vertical cable management like the SNE-45DUCT-4X6.
Is this rack frame suitable for seismic environments?
Yes, this frame is seismic rated and UL listed, making it suitable for environments requiring high stability.
What is the replacement for the SNE30F-4536?
The SNE30F-4536 is scheduled for discontinuation on December 1, 2026, and the manufacturer recommends the DRK19-44-36 as the replacement.
