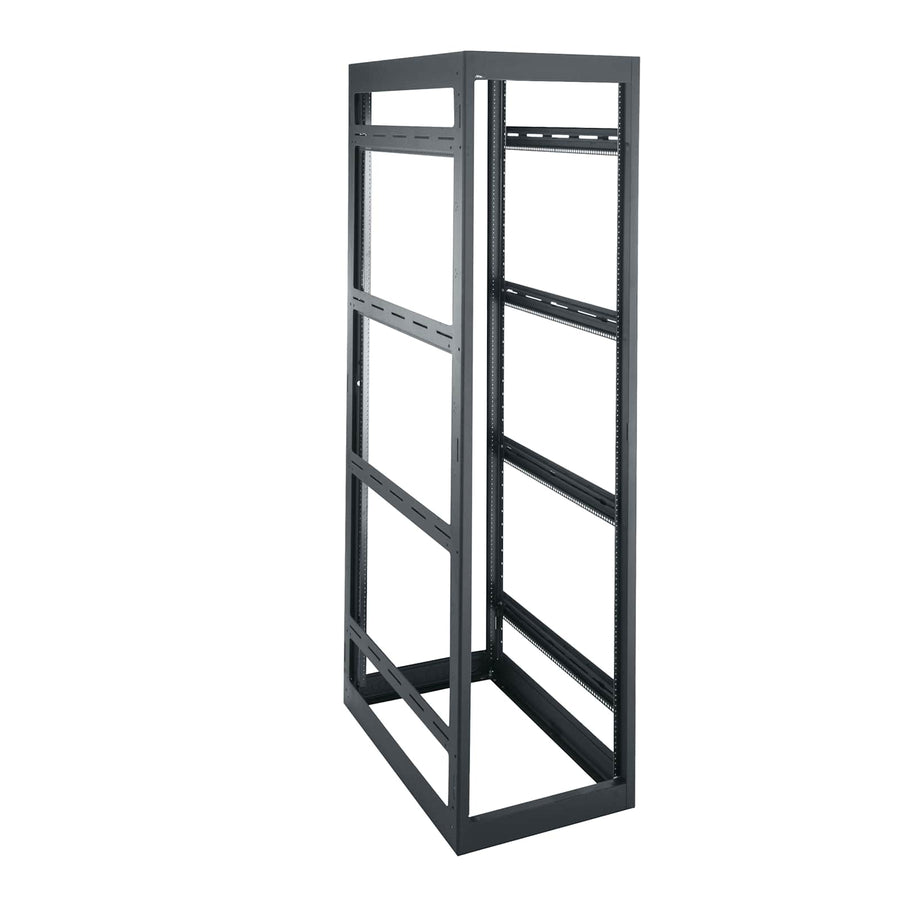

44 RU MRK Series 22 Inch Wide Rack, 26 Inches Deep without Rear Door
44 RU floor-standing seismic rack, 22" wide x 26" deep, TAA compliant and UL listed with 2500 lbs UL load capacity
The MRK-4426LRD is a 44 RU floor-standing rack designed for high-performance, ruggedized AV environments. This frame-only configuration features a 22" width and 26" depth (660 mm), providing a usable depth of 24" (610 mm) for equipment mounting. Built with fully welded construction for maximum strength, this rack is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 1050 lbs (476.3 kg). It is UL listed with a UL load capacity of 2500 lbs (1,134 kg). This model is TAA compliant and is manufactured in the USA. For large-scale multi-bay deployments, these racks are gangable to create seamless enclosures. The rack includes standard front and rear adjustable 10-32 threaded rackrails with numbered spaces and multiple lacing points for cable management. This SKU is a frame-only configuration and does not include side panels or a rear door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 83.13 in (211.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 146 lbs (66.2 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 24 in (61 cm) |
| Usable Height | 77.13 in (195.9 cm) |
All other specifications 13
| Width | 22 in (55.9 cm) |
| Federal Ops Country of Origin | USA |
| Gangable | Yes |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| Seismic Rated | Yes |
| Side Panel | No |
| TAA Compliant | YesYes |
| UPC | 656747011443 |
| ASCE Number | 7-10 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
44 RU Vented Front Door for ERK, MRK and WRK Racks, 64% Open
LVFD-44$792.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
44 RU Rackrail 10-32 for MRK/VRK Series
MV-RR44$225.00

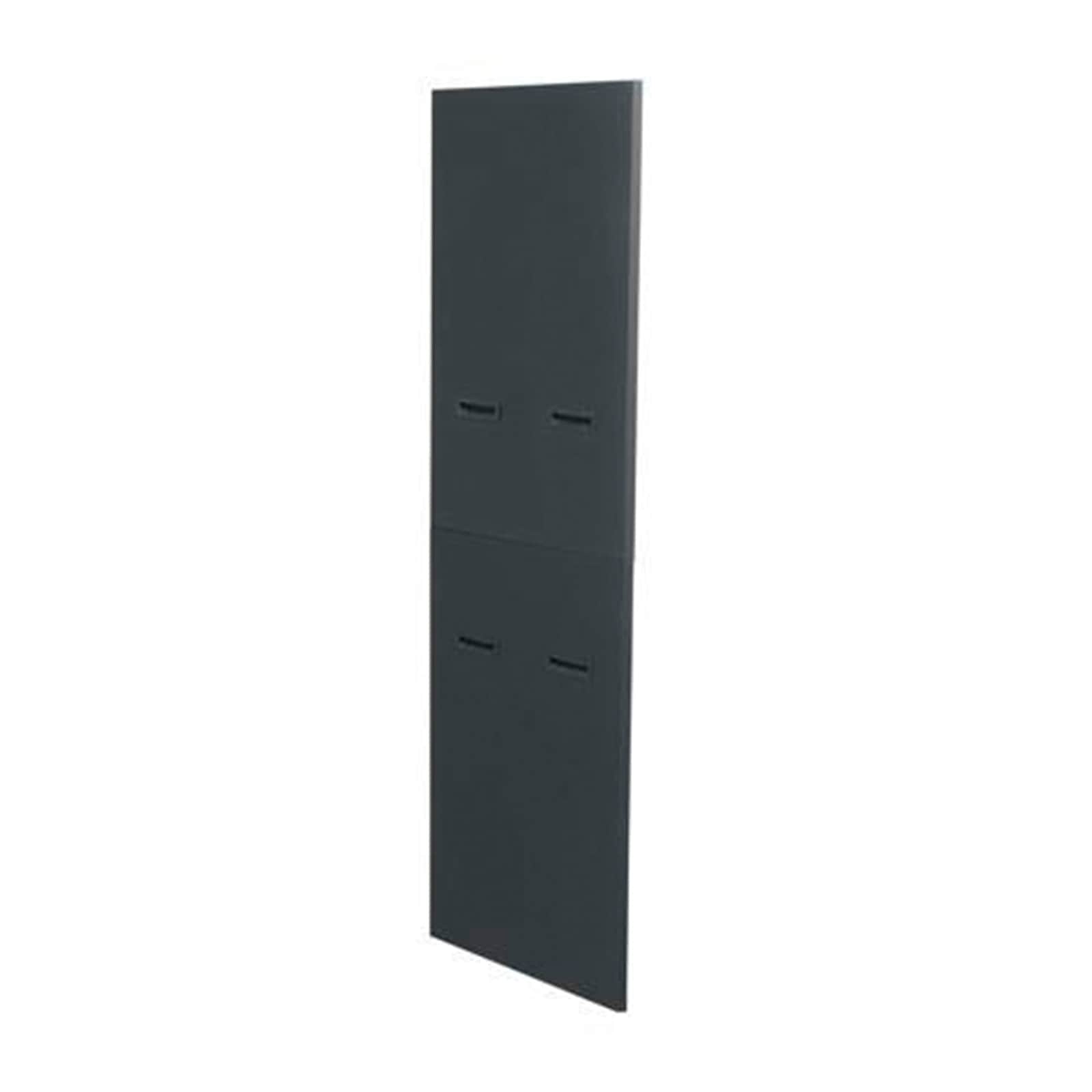

44 RU Side Panels for 26-27 Inch Deep MRK or WRK Racks
SPN-44-267$835.20
44 RU Plexi Front Door for ERK, MRK and WRK Racks
PFD-44$989.10
Leveling Feet
LF$40.50
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
1 RU Brush Grommet Panel
BR1$86.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the depth of the MRK-4426LRD and its usable space?
The total depth is 26 in (66 cm), which provides a usable depth of 24 in (61 cm) for your equipment.
Is the MRK-4426LRD seismic rated for professional installs?
Yes, it is seismic rated with an ASCE 7-10 rating and a seismic load capacity of 1050 lbs (476.3 kg).
What accessories are needed to complete this rack enclosure?
This SKU is a frame-only configuration. To complete the enclosure, you may need side panels (SPN-44-267), a front door (LVFD-44 or PFD-44), and leveling feet (LF).
How does this compare to the BGR series racks?
While the MRK series is a rugged, gangable workhorse, BGR series racks offer higher RU counts and higher weight capacities, and are compatible with Lever Lock™ and tool-free accessories.
What is the total weight capacity for the MRK-4426LRD?
This rack has a UL load capacity of 2500 lbs (1,134 kg).
