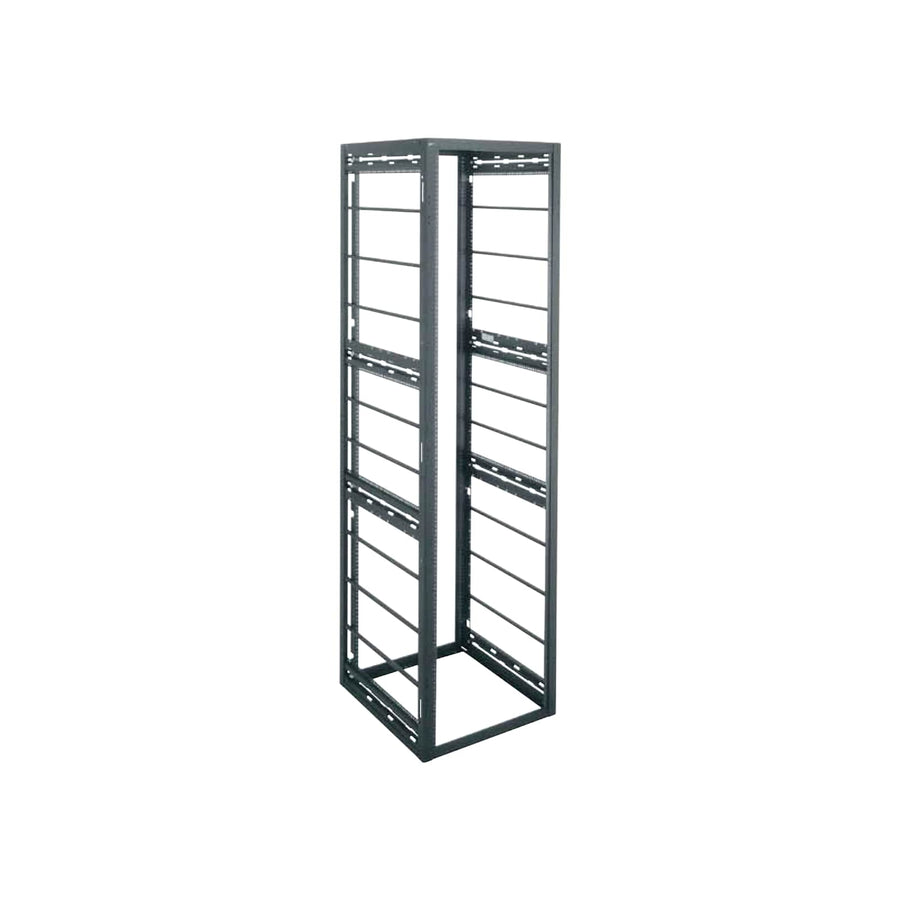

44 RU GRK Series Broadcast Rack, 30 Inches Deep
44 RU broadcast rack, 30 inches deep, 1,500 lbs capacity, TAA compliant, UL listed
The Middle Atlantic GRK-44-30HLRD is a 44 RU welded gangable broadcast rack designed for high-density video environments. This 30 in (76.2 cm) deep floor-standing rack features a robust construction with a solid frame top and bottom to support heavy equipment loads. It offers a 1,500 lbs (680.4 kg) weight capacity, making it suitable for large-scale broadcast installs. For cable management, the unit includes horizontal bars for tie-and-slide lacing and allows for straight vertical cable runs through the fully open top and bottom. The top and bottom openings feature finished edges to prevent cable chafing and improve appearance. This rack is TAA compliant and is UL listed (UL-2416/NWIN). Integrated grounding and bonding studs are provided at the top and bottom for system safety. This series is optimized for narrow multi-bay configurations where high-density cable bundles are required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 30 in (76.2 cm) |
| Height | 80 in (203.2 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 135 lbs (61.2 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747062391 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
100 CFM Fan Panel with Remote Thermistor, 27dB
UQFP-4RT$410.40
FTA Series 4 Inch DC Fan
FT-FAN$90.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
PDT Low Profile Vertical Power Strip, 20 Outlet, 20A
PDT-2020C-NS$406.80
1 RU Fan Tray, 3 Fans, 207 CFM
FTA-3$556.20
1 RU Panel Gooseneck Light
LT-GN-PNL$180.00
44RU Solid Front/Rear Door for GRK
GFRD-44$446.40
44 RU Steel Lace Bar, 1 Inch - 6 Piece
LACE-G44-1P

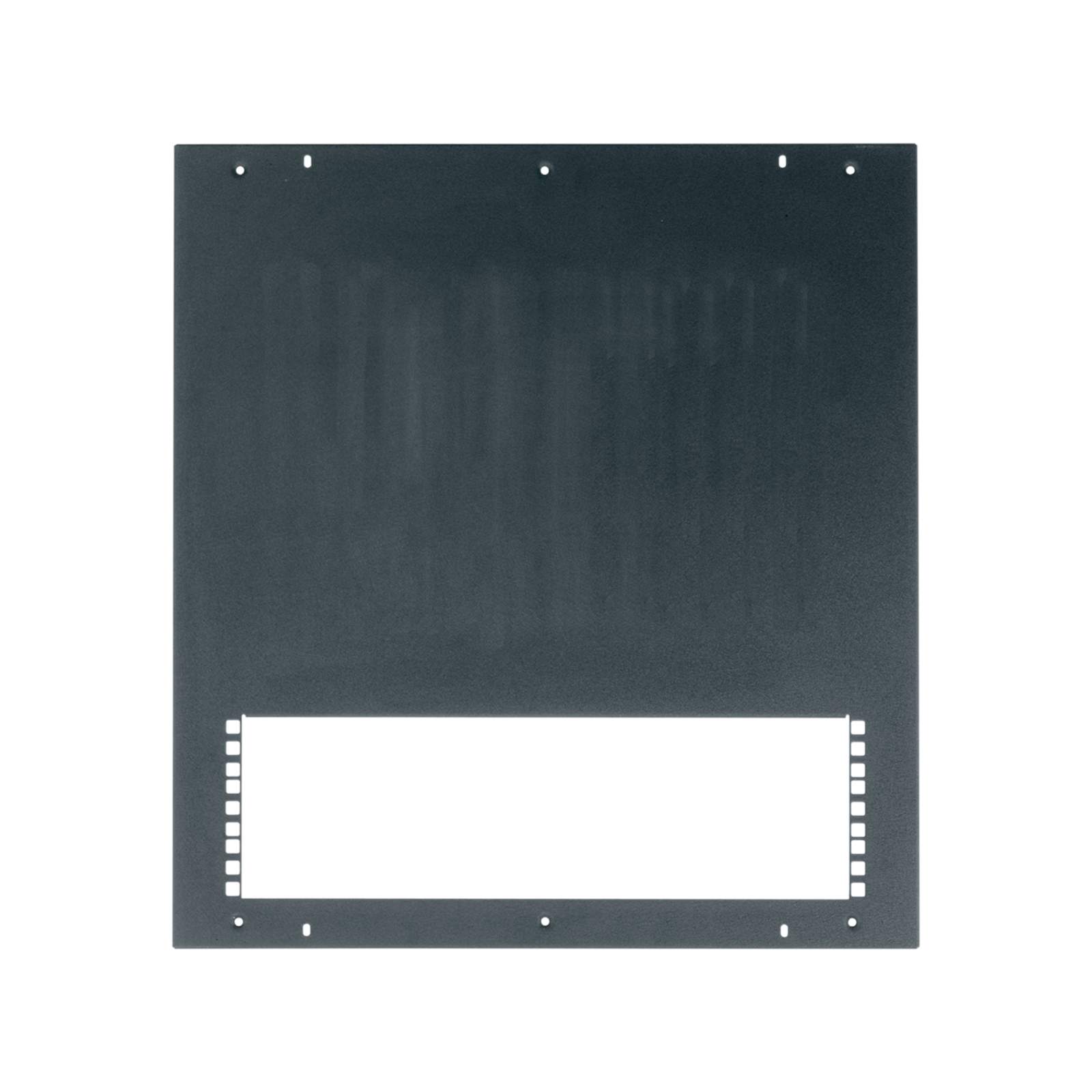

Solid Top for 30 Inch Deep GRK Racks
GRK-ST30$175.50
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will this GRK rack work for high-density video installs?
Yes, the GRK series is optimized for narrow multi-bay racks requiring high-density video cable bundles. It includes horizontal lacing bars and open top/bottom sections for vertical runs.
What is the weight capacity of the GRK-44-30HLRD?
This rack is rated for a 1,500 lbs (680.4 kg) weight capacity. The design includes a solid frame at the top and bottom for increased structural integrity.
What accessories are compatible with this 44 RU rack?
The rack supports various accessories including the 100 CFM Fan Panel (QTFP-2), Select Series PDUs (RLNK-215), and 44 RU Copper Bus Bars (BB-44-1). You can also add a solid GRK top (GRK-ST30).
Is the GRK-44-30HLRD TAA compliant?
Yes, this model is TAA compliant and carries UL listed and cULus certifications.
How are the cables managed and protected in this rack?
It features horizontal lacing bars for organized cable management and finished edges at the top and bottom openings to prevent cable chafing during installation and servicing.
