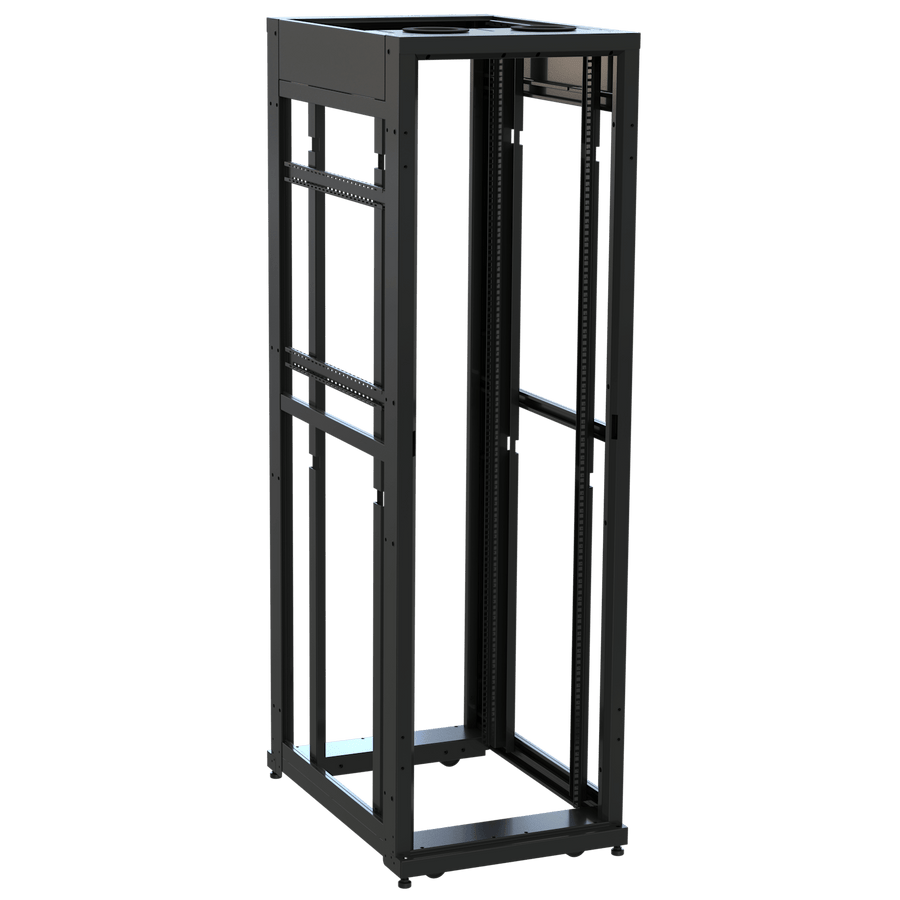

42 RU SNE Series Rack Frame, 36 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
42 RU seismic rated rack frame, 36" deep and 24" wide, with cage nut rackrails for security and network infrastructure
The Middle Atlantic SNE24F-CN-4236 is a 42 RU SNE Series rack frame designed specifically for high-performance security and network deployments. Measuring 36 in (91.4 cm) in depth and 24.04 in (61.1 cm) in width, this frame provides a 32.48 in (82.5 cm) usable depth and a 73.5 in (186.7 cm) usable height. This TAA compliant and UL listed frame is seismic rated, making it suitable for demanding environments. It features a black texture powder coat finish and includes two pairs of cage nut rackrails to facilitate hardware installation. The frame is gangable for scalable system expansion and comes equipped with four leveling feet and four casters for mobility and stability. Built for both unconditioned and conditioned environments, the SNE series supports various thermal options through active or passive ventilation. This frame is the ideal foundation for IP, analog, digital, or hybrid system enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 199 lbs (90.3 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 32.48 in (82.5 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238222 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Single LED Work Light
LT-CABUTL-SINGLE$261.00
1 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-1$45.90
Lace Bar 4 Inch Offset, 90° Round Bend - 10 Pieces
LBP-4R90$145.80
24 Inch Wide Solid Top for SNE Rack
SNE24-ST$103.50
2 RU Flat Blank Rack Panel, Aluminum
PHBL-2$23.40
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Questions about this part
Will this frame work for my network or security equipment?
Yes, the SNE24F-CN-4236 is purpose-built for IP networking, analog, digital, and hybrid security systems.
What is the maximum weight capacity for this rack frame?
This SNE Series frame has a UL load capacity of 3000 lbs (1,360.8 kg).
Is this rack frame suitable for raised floor installations?
The frame is raised-floor ready when used with the appropriate seismic or standard riser bases.
What accessories are needed to complete my enclosure?
This is a frame-only system; you may need additional components like the SNE24-ST 24 inch wide solid top or VTP-1 rack vent panels.
How do I differentiate this from the WMRK-4236?
The SNE24F-CN-4236 is being discontinued on December 1, 2026; Middle Atlantic recommends the WMRK-4236 as the replacement model.
