40 RU Cable-Entry Rear Door for ERK Racks
40 RU cable-entry rear door for ERK series racks, featuring seismic rating and ventilation for cooling fans

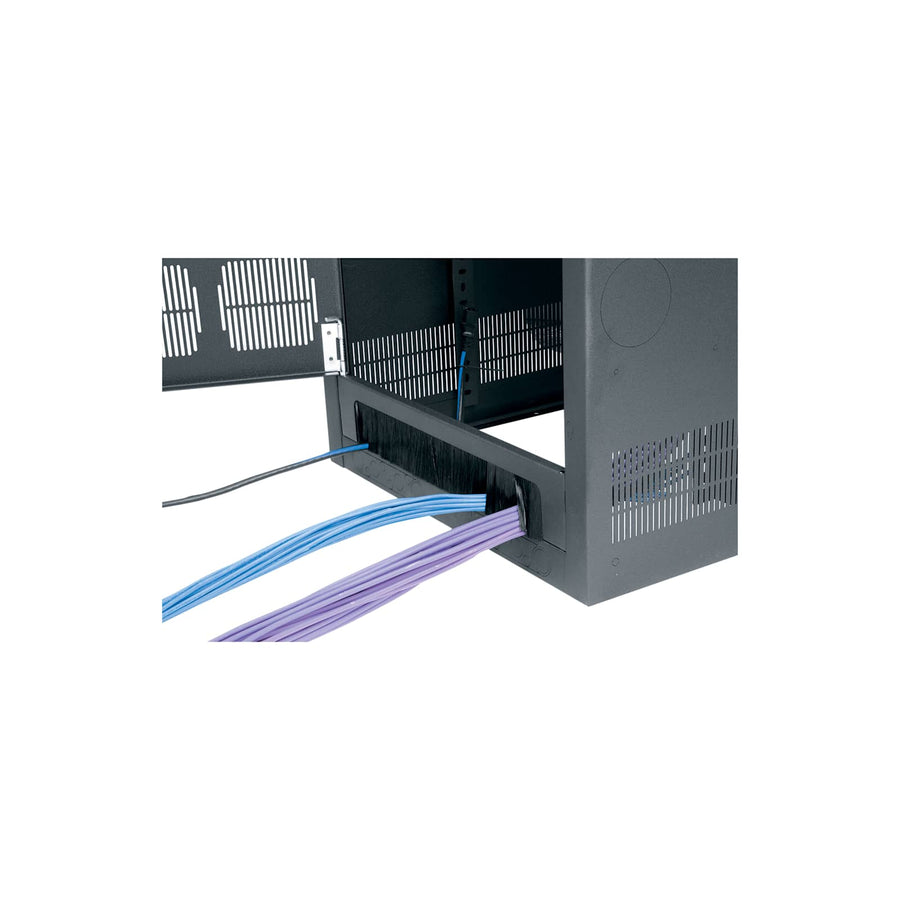

The Middle Atlantic ERK-RDC40 is a 40 RU cable-entry rear door specifically engineered for use with the ERK Base Series racks. This steel construction door is designed to provide a large cable passage, allowing installers easy access to equipment wiring without the need for time-consuming fishing. For enhanced cable management, a brush grommet can be installed at either the top or the bottom of the rear door. This vented door design also provides compatibility with optional cooling fan kits, such as the KO-AWFP2, to manage airflow within the enclosure. For projects requiring high structural integrity, this door is seismic rated and features a finish that matches the base ERK rack series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.36 in (3.5 cm) |
| Height | 67.41 in (171.2 cm) |
| Rack Units | 40 RU |
| Shipping Weight | 40 lbs (18.1 kg) |
| Width | 20.3 in (51.6 cm) |
| Base Series | ERK |
| Seismic Rated | Yes |
| UPC | 656747253294 |
Resources
You'll need these with it
Questions about this part
Will this door fit my ERK rack?
The ERK-RDC40 is designed specifically for the ERK Base Series 40 RU racks.
Can I add cooling to this door?
Yes, this is a vented door that accepts optional cooling fan kits like the KO-AWFP2 or KO-AWFP2 (190 CFM).
Does this door include cable management accessories?
The door is designed to accept a brush grommet, which can be installed at either the top or the bottom of the unit.
What is the difference between this and the other ERK-RDC doors?
This SKU is the 40 RU version; other versions in the series vary by rack unit height.
Is this door suitable for seismic-rated installations?
Yes, this door is officially seismic rated for professional installations.
