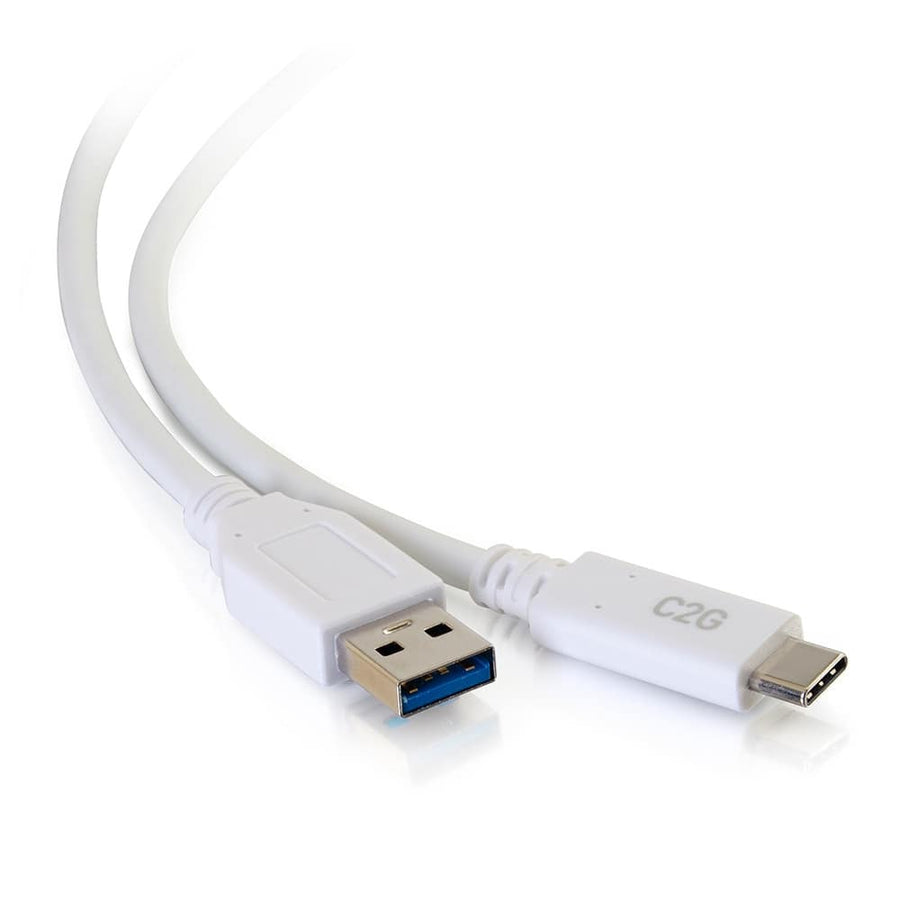

3ft (0.9m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - White
3ft USB-C to USB-A 3.2 Gen 1 cable for 5Gbps data transfer and 3A charging, finished in white
The C2G CG28835 is a 3ft (0.9m) USB-C to USB-A 3.2 Gen 1 (5Gbps) Male to Male cable designed to bridge the gap between modern USB-C enabled devices and standard USB-A ports. This white cable supports bidirectional signal transmission, making it suitable for both data transfer and high-speed charging. It supports a 3A charging output, ensuring that USB-C equipped laptops, smartphones, or tablets can maintain sufficient power during active use. The cable utilizes a 30AWG wire gauge and features a PVC jacket with a VW-1 rating for improved safety. The USB-C connector employs a symmetrical, reversible design, allowing for immediate connection without orientation concerns. This cable is rated for operating temperatures between 32° to 122°F (0° to 50°C) and has a bend radius of 1.89 in (48 mm). For installation environments, the cable diameter is 0.19 in (4.8 mm). This SKU is available in a 6ft (1.8m) length under part number CG28836.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 3 Amp |
| Bend Radius | 1.89 in (48 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
All other specifications 20
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 85% RH (Non-Condensing) |
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | White |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB-A Male(1) USB-A Male |
| Jacket Rating | VW-1 |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288350 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6ft (1.8m) USB-C® to USB-A 3.2 Gen 1 (5Gbps) Cable M/M - White
CG28836$26.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
Will this cable work for high-speed data transfer?
Yes, the CG28835 supports USB 3.2 Gen 1 speeds, providing data transfer rates of up to 5Gbps.
Can I use this cable to charge my USB-C mobile devices?
Yes, this cable supports a 3A charging output, making it suitable for charging smartphones, tablets, and laptops.
What is the maximum length available for this cable series?
This specific SKU is 3ft (0.9m), but a 6ft (1.8m) version is available as part number CG28836.
Is this cable TAA compliant?
No, the CG28835 is not TAA compliant, but it is USB IF Certified and compliant with RoHS and REACH standards.
What is the difference between this and the CG28836?
The primary difference is the length; CG28835 is a 3ft (0.9m) cable, while CG28836 is a 6ft (1.8m) cable.
