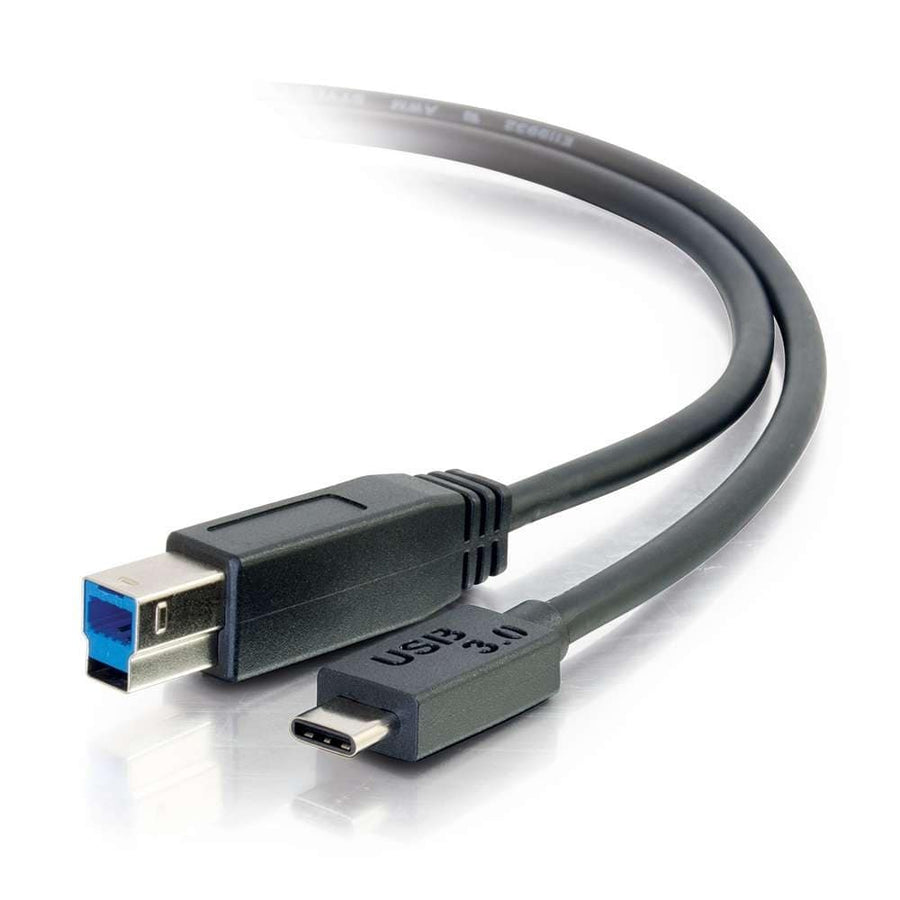

3ft (0.9m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
3ft USB 3.0 (USB 3.2 Gen 1) USB-C Male to USB-B Male cable supporting 5Gbps data transfer and 1 Amp power delivery
The C2G CG28865 is a 3ft (0.9m) USB 3.0 (USB 3.2 Gen 1) cable designed to connect devices featuring a USB-C port to peripherals equipped with a USB Type-B port. It facilitates high-speed communication for hardware such as external hard drives, USB hubs, and other USB-B interface devices. This cable supports data transfer rates up to 5Gbps and provides power for device operation and charging at 5 volts and 1 Amp. The USB-C connector features a symmetrical design for easy orientation and is rated for up to 10,000 connection cycles. This specific model is intended for USB 3.0 (USB 3.2 Gen 1) communication and is not compatible with USB 3.2 Gen 2 features. It is backwards compatible with older USB 3.0 devices and features a 0.17 in (4.2 mm) cable diameter with a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Diameter | 0.17 in (4.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Humidity Max | 80% RH |
| Operating Humidity Min | 20% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.09 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 32 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB 3.0 B Male(1) USB 3.0 B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288657 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6ft (1.8m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
CG28866$29.99
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
0.5ft (0.15m) USB-C® Female to USB-A Male SuperSpeed USB 5Gbps Adapter Converter
CG54428$22.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
C2G54488$189.99
USB-C® Male to USB-A Female Adapter Converter - USB 3.2 Gen 1 (5Gbps)
C2G29515$17.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
USB-C® 12-in-1 Triple Display Docking Station with HDMI®, DisplayPort™, Ethernet, USB (TAA Compliant)
C2G54535Discontinued
Questions about this part
What is the data transfer speed of the CG28865?
This cable supports USB 3.0 (USB 3.2 Gen 1) communication with data transfer rates up to 5Gbps.
Will this cable work for charging my device?
Yes, the cable supports 5 volts and 1 Amp for device operation and charging.
Is this cable compatible with USB 3.2 Gen 2?
No, this cable is designed specifically for USB 3.0 (USB 3.2 Gen 1) and cannot support USB 3.2 Gen 2 communication features.
What is the difference between the CG28865 and the CG28866?
The CG28865 is a 3ft (0.9m) length, whereas the CG28866 is the 6ft (1.8m) version of this same cable.
What is the connector type for this USB cable?
The cable features a USB-C Male connector on one end and a USB 3.0 B Male connector on the other.
