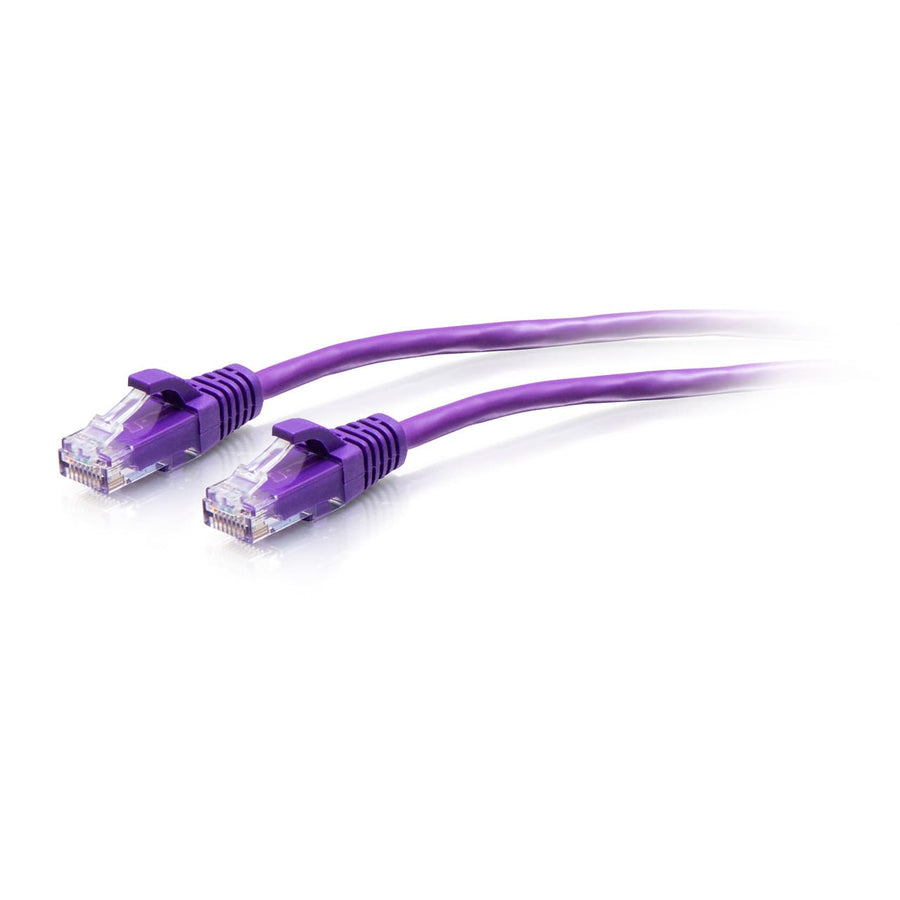

3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Purple
Purple 3ft (0.9m) Cat6a slim UTP patch cable with 28AWG conductors for high-density network environments
The C2G30189 is a 3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable finished in purple. Designed specifically for high-density cabling environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to significantly reduce the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow in tight spaces and provides greater flexibility for difficult installations. The cable supports data transfer rates up to 10 GBPS and is suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. Each cable features gold-plated RJ-45 male connectors protected by a PVC snagless boot to prevent damage during installation and provide strain relief. This series meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, ensuring reliable Cat6a performance for critical network infrastructure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301899 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum data rate for the C2G30189?
The C2G30189 supports data transfer rates up to 10 GBPS, meeting Cat6a performance standards.
Is this cable suitable for high-density datacenter use?
Yes, the 28AWG slim construction results in a 0.19 in (4.8 mm) diameter, which increases airflow and flexibility in dense rack environments.
Will this Cat6a cable work with PoE or VoIP setups?
Yes, the Cat6a technology and 28AWG conductors make this cable suitable for Power over Ethernet (PoE) and VoIP applications.
What do I need to complete a Cat6a installation with this cable?
While this is a patch cable, compatible components include the WP246A 24-Port Rack Mount Patch Panel or various Cat6a Quick Connect RJ45 Keystone Inserts.
What certifications does this patch cable hold?
This cable is compliant with CE, RoHS, REACH, and TAA requirements, and is compliant with NDAA 889.
