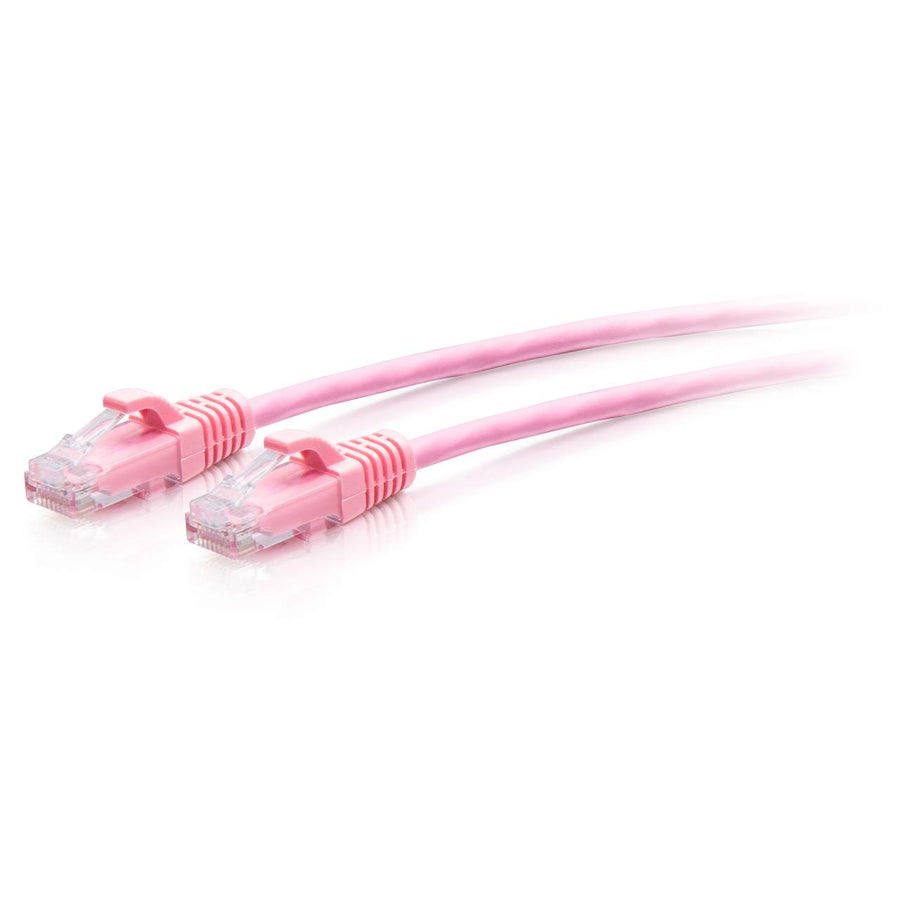

3ft (0.9m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Pink
Pink Cat6a slim patch cable, 3 ft (0.9 m) length, 28AWG construction for high-density networking applications
The C2G30196 is a 3 ft (0.9 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in pink, engineered specifically for high-density cabling environments. Designed for use in large conference rooms and data centers, this cable utilizes 28AWG stranded copper conductors to significantly reduce the cable diameter to 0.19 in (4.8 mm). This slim profile increases airflow within crowded enclosures and provides the flexibility required for tight-space installations where standard Cat6 cables may be too bulky. This Cat6a cable supports data transfer rates up to 10 GBPS, making it a reliable choice for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. Each cable features snagless, slim, and booted RJ-45 male connectors with gold-plated contacts to ensure secure connections. The PVC jacket and hood provide durability for standard non-rated environments. This series is compliant with NDAA 889 and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. The pink color allows for easy identification and color-coding within complex network infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.13 lbs (0.1 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301967 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
What is the maximum data rate for the C2G30196 cable?
The C2G30196 supports data transfer rates of up to 10 GBPS, making it suitable for high-speed networking and HDBaseT applications.
Will this Cat6a cable work for PoE or VoIP setups?
Yes, the Cat6a technology and 28AWG construction make this cable ideal for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) environments.
How does the slim profile of this cable benefit high-density installs?
With a 0.19 in (4.8 mm) diameter, the slim 28AWG design provides greater flexibility in tight spaces and allows for increased airflow compared to standard Cat6 cables.
What is the difference between this cable and a standard Cat6 cable?
This Cat6a cable offers double the minimum bandwidth of Cat6 cables and provides significantly higher performance than Cat5e for modern network demands.
Which documents are available for technical submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet and the C2G Ethernet Patch Cable Matrix via the product's documentation links.
