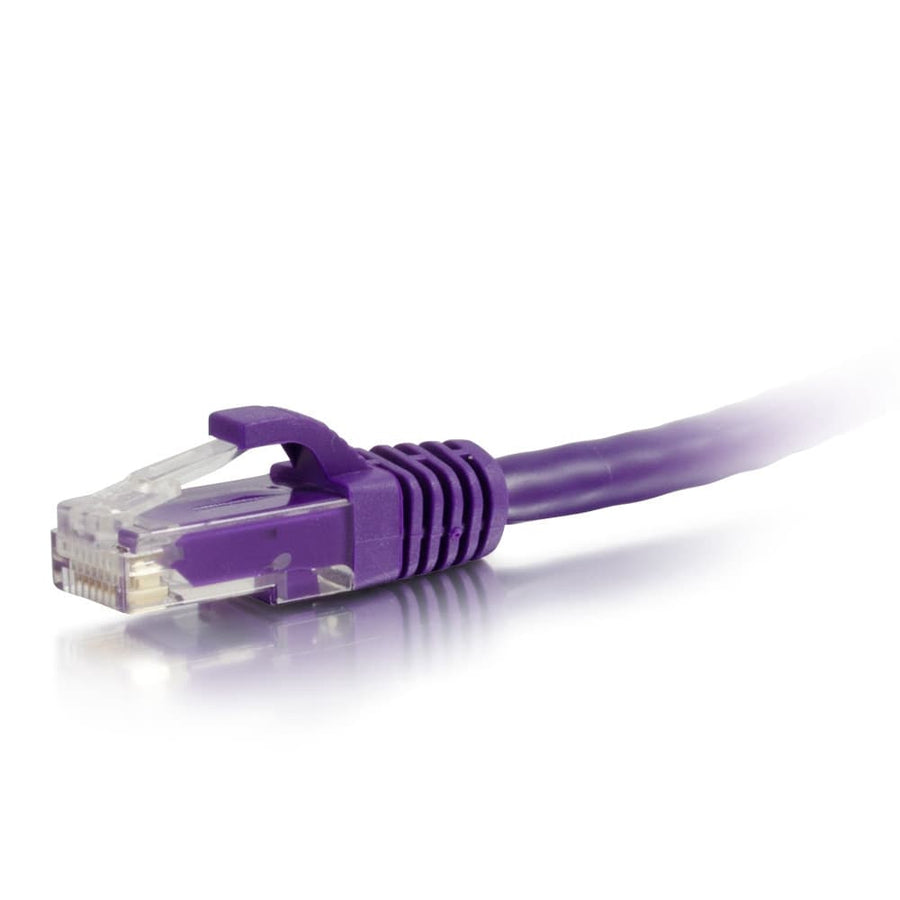

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
3ft Cat6a snagless unshielded UTP patch cable in purple, tested to ANSI/TIA 568 C.2 for 10GbE performance
The CG50819 is a 3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in purple. This cable is designed to support 10GBase-T equipment, making it suitable for use with network adapters, switches, routers, hubs, and patch panels. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, facilitating 10 Gigabit data transmission over a 4-pair copper medium. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable features a PVC jacket and PVC connector hoods. The snagless, booted connector design is specifically engineered for high-density switch applications where space is limited. The purple jacket allows for easy color-coding within a complex network installation. For ease of management, each cable includes an individual length label. This series is available in various lengths and colors to meet specific deployment needs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508199 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this CG50819 cable support 10 Gigabit speeds?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission.
What is the wiring scheme for the CG50819?
The CG50819 uses the 568B wiring scheme for its RJ-45 connections.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood design is intended for high-density switch applications to prevent snagging and facilitate installation.
What other components are compatible with Cat6a installations?
This cable is compatible with accessories such as the WP246A 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
What are the temperature and material specifications?
The cable has a temperature rating of 75°C and features a PVC jacket and PVC connector hoods.
