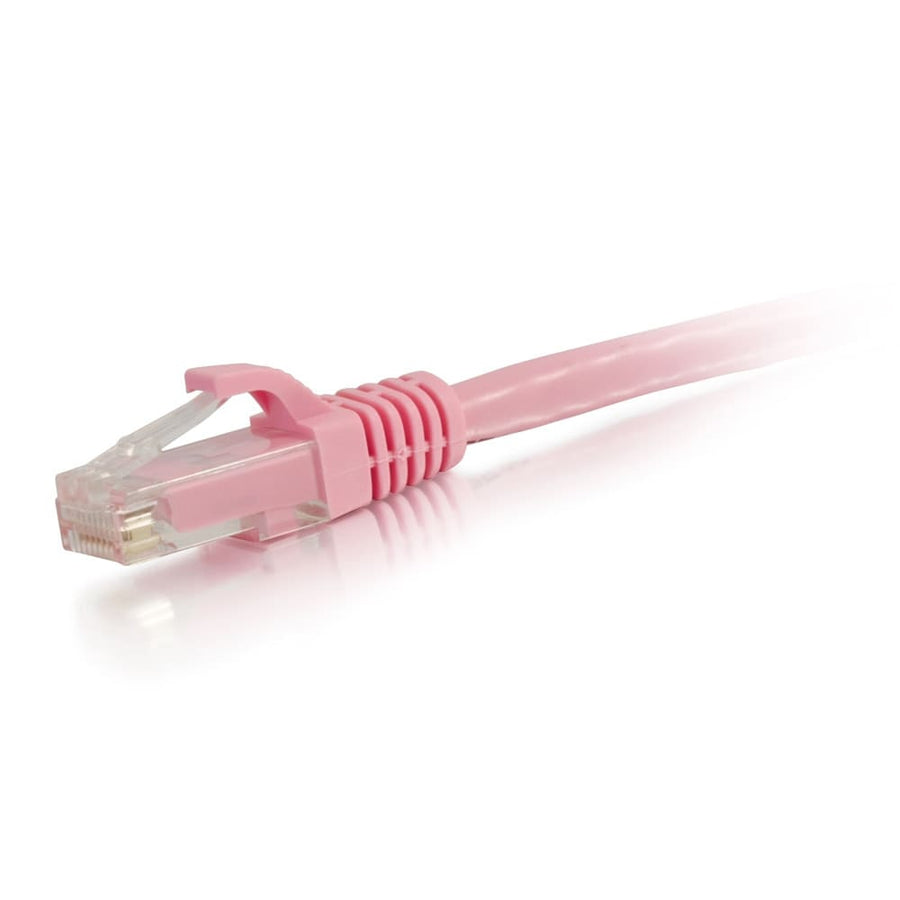

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
Pink Cat6a snagless UTP patch cable, 3 ft (0.9 m) length, featuring stranded copper conductors and 26AWG wire gauge
The CG50857 is a 3 ft (0.9 m) Pink Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for high-performance data environments. This cable is built to support 10GBase-T ports and equipment, making it suitable for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. By utilizing a 4-pair copper conductor design, it enables 10 Gigabit data transmission over distances up to 100 meters, addressing the limitations of standard Cat6 cabling in 10 Gigabit Ethernet applications. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring improved alien crosstalk performance. The construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. For ease of identification in high-density environments, the cable features a pink color-coding finish and includes an individual length label on each unit. The snagless, booted RJ-45 male connectors are designed to prevent accidental disconnection in dense switch applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508571 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with my 10GbE switch?
Yes, the CG50857 is designed for 10GBase-T ports, including switches, routers, and hubs, supporting 10 Gigabit data transmission.
What is the wiring scheme for this CG50857 patch cable?
This patch cable uses the 568B wiring scheme and features 26AWG stranded copper conductors.
Is the CG50857 suitable for high-density rack installations?
Yes, the snagless, booted RJ-45 connectors are specifically designed to simplify management in high-density switch and patch panel applications.
What is the maximum distance for 10 Gigabit transmission?
This Cat6a cable enables 10 Gigabit data transmission over 4-pair copper cable for connections up to 100 meters.
Does this cable include any specific documentation for submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed category and performance information.
