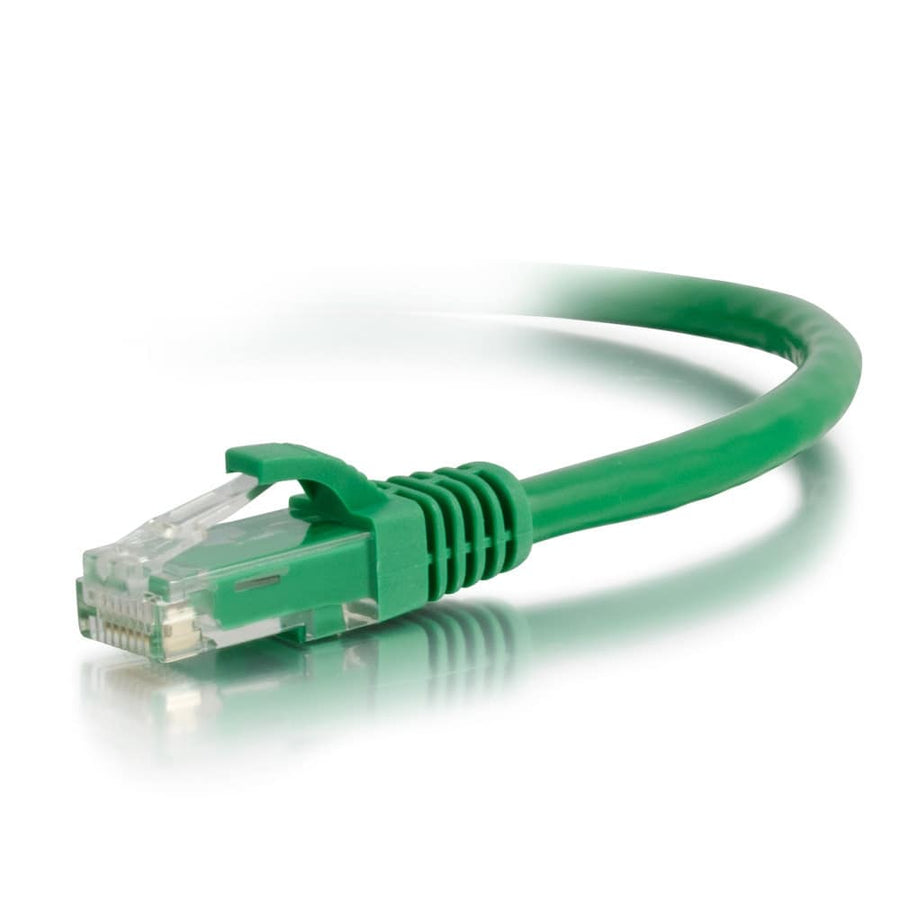

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
Green 3ft Cat6a snagless UTP patch cable for 10GBase-T high-density network environments
The CG50781 is a 3ft (0.9m) green Cat6a snagless UTP patch cable designed to support 10GBase-T ports and equipment. It facilitates 10 Gigabit data transmission over 4-pair copper cabling, enabling connections up to 100 meters. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to older Cat6 cabling systems. Built with 26AWG bare copper stranded conductors and HDPE insulation, this cable is rated for temperatures up to 75°C. The snagless PVC connector hood is specifically designed for high-density switch applications to prevent accidental disconnection. Each cable features an individual length label for quick identification during installation. This unshielded UTP cable is an essential component for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels in modern high-speed network infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507819 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Trio Combo Module with Cat6 Data
CO1166$119.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work with my 10GBase-T switch?
Yes, the CG50781 is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission over 4-pair copper cabling.
What is the wiring scheme for the CG50781?
This patch cable follows the 568B wiring scheme and is a 4-pair stranded UTP cable.
Is the CG50781 suitable for high-density patch panels?
The snagless connector design is ideal for high-density applications, making it easy to manage connections in crowded switches or patch panels.
What testing standards does this cable meet?
The CG50781 is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements for reliable performance.
What temperature rating is this cable rated for?
This Cat6a patch cable has a temperature rating of up to 75°C.
