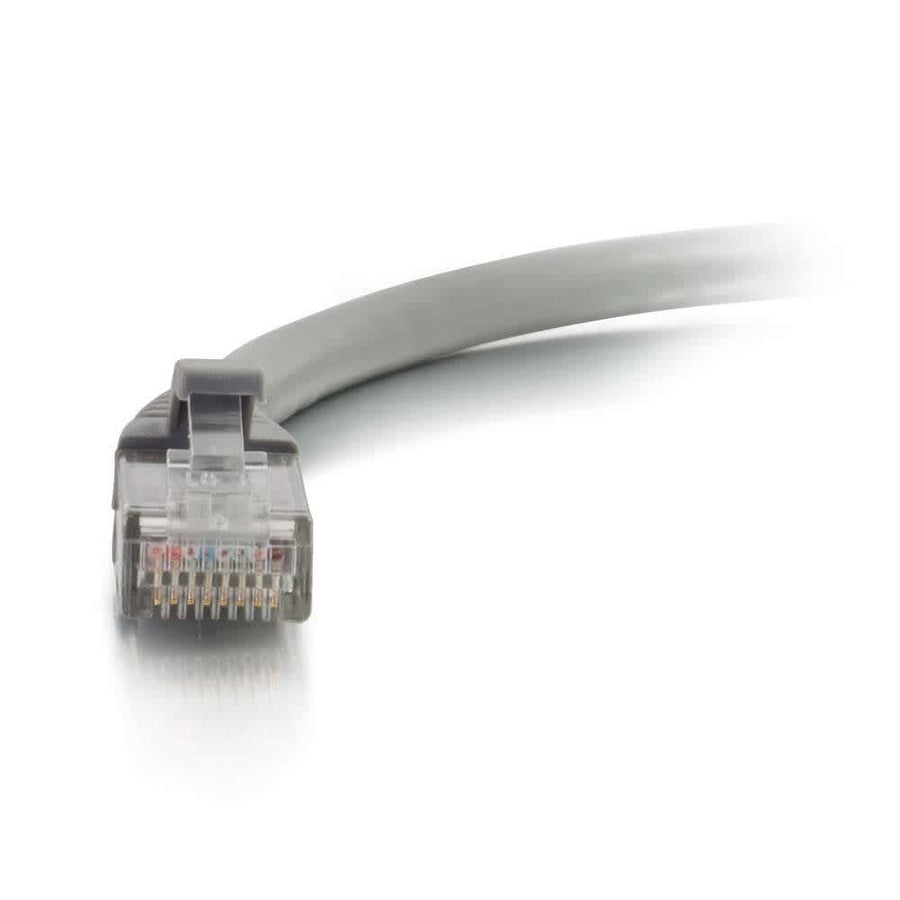

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Gray
3ft Cat6a Unshielded UTP patch cable, gray snagless design, supporting 10 Gigabit data transmission for high-density network environments
The C2G CG00657 is a 3ft (0.9m) Cat6a Unshielded UTP Ethernet network patch cable designed for 10GBase-T ports and professional networking equipment. This cable supports 10 Gigabit data transmission over a 4 pair copper cable, facilitating connections up to 100 meters in standard deployments. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for hubs, switches, routers, and patch panels. Built with 26AWG bare copper stranded conductors and HDPE insulation, this cable is engineered to provide improved alien cross talk performance compared to standard cabling. The snagless PVC connector hood is specifically designed to protect the boot in high-density switch applications, preventing accidental damage during installation or maintenance. For organized network management, each cable features an individual length label for easy identification within a rack or patch panel.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.11 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006572 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Yes, the CG00657 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 100 meters in compliant channel configurations.
Yes, the CG00657 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 100 meters in compliant channel configurations.
Is this patch cable suitable for high-density network switches?
Yes, the snagless connector design is specifically intended for use in high-density switch applications to protect the boot and ease management.
What is the wiring scheme for the CG00657?
This patch cable utilizes the 568B wiring scheme and features a 4 pair, 26AWG stranded copper conductor configuration.
What documentation is available for verifying this cable's performance?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed category performance and application information.
What other components are compatible with Cat6a Keystone installations?
This cable is compatible with various Cat6a accessories, including the WP346AOR Orange, WP346ABK Black, or WP346AGY Gray Quick Connect RJ45 Keystone Inserts.
