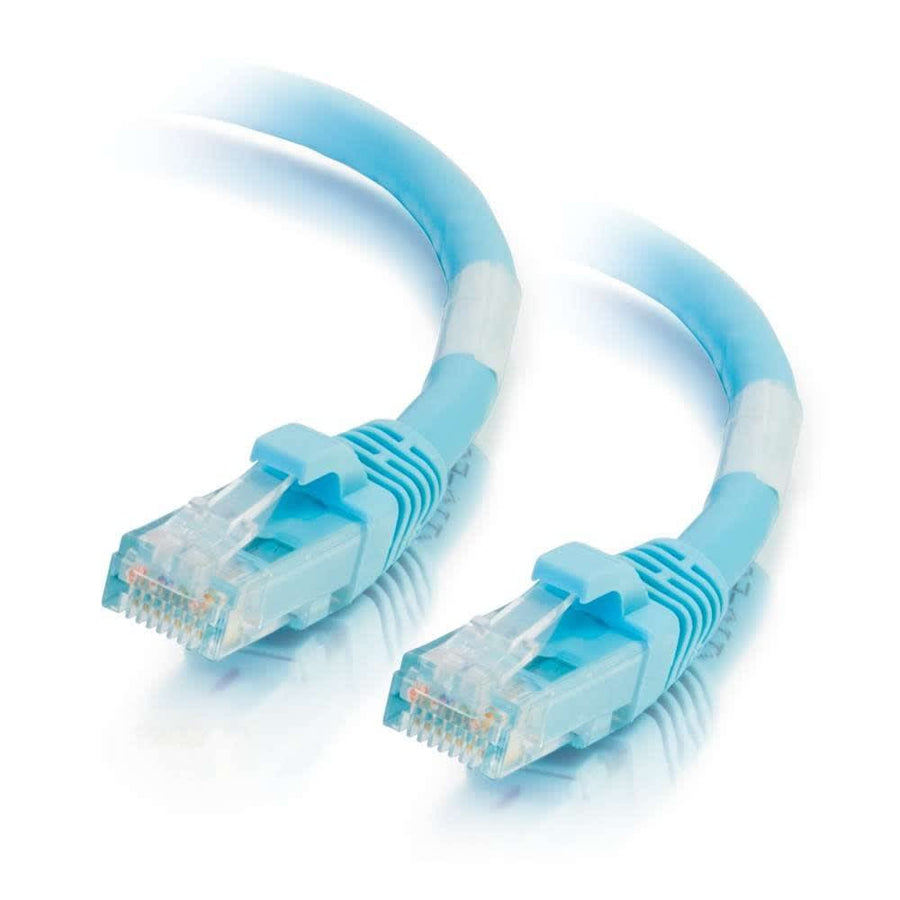

3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
3 ft (0.9 m) Cat6a Snagless UTP patch cable in Aqua, supporting 10Gbase-T and 10 Gigabit data transmission
The C2G CG00759 is a 3 ft (0.9 m) Cat6a Snagless UTP Ethernet patch cable designed for 10Gbase-T ports and high-speed network equipment. This Unshielded Twisted Pair (UTP) cable supports 10 Gigabit data transmission over 4-pair copper cabling, facilitating connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to legacy Cat6 systems. This aqua-colored cable features stranded copper conductors with a 26AWG (7/0.16) profile and HDPE insulation. The snagless, booted RJ-45 male connectors are ideal for high-density switch applications where cable strain relief is critical. For easy identification in complex rack environments, each individual cable features a length label. This patch cable is suitable for use with switches, routers, hubs, and patch panels, including the WP246A 24-Port Rack Mount Patch Panel.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007593 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the C2G CG00759 work with my 10GbE switches and routers?
Yes, this Cat6a cable is designed for 10Gbase-T ports and equipment, including routers, hubs, and switches, supporting 10 Gigabit transmission.
What is the maximum distance this Cat6a patch cable supports?
This cable supports 10 Gigabit data transmission over a 4-pair copper cable for connections up to 100 meters.
Is this cable suitable for high-density rack installations?
The snagless, booted RJ-45 male connectors are specifically designed to be ideal for high-density switch applications.
What testing standards does this patch cable meet?
The CG00759 is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
What accessories are compatible with this C2G cable?
It is compatible with various accessories, such as the WP246A Cat6a 24-Port Rack Mount Patch Panel and the WP346A series Keystone Inserts.
