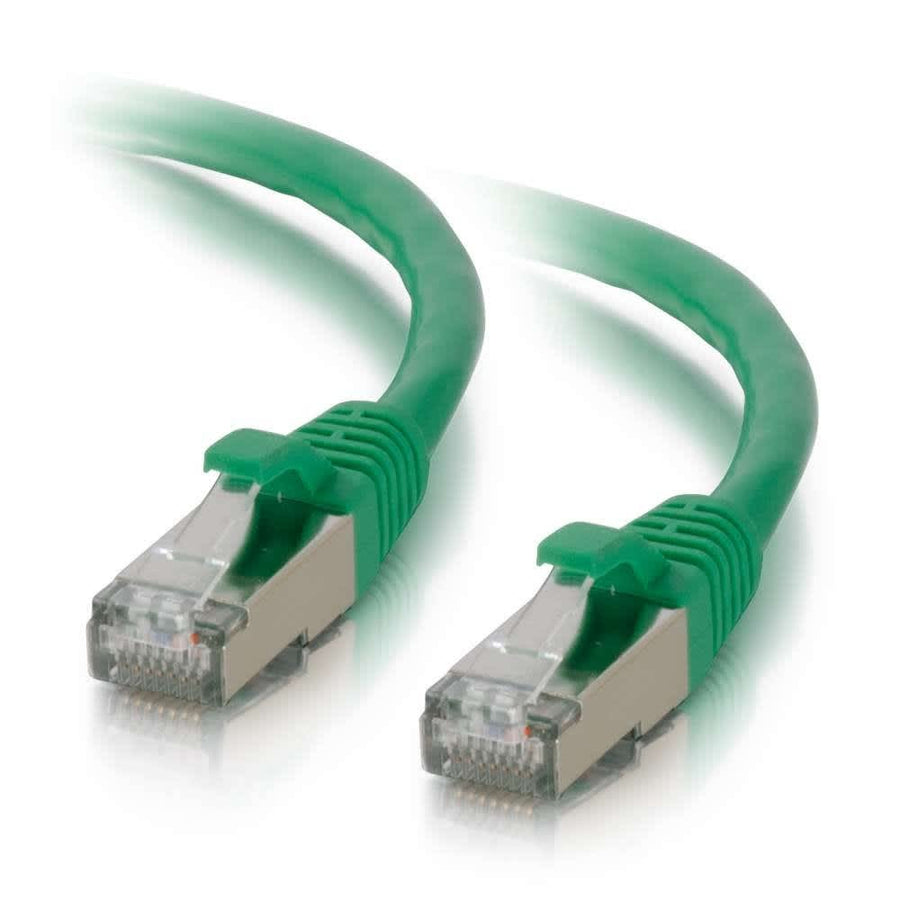

3ft (0.9m) Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Green
3ft Cat6 STP shielded snagless patch cable in green, featuring 26AWG stranded copper conductors and T568B wiring
The C2G CG00827 is a 3 ft (0.9 m) Cat6 STP shielded patch cable designed to protect high-speed networks from electromagnetic interference and noise. This snagless cable is ideal for bandwidth-intensive voice, data, and video distribution applications where minimizing impedance and structural return loss (SRL) is critical. It is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. Each cable features 26AWG stranded bare copper conductors, and the individual pairs are bonded together to maintain twist-spacing from the connector to the termination point. This construction helps minimize Near-End Crosstalk (NEXT) levels. For ease of installation and management, each cable includes an individual length label and is finished in green for color-coded network organization. The cable features PVC jacket material and PVC connector hoods, with a 0.24 in (6.2 mm) diameter. It utilizes a T568B wiring scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat6 |
All other specifications 15
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120008279 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
1-Port Keystone Jack Surface Mount Box - White
CG03831$4.99
LANtest Pro Remote Network Cable Tester with Tone and Probe
CG26847$546.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
6-Port Surface Mount Box
WP3506WH$6.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6 cable work for high-bandwidth video and data applications?
Yes, the CG00827 is designed for bandwidth-intensive applications and helps reduce impedance and structural return loss (SRL).
What is the wiring standard for the C2G CG00827?
This patch cable follows the T568B wiring scheme and uses 26AWG stranded copper conductors.
Does this cable provide protection against electromagnetic interference?
Yes, the STP (Shielded Twisted Pair) construction is specifically designed to protect high-speed networks from noise and EMI.
How can I identify the length of this cable in a crowded rack?
Each individual cable features a length label to ensure easy identification during installation and management.
What certifications does this C2G patch cable carry?
The CG00827 is CE, REACH, and RoHS compliant and is tested to ANSI/TIA 568 C.2 Cat6 component standards.
