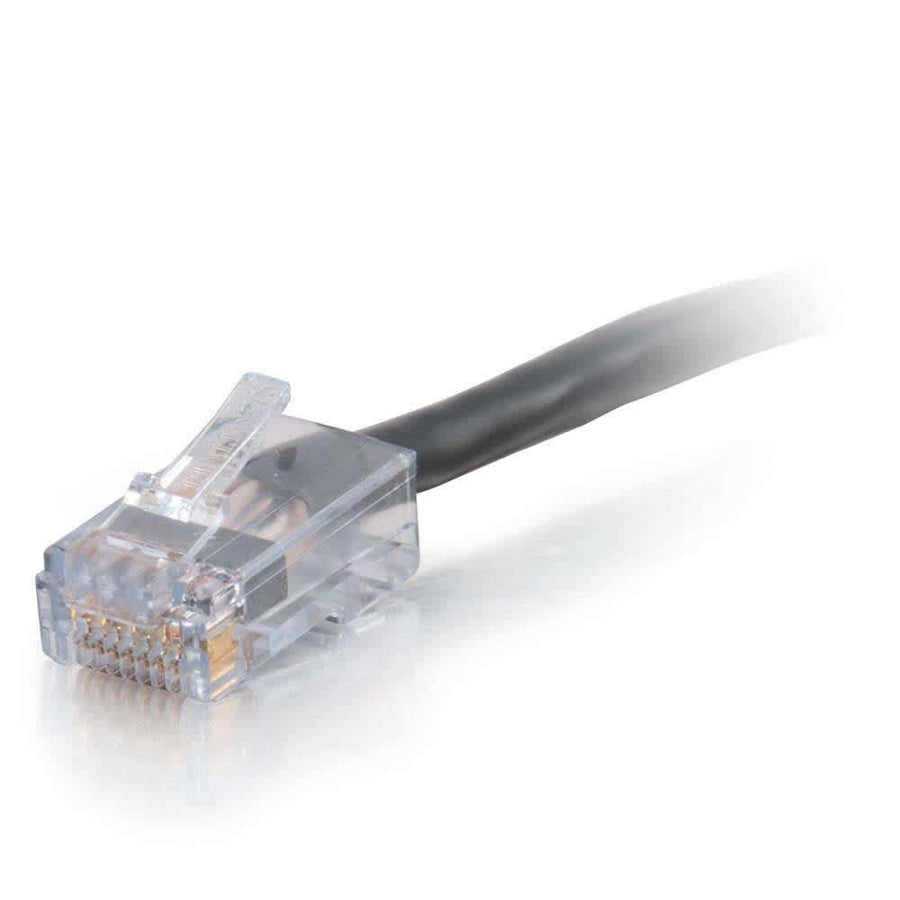

3ft (0.9m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Black
3ft Cat6 UTP plenum patch cable, CMP/FT6 rated, featuring black PVC jacket and 23AWG copper conductors
The C2G CG15292 is a 3ft (0.9 m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed to meet strict building codes for cabling in plenum spaces. This CMP-rated and FT6-rated cable is ideal for routing through air handling spaces, such as the area above dropped ceilings or under raised floors in commercial environments like hospitals and schools. The cable features 23AWG stranded copper conductors and is tested to 550MHz to support high-bandwidth voice, data, and video distribution applications. It is constructed to minimize Near-End Crosstalk (NEXT) and reduce both impedance and structural return loss (SRL). Each cable is terminated with two 50 micron gold plated RJ-45 male connectors in a non-booted configuration. This TAA compliant black cable is built to TIA/EIA-568-C.2 standards and is suitable for professional network deployments requiring high-performance connectivity in plenum environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.1 lbs (0 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152927 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Where can I use this Cat6 cable in a building?
This cable is CMP and FT6 rated, making it suitable for plenum-rated applications such as routing through dropped ceilings or under raised floors.
Is this cable suitable for high-bandwidth data applications?
Yes, this Cat6 cable is tested to 550MHz and is designed to handle bandwidth-intensive voice, data, and video distribution.
Does this cable meet TAA compliance requirements?
Yes, the CG15292 is TAA compliant and meets NDAA 889 standards for government and commercial installations.
What is the conductor material and gauge of this cable?
The cable features 23AWG stranded copper conductors in a 4-pair UTP configuration.
What other colors are available in this Cat6 series?
This series is also available in Blue and Gray to assist with network color-coding.
