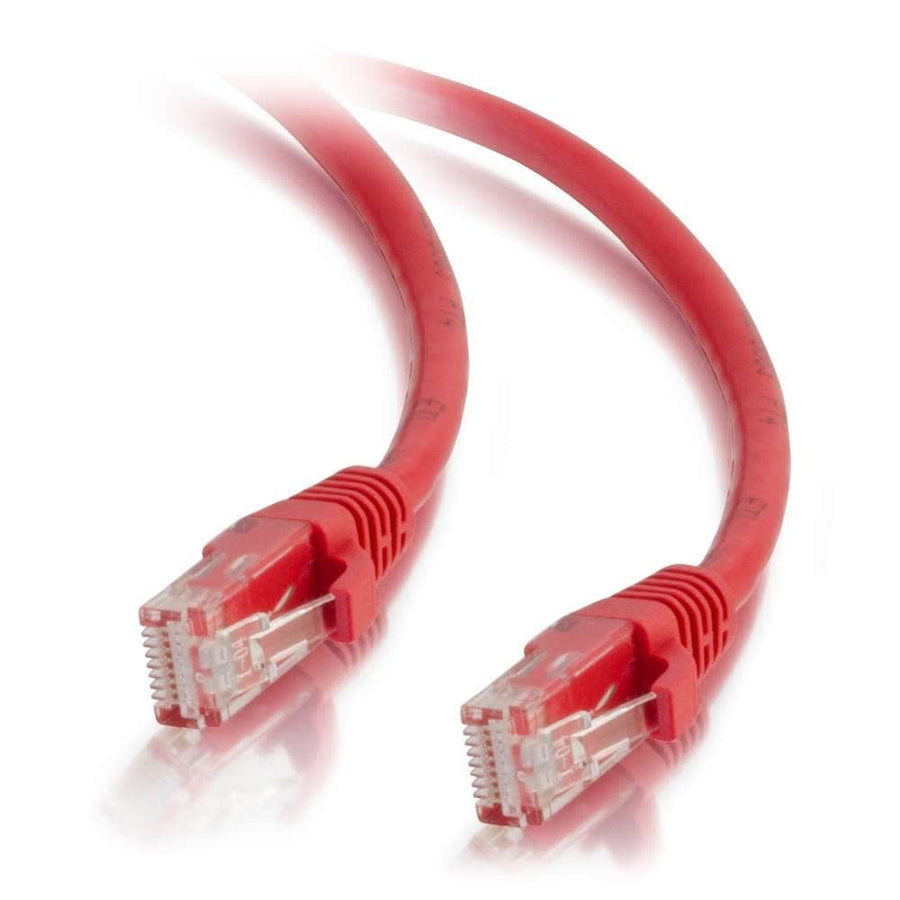

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Red
Red 3ft (0.9m) Cat5e snagless UTP patch cable with stranded copper conductors and RJ-45 male connectors
The C2G CG15223 is a 3ft (0.9m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable features 24 AWG stranded copper conductors that minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain twist-spacing from the connector to the termination point, which helps reduce impedance and structural return loss (SRL). This specific SKU is finished in red, allowing installers to easily color-code network environments. The cable is constructed with a PVC jacket and PVC connector hoods. Both ends are fitted with RJ-45 male connectors featuring a snagless, booted design to protect the clips from damage during installation and provide added strain relief. This cable meets all TIA/EIA Cat5e standards and operates with a bandwidth of 350 mHz. It is an unshielded (UTP) solution with a cable diameter of 0.21 in (5.3 mm). The wiring follows the T568B scheme and is rated for standard, non-rated environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120152231 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the length and color of the CG15223 patch cable?
The CG15223 is a 3ft (0.9m) cable with a red finish, making it useful for color-coded network identification.
Will this Cat5e cable work for high-bandwidth video or data?
Yes, this cable is designed for bandwidth-intensive applications and supports a bandwidth of 350 mHz.
What is the connector type on this C2G cable?
This cable features RJ-45 male connectors with a snagless, booted design to prevent clip damage and provide strain relief.
Is this an unshielded or shielded cable?
This is an unshielded (UTP) patch cable using 24 AWG stranded copper conductors.
What other lengths or colors are available in this series?
This series includes various lengths up to 150ft and is available in 10 different colors.
