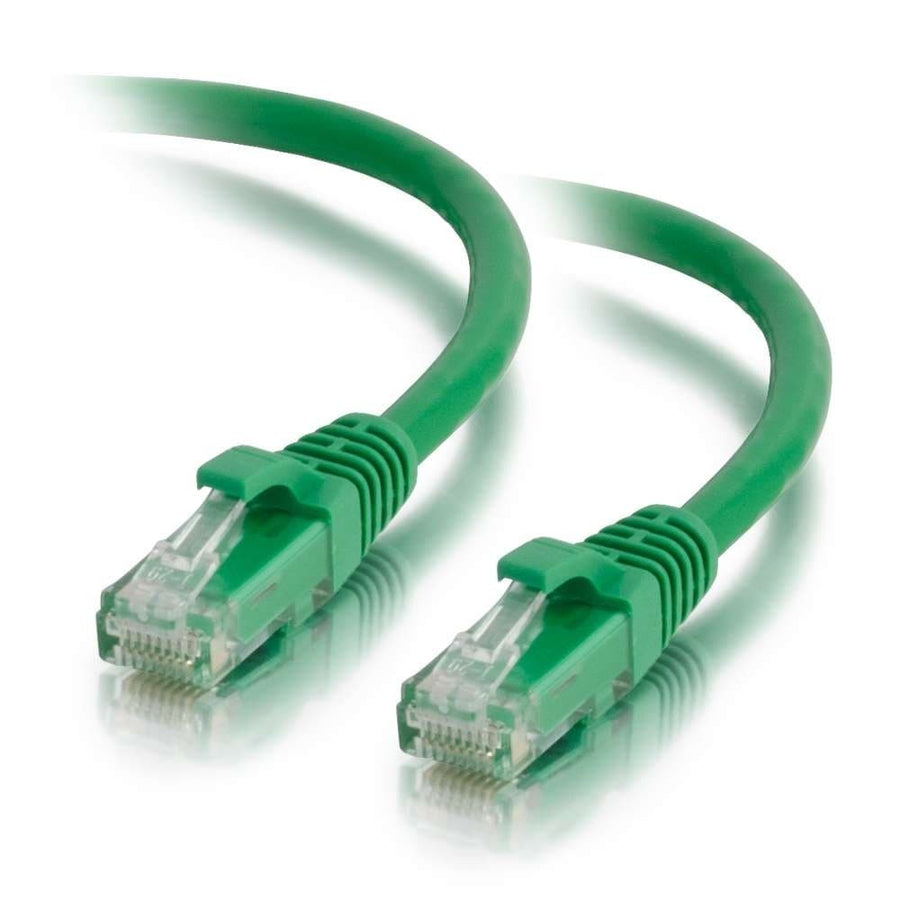

3ft (0.9m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
3ft Cat5e snagless unshielded UTP Ethernet patch cable, green finish, 24 AWG stranded copper conductors
The C2G CG15179 is a 3ft (0.9m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for high-bandwidth voice, data, or video distribution applications. This cable utilizes a T568B wiring scheme and is constructed with 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To ensure signal integrity, each individual pair is bonded together, which helps maintain consistent twist-spacing throughout the line up to the termination point. This construction drastically reduces both impedance and structural return loss (SRL) for reliable performance in fast Ethernet networks. The cable features a 0.21 in (5.3 mm) diameter and includes a molded, snagless PVC boot that provides extra strain relief and protects the RJ-45 clips from damage during installation and frequent unplugging. This green patch cable is rated for standard, non-rated environments and is built to meet all Cat5e TIA/EIA standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.09 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120151791 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What is the wiring standard for the C2G CG15179?
This patch cable uses the T568B wiring scheme and features standard RJ-45 male connectors on both ends.
Will this cable work with my Cat5e keystone inserts?
Yes, it is compatible with various Cat5e components such as the WP3475GN Green Quick Connect Keystone Insert or the WP3450BE Blue RJ45 Connector.
How does the snagless design benefit installation?
The molded PVC snagless boot protects the connector clips from breaking during installation and provides additional strain relief for the cable.
What is the conductor material and gauge used in this cable?
The CG15179 uses 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels.
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications.
