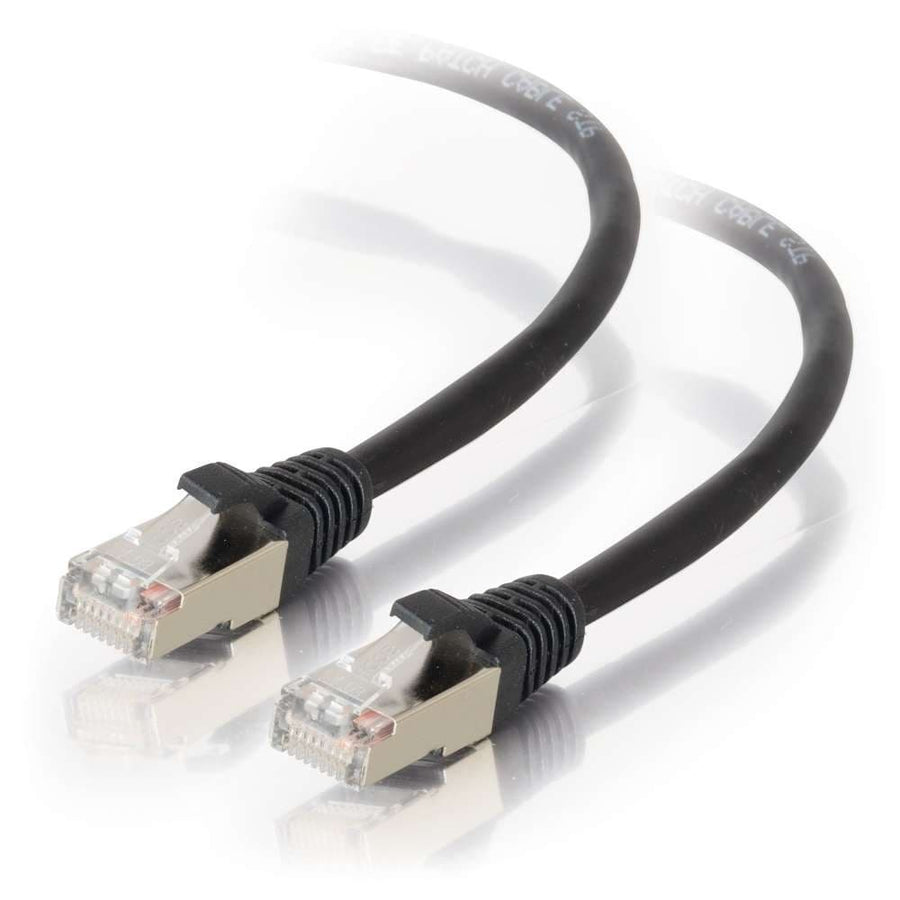

3ft (0.9m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable - Black
3ft (0.9m) Cat5e STP shielded patch cable with snagless RJ-45 connectors and 24 AWG stranded copper conductors, Black
The CG28690 is a 3 ft (0.9 m) Cat5e Snagless Shielded STP Ethernet Network Patch Cable designed for high-performance connectivity in environments requiring electromagnetic interference protection. This cable utilizes F/UTP construction, featuring an overall cable foil shielding and a drain wire to maintain signal integrity. The 24 AWG stranded copper conductors are terminated with 50 micron gold-plated RJ-45 male connectors that are both booted and snagless to prevent accidental disconnection and protect the locking tab. The cable features a PVC jacket and HDPE insulation, with an operating temperature range of -4°F to 176°F (-20°C to 80°C). Wired to the TSB 568B (AT+T 258A) standard, this black patch cable is built for durability and reliability. It is NDAA 889 compliant and meets REACH, RoHS, and CE standards, ensuring it meets necessary regulatory and environmental requirements for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 3 ft (0.9 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
All other specifications 17
| Cable Shielding | Shielded (STP) |
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120286905 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
LANsmart TDR Cable Tester
CG39002$786.99
Psiber Pinger Plus Network IP Tester
CG29431$1,352.99
Single Gang Surface Mount Box in White
WP3409WH$7.99
Questions about this part
What is the wiring standard for the CG28690 patch cable?
This Cat5e cable is wired to the TSB 568B (AT+T 258A) standard for reliable network connectivity.
Does this cable provide protection against electromagnetic interference?
Yes, the CG28690 features STP (Shielded Twisted Pair) construction with overall foil shielding and a drain wire to mitigate interference.
What is the operating temperature range for this cable?
The cable is rated to operate within a temperature range of -4°F to 176°F (-20°C to 80°C).
Are the connectors protected against damage during installation?
The RJ-45 male connectors feature a snagless, booted design that protects the latching tab from being snapped off.
Is this cable suitable for NDAA compliant projects?
Yes, the CG28690 is listed as NDAA 889 compliant for professional network deployments.
