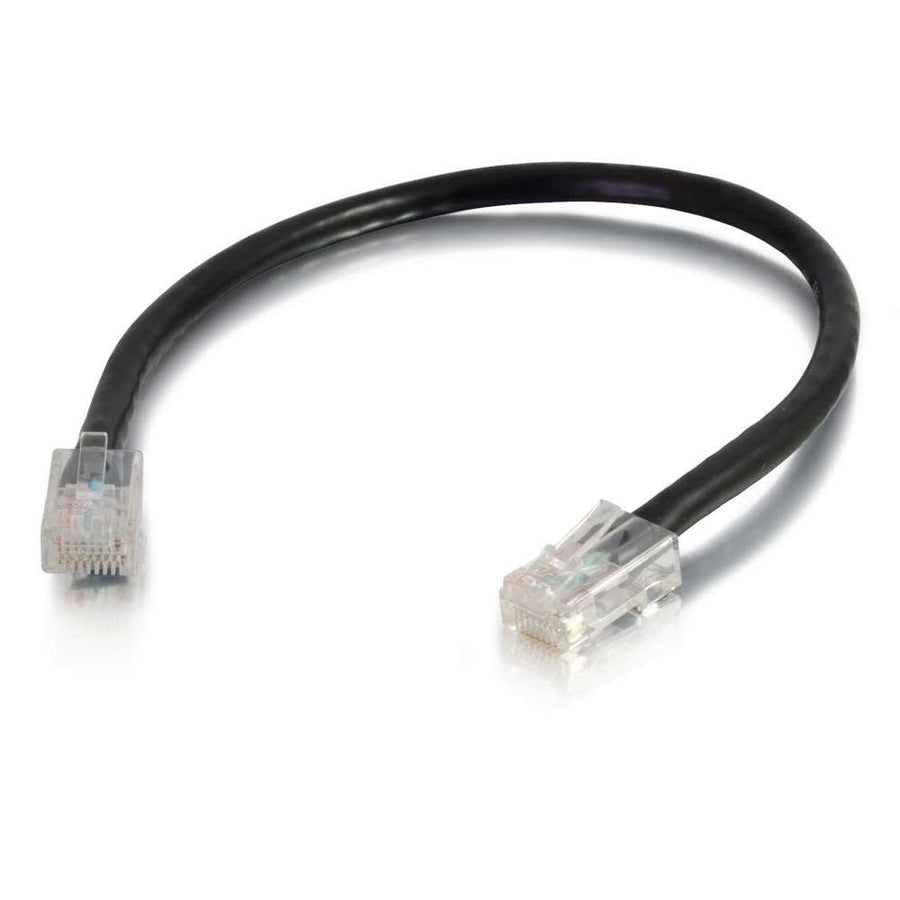

3ft (0.9m) Cat5e Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
3ft Black Cat5e UTP patch cable with RJ-45 male connectors for high-bandwidth voice, data, or video distribution
The C2G CG22677 is a 3ft (0.9m) Cat5e unshielded UTP Ethernet network patch cable designed for bandwidth-intensive applications, including voice, data, and video distribution. This cable is constructed with high-quality 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. The design features individual pairs that are bonded together to maintain twist-spacing from the termination point to the end of the line, which helps reduce impedance and structural return loss (SRL). This cable uses an unshielded twisted pair (UTP) configuration and a PVC jacket with a non-rated rating. It utilizes the T568B wiring scheme and is finished with non-booted RJ-45 male connectors. This specific black cable is part of a series that includes 10 different colors to facilitate network color-coding. It is designed for use with network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 3 ft (0.9 m) |
| Shield Type | UTP |
| Shipping Weight | 0.04 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat5e |
All other specifications 14
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120226772 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
6-Port Cat5e Network Interface Module
AC1012$59.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
Cat5e RJ45 Keystone Connector in Black
WP3450BK$4.49
Cat5e RJ45 Keystone Connector in Blue
WP3450BE$4.49
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Questions about this part
What applications is the C2G CG22677 designed for?
This Cat5e patch cable is designed for bandwidth-intensive voice, data, or video distribution in networks involving hubs, switches, routers, and network adapters.
Will this cable work with my existing Cat5e keystones?
Yes, this cable is compatible with various Cat5e accessories including the WP3450 series RJ45 Keystone Connectors and WP3475 series Quick Connect inserts.
What is the conductor material and wiring standard of the CG22677?
The CG22677 features 24 AWG stranded copper conductors and follows the T568B wiring scheme.
Is this cable suitable for in-wall installation?
This cable features a CMG In-Wall Rated jacket, making it suitable for certain in-wall applications.
What is the difference between this and the other C2G Cat5e cables?
The CG22677 is a 3ft black non-booted cable; other cables in this series vary by color and can reach lengths up to 150ft.
