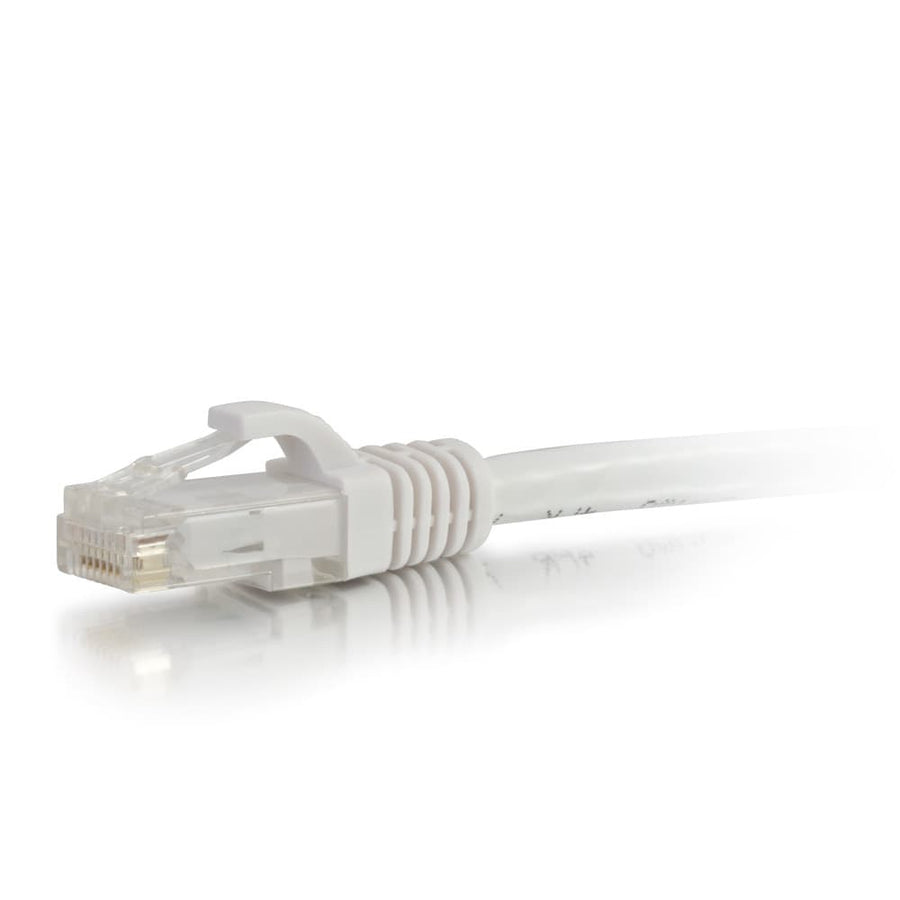

35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - White
35ft (10.7m) Cat6a snagless UTP Ethernet patch cable, white finish, supports 10GbE transmission
The C2G CG50776 is a 35 ft (10.7 m) Cat6a snagless UTP Ethernet patch cable designed for high-performance networking environments. This unshielded cable is engineered to support 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, and patch panels. It facilitates 10 Gigabit data transmission over a 4-pair copper cable for connections reaching up to 100 meters. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is built to improve alien crosstalk performance compared to legacy Cat6 cabling systems. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements. The snagless, booted PVC connector hood protects the RJ-45 terminals in high-density switch applications. This white cable features an individual length label on each unit for easier identification during installation and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.93 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507765 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with my 10GbE switches?
Yes, the CG50776 is designed for 10GBase-T ports and equipment, providing the necessary bandwidth for 10 Gigabit data transmission.
What is the maximum distance for 10GbE using this cable?
This Cat6a patch cable allows for connections up to 100 meters using its 4-pair copper configuration.
What is the difference between this and a standard Cat6 cable?
Unlike some legacy Cat6 systems, this Cat6a cable is specifically constructed to provide improved alien crosstalk performance for 10 Gigabit Ethernet applications.
Is this cable suitable for high-density patch panels?
Yes, the snagless hood on the RJ-45 connectors is specifically designed to protect the plugs in high-density switch and patch panel applications.
What other components are compatible with this cable?
This cable is compatible with various accessories, including the WP246A Cat6a 24-Port Rack Mount Patch Panel and the WP346AIV Cat6a Quick Connect Keystone Inserts.
