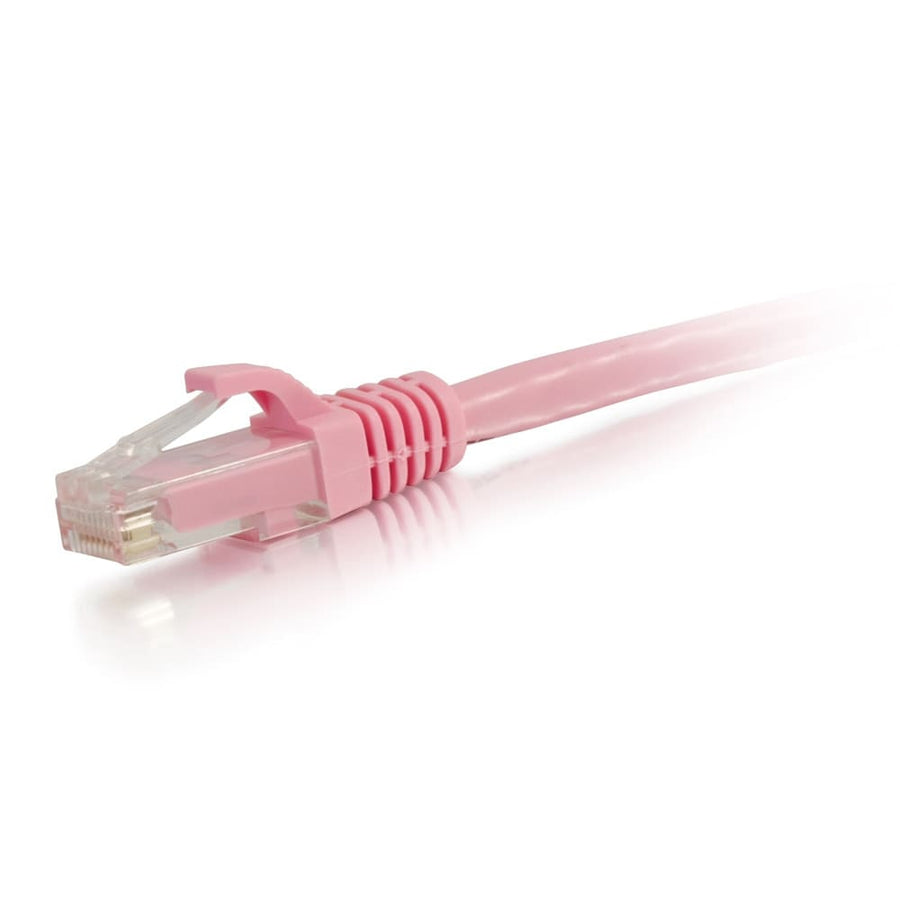

35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
35ft (10.7m) Pink Cat6a Snagless Unshielded UTP Ethernet Patch Cable for 10 Gigabit data transmission
The CG50871 is a 35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in Pink, engineered to facilitate 10GBase-T connectivity. This cable supports 10 Gigabit data transmission over a 4 pair copper conductor, making it suitable for high-speed connections with network adapters, hubs, switches, routers, and patch panels. It is constructed with 26AWG stranded bare copper conductors and features HDPE insulation for reliable performance. This snagless design includes a PVC connector hood, which is specifically intended for high-density switch applications to prevent accidental disconnection during maintenance. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements and is built to provide improved alien crosstalk performance. The 0.24 in (6 mm) diameter and snagless boots allow for easier installation in crowded rack environments. For deployment planning, note that this cable uses a 568B wiring scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.9 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508717 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
What is the maximum transmission distance for this Cat6a cable?
This cable enables 10 Gigabit data transmission over 4 pair copper cable for connections up to 100 meters.
Is the CG50871 suitable for high-density network switches?
Yes, the snagless hood design is specifically intended to assist with connectivity in high-density switch applications.
What testing standards does this patch cable meet?
Each cable is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
Can I use this for 10GBase-T equipment?
Yes, this cable is ideal for use with 10GBase-T ports and equipment such as routers, switches, and hubs.
Does this cable feature a snagless design?
Yes, this SKU features a snagless, booted connector type to protect the wire from damage during installation.
