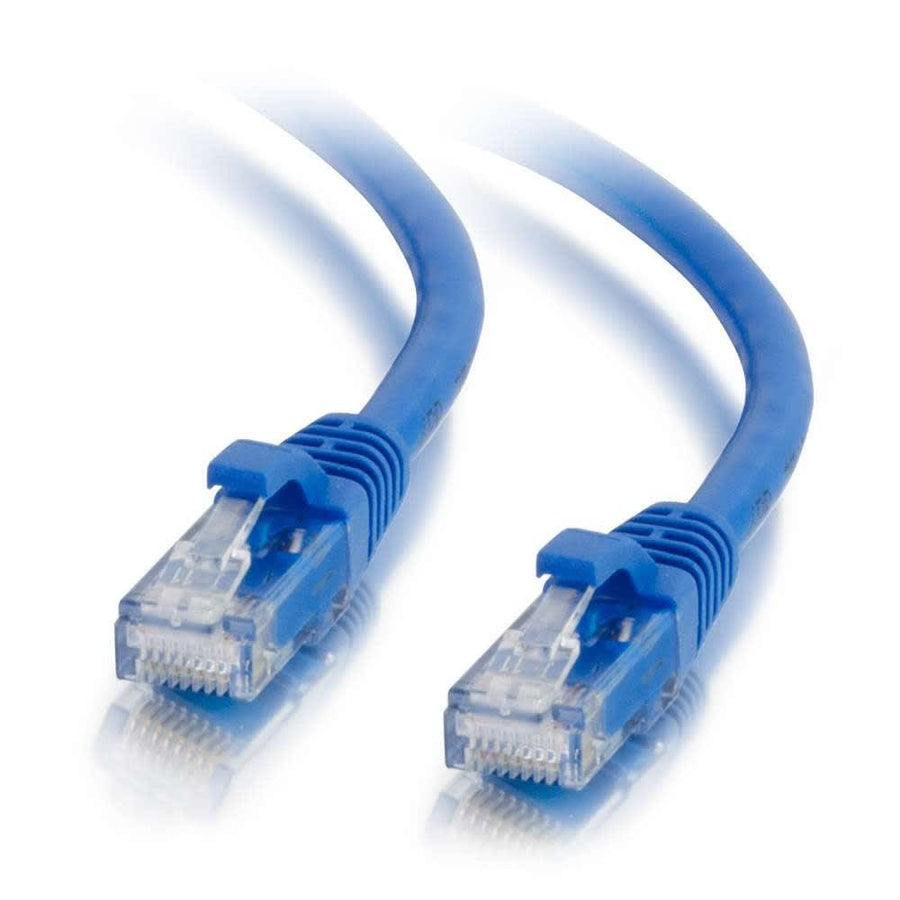

35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
35ft (10.7m) Blue Cat6a Snagless Unshielded UTP Ethernet patch cable for 10GBase-T high-density applications
The C2G CG00705 is a 35ft (10.7m) blue Cat6a patch cable designed to facilitate 10 Gigabit data transmission over 4-pair copper cabling. This unshielded UTP cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, making it suitable for 10GBase-T ports and equipment including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. The cable features a stranded copper conductor with 26AWG (7/0.16) sizing and HDPE insulation. To support high-density switch applications, the connectors include a snagless PVC hood to protect the boot. The cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. Each cable is individually labeled with its specific length for easy identification during installation. This blue patch cable is a reliable solution for maintaining high-speed connectivity in complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.89 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007050 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Yes, the CG00705 is designed for 10GBase-T ports, supporting 10 Gigabit data transmission over 4-pair copper cabling.
Yes, the CG00705 is designed for 10GBase-T ports, supporting 10 Gigabit data transmission over 4-pair copper cabling.
Is this patch cable suitable for high-density switches?
Yes, this cable features a snagless connector type with a PVC hood, which is ideal for use in high-density switch applications.
What is the wiring scheme for the CG00705?
The CG00705 uses the 568B wiring scheme and features a stranded UTP construction.
What accessories are compatible with this cable?
This cable is compatible with various networking components, including the WP246A Cat6a 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
Which testing standards does this cable meet?
The CG00705 is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
