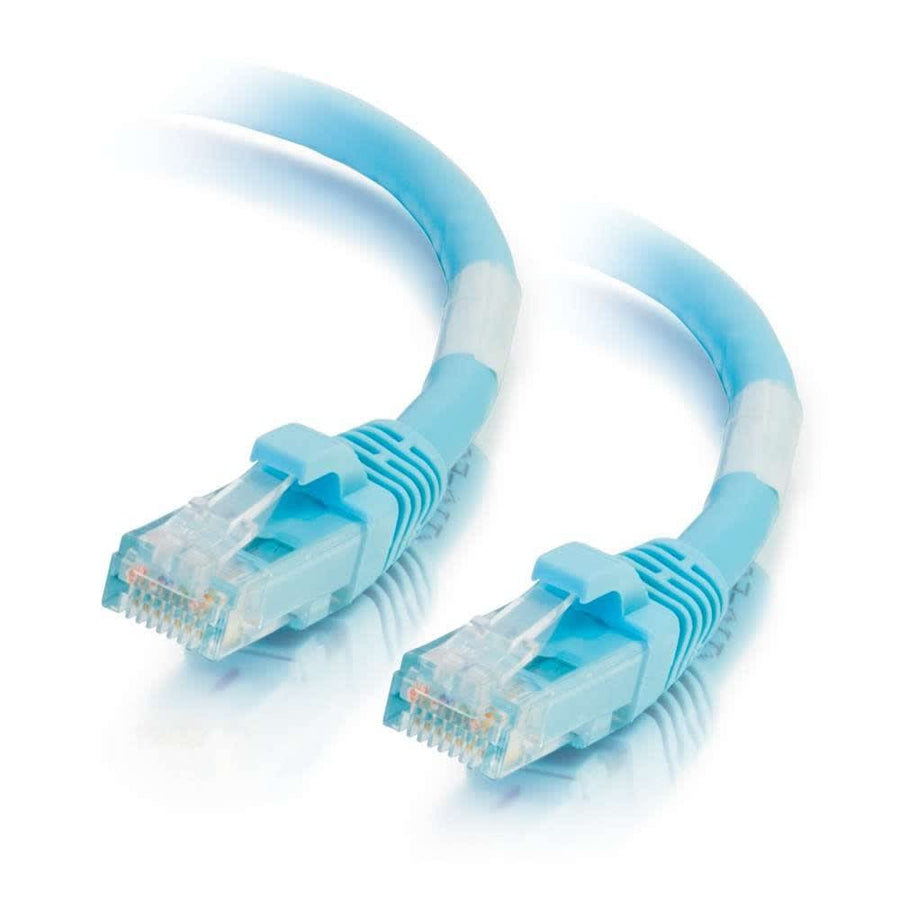

35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
35ft (10.7m) Cat6a Snagless Unshielded UTP Ethernet Patch Cable in Aqua, featuring 26AWG stranded copper conductors
The C2G CG00773 is a 35 ft (10.7 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed to facilitate 10 Gigabit data transmission over 4-pair copper cabling. This cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, supporting connections up to 100 meters for high-performance networking. It is constructed with 26AWG bare copper stranded conductors and HDPE insulation to ensure signal integrity. The aqua-colored PVC jacket is paired with snagless, booted RJ-45 male connectors, which help prevent accidental disconnects and provide improved alien crosstalk performance. This design is particularly suited for high-density switch applications where cable management is critical. This patch cable is ideal for use with 10GBase-T ports and equipment, including network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable includes an individual length label for rapid identification during installation and is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.41 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007739 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this C2G CG00773 cable support 10GbE speeds?
Yes, this Cat6a patch cable supports 10 Gigabit Ethernet transmission over 100 meters using 4-pair copper cabling.
What is the wiring scheme for the CG00773?
The CG00773 follows the 568B wiring scheme and features stranded UTP construction.
Is this cable suitable for high-density switch installations?
Yes, the snagless hood design is specifically intended for high-density switch applications to protect the connection.
What accessories are compatible with this Cat6a cable?
This cable is compatible with several items, including the WP246A Cat6a 24-Port Rack Mount Patch Panel and various Cat6a Quick Connect RJ45 Keystone Inserts.
Does this patch cable carry a warranty?
This C2G Cat6a patch cable comes with a lifetime warranty from the manufacturer.
