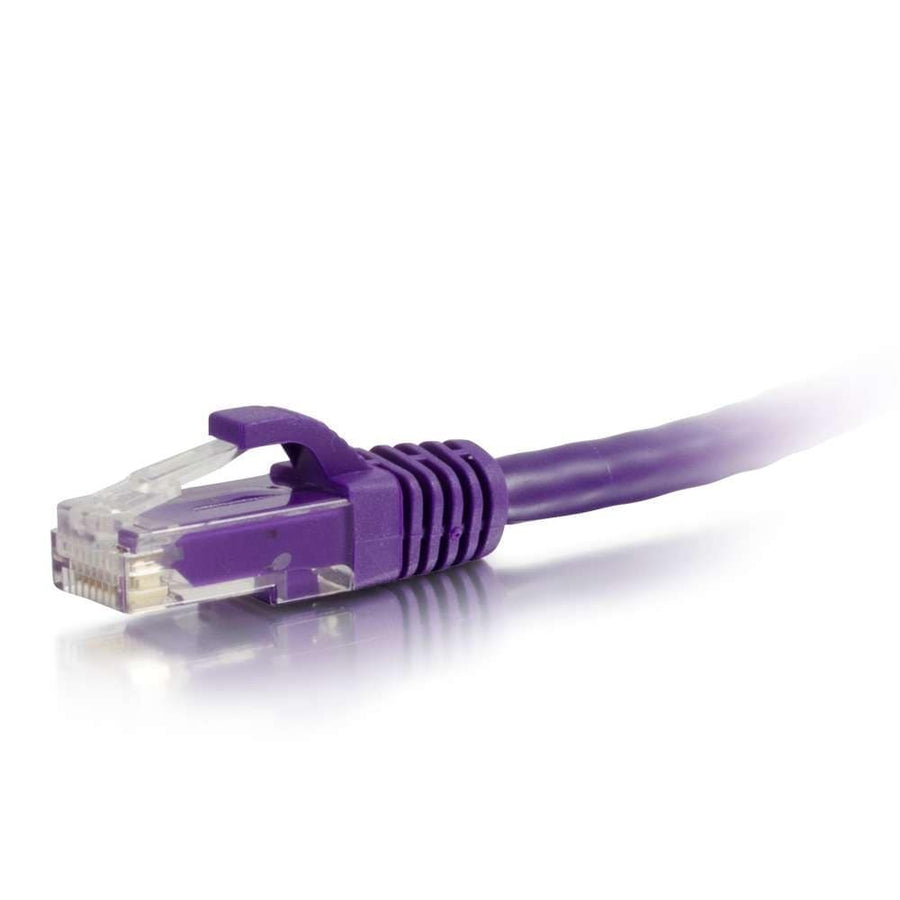

35ft (10.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
35ft Cat6 unshielded UTP Ethernet patch cable in purple, featuring snagless boots for strain relief and clip protection
The C2G CG31357 is a 35ft (10.7m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable is engineered to meet all Cat6 TIA/EIA standards, working to drastically reduce both impedance and structural return loss (SRL). Each individual pair is bonded together to maintain twist-spacing throughout the line, right up to the termination point. Utilizing high quality stranded copper conductors, this design is intended to minimize Near-End Crosstalk (NEXT) levels in high-performance environments. This purple cable features a snagless, booted connector design that protects the RJ-45 clips during installation and provides additional strain relief. The cable utilizes a 24 AWG wire gauge and a PVC jacket. For organizations using color-coding to organize network infrastructure, this SKU provides a distinct purple identification. The wiring scheme follows the T568B standard. This cable is part of a larger series that includes various lengths up to 150ft and 10 different color options to support complex network management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 1 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313571 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG31357 compatible with Cat6 patch panels?
Yes, this Cat6 cable is compatible with various hardware, including the Cat6 48-Port Rack Mount Patch Panel (SKU 48845CC6) and the Cat6 24-Port Rack Mount Patch Panel (SKU 24845CC6).
What is the difference between the CG31357 and other Cat6 cables in the series?
This specific SKU is the 35ft purple variant; the series offers different lengths up to 150ft and 10 different color choices for network organization.
Does this cable require any specific testing for installation?
For verifying network integrity, this cable can be used with tools like the LANtest Pro Remote Network Cable Tester or the SOHOTest-E™ Residential Cable Tester.
What type of shielding does this Ethernet cable use?
The CG31357 is an unshielded (UTP) cable that utilizes stranded copper conductors to manage impedance and reduce structural return loss.
What is the warranty for this C2G patch cable?
This product is covered by a lifetime warranty from the manufacturer.
