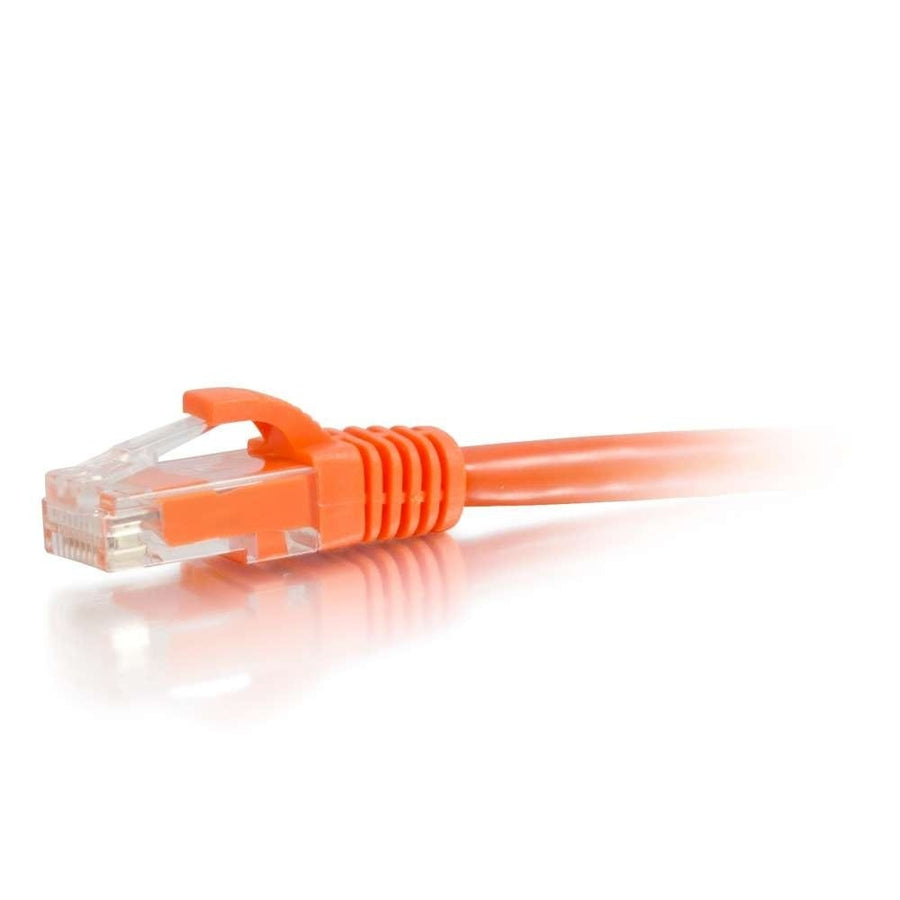

35ft (10.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
35ft (10.7m) orange Cat6 UTP patch cable, snagless design for clip protection and extra strain relief
The CG31358 is a 35ft (10.7m) orange Cat6 unshielded twisted pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards, working to reduce impedance and structural return loss (SRL) across the line. It features a stranded copper conductor with a 24 AWG wire gauge and a T568B wiring scheme. To minimize Near-End Crosstalk (NEXT) levels, each individual pair is bonded together to maintain twist-spacing through the termination point. The cable features a 0.24 in (6.2 mm) diameter and is constructed with a PVC jacket. For ease of installation, the RJ-45 male connectors are equipped with molded, snagless PVC boots that protect the clips from damage and provide additional strain relief during plugging and unplugging. This orange cable is part of a broader series available in up to 150ft lengths and 10 different colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.99 lbs (0.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313588 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the length and color of the CG31358?
The CG31358 is a 35 ft (10.7 m) cable in orange.
Does this Cat6 cable include strain relief?
Yes, it features a snagless connector design with molded PVC boots to protect the clips and provide strain relief.
What wiring standard does this patch cable use?
This cable uses the T568B wiring scheme with stranded copper conductors.
What is the cable diameter for the CG31358?
The cable has a diameter of 0.24 in (6.2 mm).
Is this cable suitable for high-bandwidth video distribution?
Yes, it is designed for Gigabit computer networks requiring bandwidth-intensive voice, data, or video applications.
