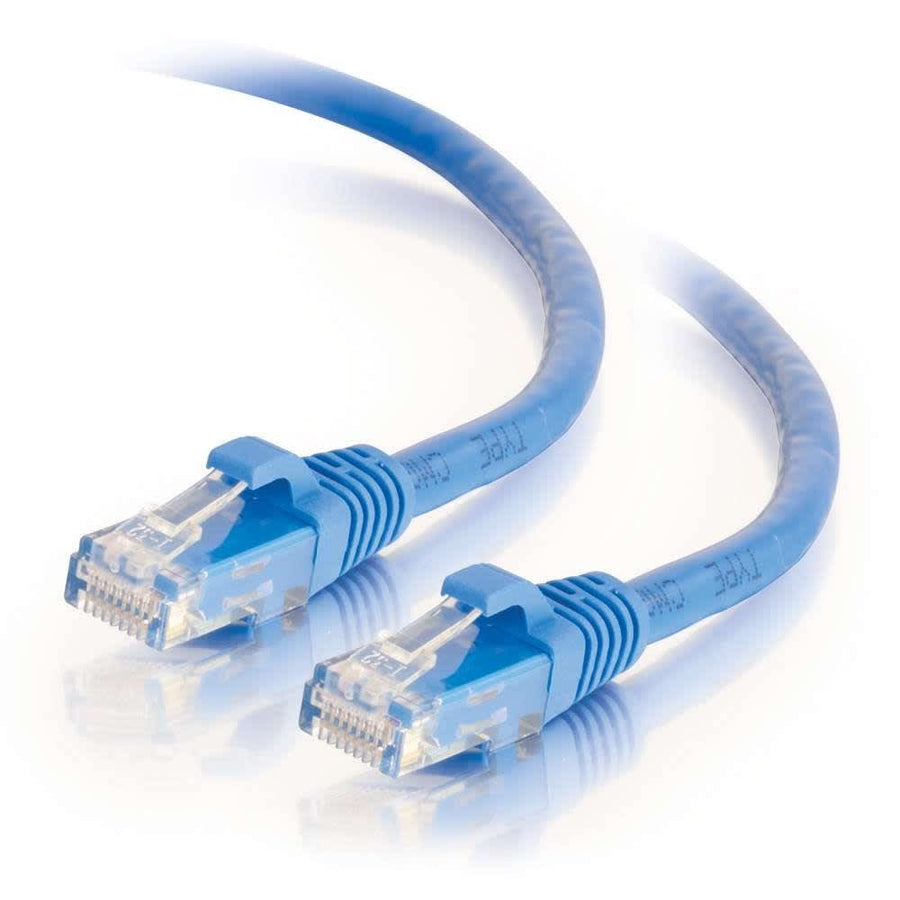

35ft (10.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
35ft Cat6 snagless patch cable in blue, featuring unshielded UTP construction and copper stranded conductors for high-bandwidth data distribution
The CG31351 is a 35ft (10.7m) Cat6 snagless unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable meets all Cat6 TIA/EIA standards and is engineered to drastically reduce both impedance and structural return loss (SRL). Each individual pair is bonded together to help maintain twist-spacing throughout the 10.7 m line right up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels. The cable features 24 AWG copper stranded conductors and is built with a PVC jacket and PVC connector hoods. To assist during installation and deployment, the molded snagless boot protects the RJ-45 clips from damage during plugging and unplugging while providing extra strain relief. This blue cable is part of a series available in 10 colors and lengths up to 150ft to support organized, color-coded network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.97 lbs (0.4 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120313519 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
What is the length and color of the CG31351?
The CG31351 is a 35ft (10.7m) blue cable, part of a series available in up to 150ft lengths and 10 different colors.
Is the CG31351 suitable for high-bandwidth video distribution?
Yes, this Cat6 patch cable meets all TIA/EIA standards and is designed for bandwidth-intensive voice, data, or video distribution applications.
Does this cable feature snagless boots for easier installation?
Yes, the CG31351 features molded, snagless boots that protect the RJ-45 clips and provide extra strain relief during use.
What is the wire gauge and conductor material for this patch cable?
The cable uses 24 AWG copper stranded conductors and follows a T568B wiring scheme.
Which documents are available for technical verification?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed technical information regarding the product line.
