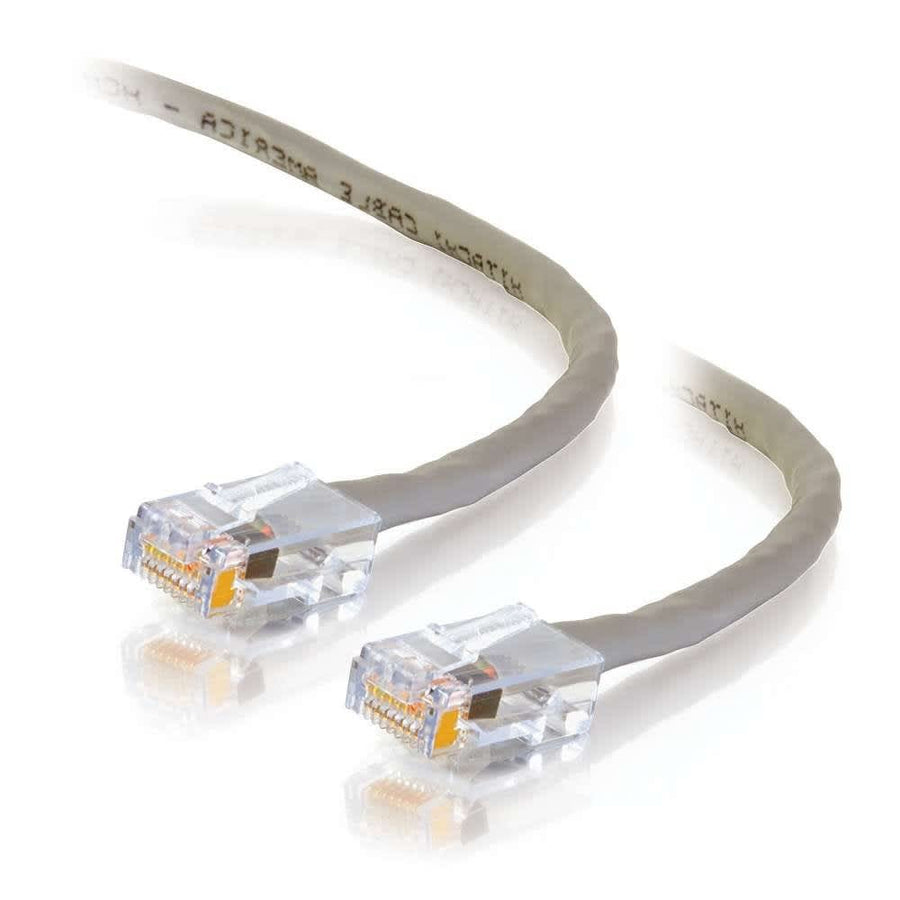

35ft (10.7m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Gray
35ft Cat6 plenum-rated patch cable, CMP/FT6 rated, with gray PVC jacket and 50 micron gold-plated RJ45 connectors
The C2G CG15273 is a 35ft (10.7m) Cat6 UTP patch cable designed to meet the rigorous requirements of plenum spaces. This cable is intended for routing through air-handling spaces, such as those found above dropped ceilings or under raised floors in commercial environments like schools and hospitals. It features a CMP-rated and FT6-rated PVC jacket, ensuring compliance with strict building codes for plenum-space installations. This unshielded (UTP) cable utilizes 23AWG solid copper stranded conductors to handle bandwidth-intensive voice, data, and video distribution applications. It is tested up to 550MHz and meets TIA/EIA-568-C.2 standards. Each end is terminated with 50 micron gold-plated RJ45 male connectors. This gray cable is TAA compliant and part of a larger series available in other colors and lengths up to 100ft.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.91 lbs (0.4 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Gray |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152736 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Can I use the CG15273 in a ceiling plenum space?
Yes, this CG15273 cable is CMP-rated and FT6-rated, making it suitable for plenum-space installations where strict building codes apply.
Is this cable suitable for high-bandwidth video applications?
Yes, this Cat6 cable is tested up to 550MHz and is designed to handle bandwidth-intensive voice, data, and video distribution.
What is the difference between this and other C2G Cat6 cables?
The CG15273 is a 35ft gray plenum-rated version; the series includes other color options like Blue and Black, and lengths up to 100ft.
Does this cable meet TAA requirements?
Yes, the CG15273 is TAA compliant and meets NDAA 889, RoHS, REACH, and TSCA standards.
What kind of RJ45 connectors are used on this patch cable?
The CG15273 features 50 micron gold-plated RJ45 male connectors on both ends.
