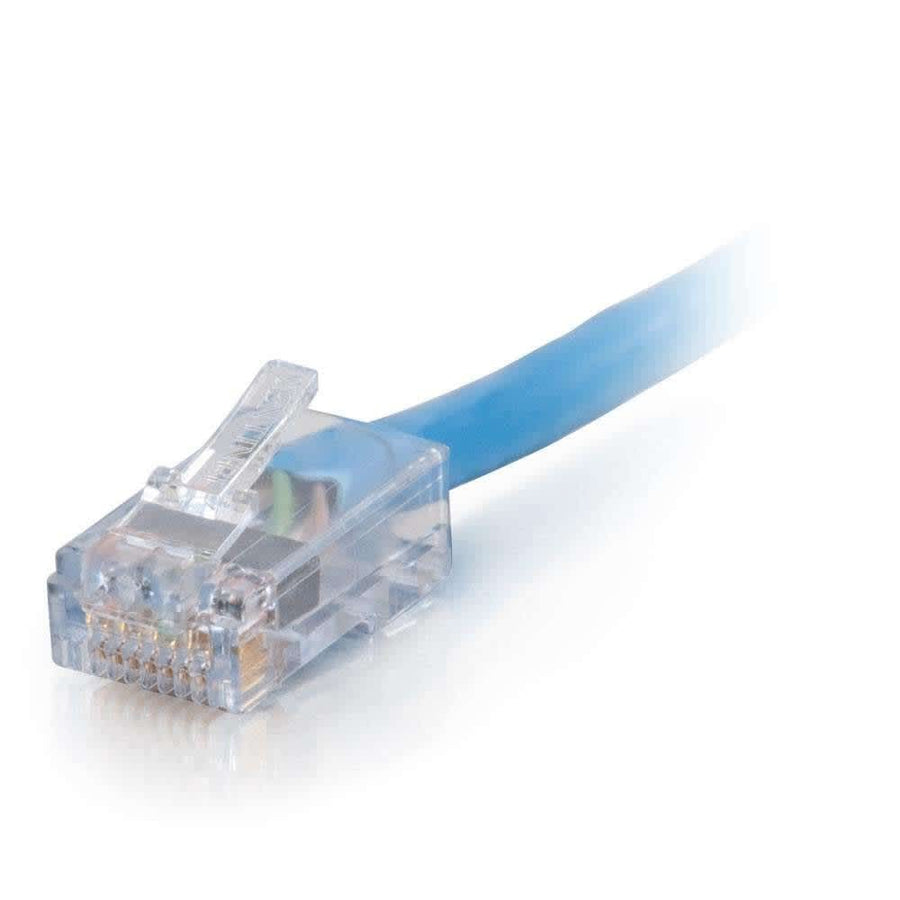

35ft (10.7m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Blue
35ft Cat6 Plenum patch cable, blue, 23AWG solid copper, UTP, CMP and FT6 rated
The C2G CG15286 is a 35ft (10.7m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed for high-bandwidth applications. This blue cable is CMP and FT6 rated, making it suitable for installation in plenum spaces such as dropped ceilings or raised floors in commercial environments like hospitals and schools. Each cable features 23AWG solid copper conductors and 50 micron gold plated RJ-45 male connectors. This non-booted design is engineered to meet TIA/EIA-568-C.2 standards while reducing impedance and structural return loss (SRL). The construction is specifically designed to minimize Near-End Crosstalk (NEXT) levels. This TAA compliant cable is tested to 550MHz to support demanding voice, data, and video distribution needs. It is a reliable solution for routing through plenum air-handling spaces where strict building codes require specific jacket ratings.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.92 lbs (0.4 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120152866 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Is the C2G CG15286 suitable for plenum space installations?
Yes, this cable is CMP and FT6 rated, making it appropriate for use in plenum spaces like dropped ceilings or under raised floors.
What are the conductor and connector specifications for this cable?
The CG15286 features 23AWG solid copper conductors and 50 micron gold plated RJ-45 male connectors.
Is this cable TAA compliant?
Yes, this is a TAA compliant cable, meeting required standards for government and commercial procurement.
What performance standards does the CG15286 meet?
This Cat6 cable is tested to 550MHz and meets the TIA/EIA-568-C.2 standard for high-performance connectivity.
What other color options are available in this series?
This series is also available in Gray and Black to assist with color-coded network installations.
