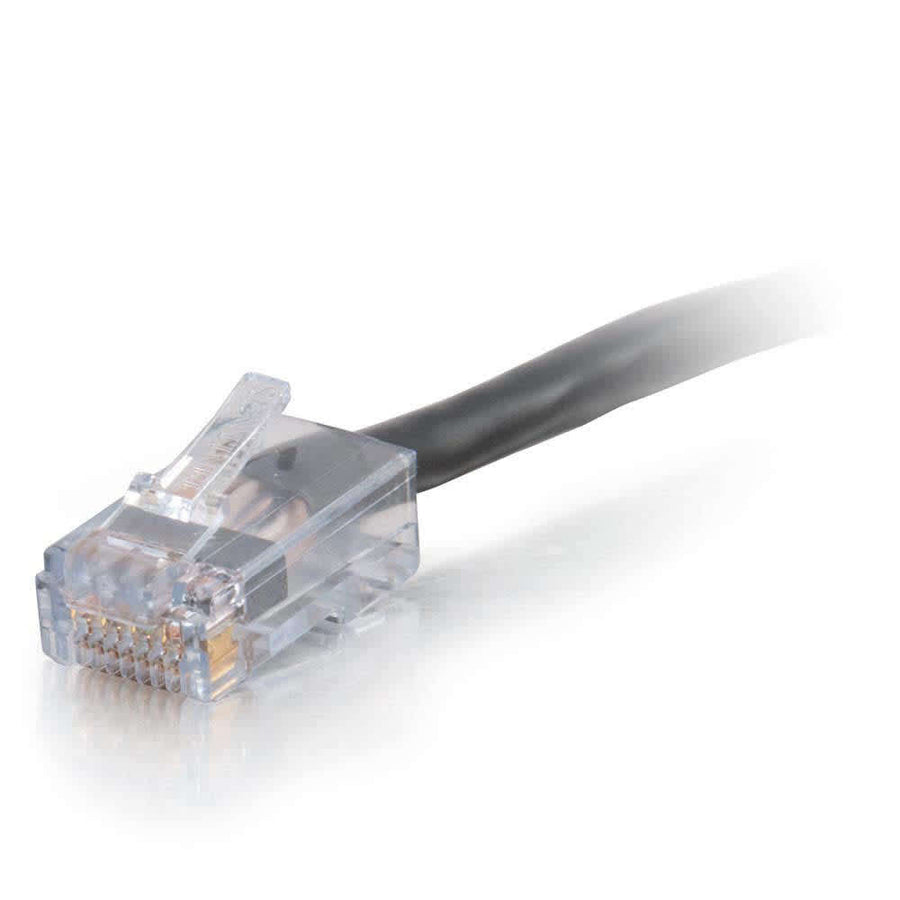

35ft (10.7m) Cat6 Non-Booted UTP Unshielded Ethernet Network Patch Cable - Plenum CMP-Rated - Black
35ft (10.7m) Cat6 UTP plenum patch cable, CMP/FT6 rated, black finish
The C2G CG15300 is a 35ft (10.7m) Cat6 Unshielded Twisted Pair (UTP) patch cable designed to meet strict building codes for plenum spaces. This cable is rated for CMP and FT6 applications, making it suitable for routing through air-handling spaces such as dropped ceilings or raised floors in commercial environments like hospitals and schools. It features 23AWG solid copper conductors with a stranded construction to support bandwidth-intensive voice, data, and video distribution. The RJ-45 male connectors are outfitted with 50 micron gold plating for reliable connectivity. Designed to meet TIA/EIA-568-C.2 standards, this cable is tested to 550MHz and is engineered to minimize Near-End Crosstalk (NEXT) while reducing impedance and structural return loss (SRL). This TAA compliant cable is ideal for high-performance network environments requiring reliable plenum-rated cabling.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 35 ft (10.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.89 lbs (0.4 kg) |
| Wire Gauge | 23 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
All other specifications 13
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Application | Plenum Rated |
| Jacket Rating | CMP RatedFT6 Rated |
| Product Type | Cable |
| TAA Compliant | Yes |
| UPC | 757120153009 |
| Certifications | NDAA 889Prop 65REACHRoHSTAATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Cat6 48-Port Rack Mount Patch Panel
48845CC6$349.99
Trio Combo Module with Cat6 Data
CO1166$119.99
Cat6 24-Port Rack Mount Patch Panel
24845CC6$179.99
8 Port Cat6 Network Interface Module
AC1068$64.99
6-Port Cat6 Network Interface Module
AC1013$109.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - Black
CG29747$79.99
SOHOTest-E™ Residential Cable Tester
CG39004$128.99
Psiber Cable Tracker Network ID Complete Kit
CG29400$482.99
4-Port Surface Mount Box
WP3504WH$4.99
48-Port Keystone Rack Mount Patch Panel
WP48RM$59.99
Questions about this part
Can I use the CG15300 in plenum spaces?
Yes, this cable is CMP and FT6 rated, making it suitable for use in plenum spaces above dropped ceilings or under raised floors.
Is the C2G CG15300 TAA compliant?
Yes, this 35ft Cat6 patch cable is TAA compliant and meets NDAA 889 requirements for government and commercial use.
What is the maximum frequency for this Cat6 cable?
The CG15300 is tested to 550MHz and meets all TIA/EIA-568-C.2 standards for Cat6 performance.
What type of connectors are on the CG15300?
The cable features non-booted RJ-45 male connectors with 50 micron gold plating.
What is the difference between this and the gray or blue versions?
The CG15300 is the black finish model; the series is also available in Gray and Blue to facilitate color-coding in your network installation.
