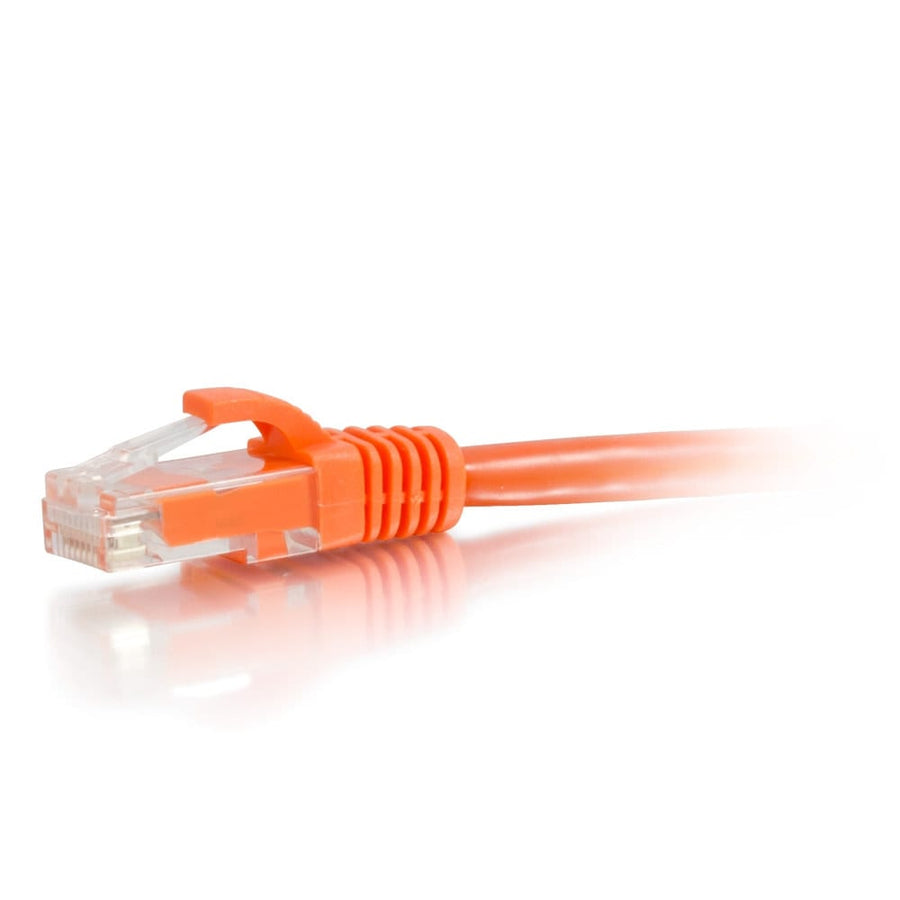

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
30ft Orange Cat6a Snagless UTP Ethernet Patch Cable for 10GbE transmission
The C2G CG50851 is a 30ft (9.1 m) Snagless Unshielded Cat6a patch cable designed to support 10GBase-T equipment and 10 Gigabit data transmission. This orange cable utilizes a 4-pair stranded copper conductor with 26AWG (7/0.16) bare copper wiring and HDPE insulation. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to standard Cat6 cabling. This SKU is built for high-density switch applications thanks to its snagless, booted RJ-45 male connectors with PVC hoods. Each cable is individually labeled with its specific length for easier deployment in complex network environments. The construction features a PVC jacket and is rated for temperatures up to 75°C. This UTP cable is suitable for connecting network adapters, hubs, switches, routers, modems, and patch panels within a 100-meter range.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.77 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508519 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
The CG50851 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 100 meters.
The CG50851 is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 100 meters.
What is the maximum operating temperature for the CG50851?
This patch cable has a temperature rating of up to 75°C.
Is this cable suitable for high-density patch panels?
Yes, the snagless design is specifically intended to facilitate use in high-density switch and patch panel applications.
What accessories are compatible with this Cat6a series?
Compatible hardware includes the WP346AOR orange Keystone Insert and the WP246A Cat6a 24-Port Rack Mount Patch Panel.
What is the wiring scheme for this patch cable?
This C2G cable uses the 568B wiring scheme.
