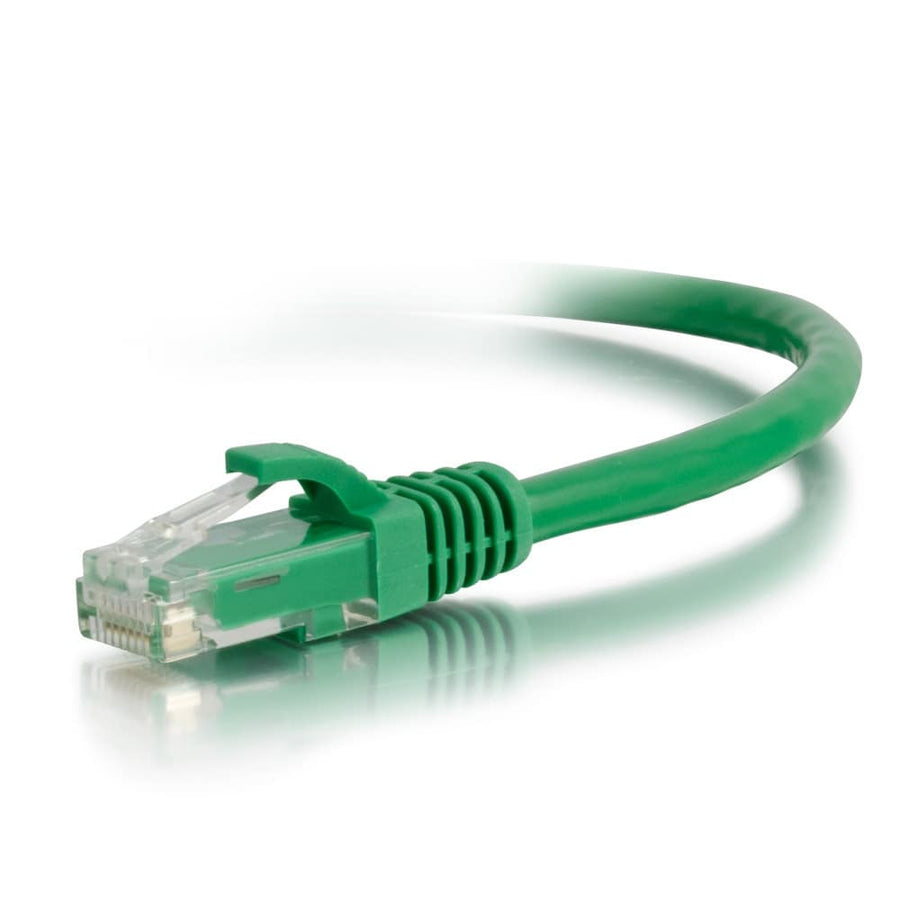

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
30ft Green Cat6a Snagless Unshielded UTP Ethernet Patch Cable, 26AWG stranded copper, 10GbE capable
The C2G CG50794 is a 30 ft (9.1 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable in green, designed to support 10GBase-T equipment. This cable facilitates 10 Gigabit data transmission over a 4-pair copper configuration, supporting connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, making it a reliable choice for high-performance networking environments. The cable features 26AWG bare copper stranded conductors with HDPE (High-density Polyethylene) insulation and a PVC jacket. To improve alien crosstalk performance, the construction utilizes high-quality materials and plugs. The snagless, booted RJ-45 male connectors are specifically designed to protect the locking tab, making them ideal for high-density switch applications where space is limited. This green cable is also suitable for color-coding network installations. The jacket is rated at 75°C and the product is covered by a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.76 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507949 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will the CG50794 work for 10 Gigabit Ethernet applications?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and equipment, supporting 10 Gigabit data transmission over 100 meters.
Is this cable suitable for high-density patch panels or switches?
Yes, the snagless hood on the RJ-45 male connectors protects the tab, which is ideal for dense switch applications.
What is the wiring scheme for this patch cable?
This C2G patch cable uses the 568B wiring scheme for its 4-pair stranded copper construction.
What documentation is available for submittals?
You can refer to the C2G Ethernet Patch Cable Matrix (PDF) for detailed technical information regarding this cable series.
What other components are compatible with this Cat6a system?
This cable is compatible with various Cat6a components, including the WP346AIV Keystone Insert, WP246A 24-Port Rack Mount Patch Panel, and the AC106A6 6 Port Module.
