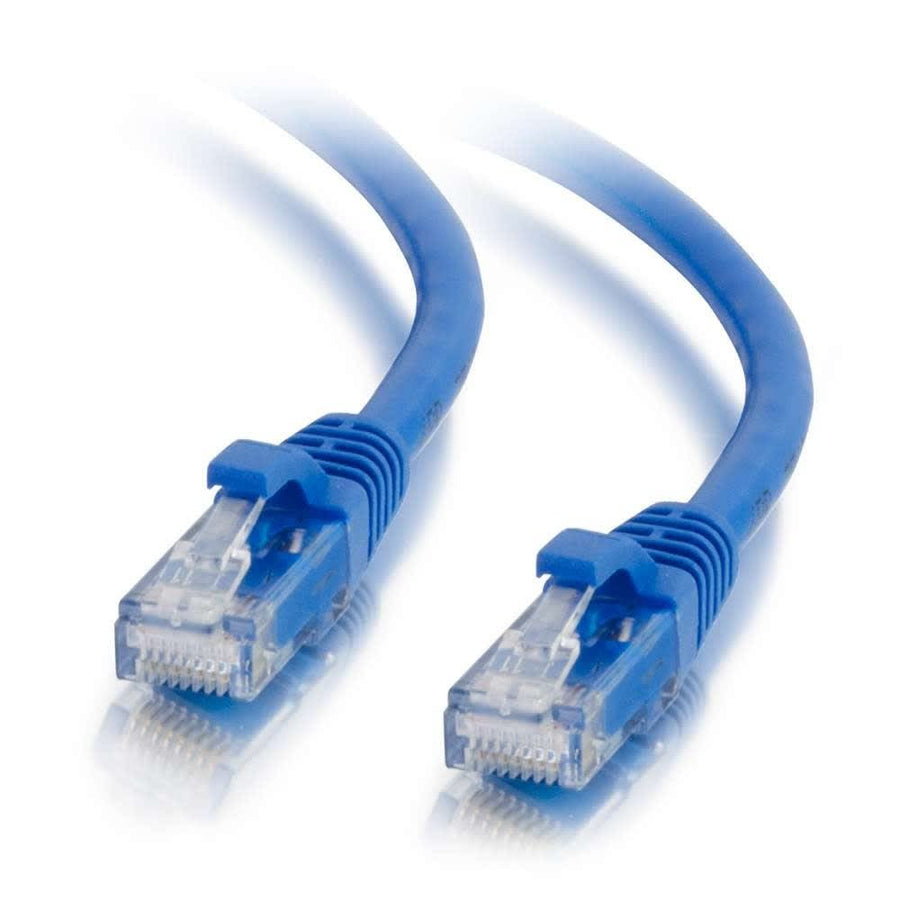

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
30 ft (9.1 m) blue Cat6a snagless unshielded UTP Ethernet patch cable for 10 Gigabit data transmission
The C2G CG00704 is a 30 ft (9.1 m) Cat6a snagless unshielded UTP Ethernet patch cable designed for 10GBase-T ports and equipment. This cable facilitates 10 Gigabit data transmission over 4-pair copper, making it suitable for connections with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring high performance for modern networking. Constructed with 26AWG bare copper stranded conductors and HDPE (High-density Polyethylene) insulation, this cable features PVC jacket material and PVC connector hoods. The snagless, booted connector design is specifically engineered for high-density switch applications, protecting the connection while allowing for easy identification. For organized installations, each cable includes an individual length label. This blue patch cable is TIA/EIA 568B wired and is rated for temperatures up to 75°C. It is CE and RoHS compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.76 lbs (0.3 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007043 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, the CG00704 is designed for 10GBase-T ports and enables 10 Gigabit data transmission over 4-pair copper cabling.
Is this patch cable suitable for high-density switch environments?
The CG00704 features a snagless, booted RJ-45 connector design which is specifically ideal for high-density switch applications.
What is the wiring scheme for the C2G CG00704?
This Cat6a patch cable uses the 568B wiring scheme and is fully tested to ANSI/TIA 568 C.2 Cat6a channel requirements.
What other networking components are compatible with this Cat6a cable?
The cable is compatible with various Cat6a accessories, including the WP246A 24-Port Rack Mount Patch Panel and the AC106A6 6 Port Cat6A Network Interface Module.
What certifications does this cable hold?
The CG00704 is CE, REACH, and RoHS compliant, and is designed to meet ANSI/TIA 568 C.2 standards.
