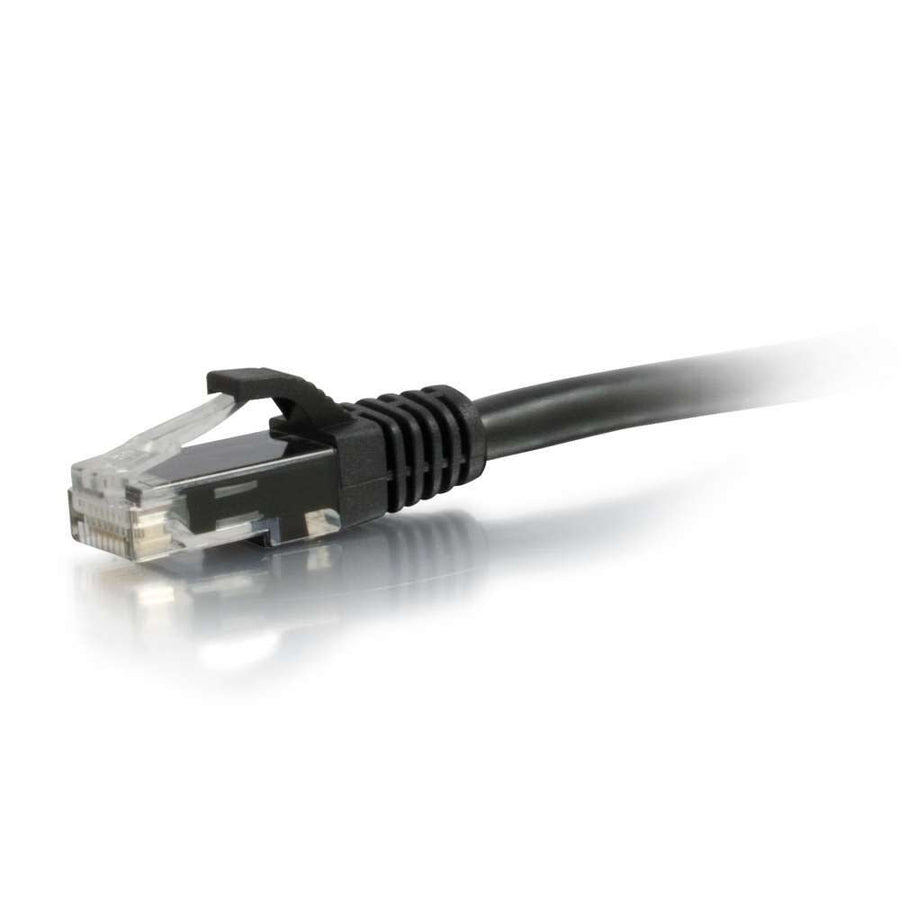

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
30ft (9.1m) Cat6a Snagless UTP Ethernet patch cable, Black, supports 10 Gigabit data transmission
The CG00738 is a 30 ft (9.1 m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable designed for 10GBase-T ports and high-performance equipment. This cable supports 10 Gigabit data transmission over a 4 pair copper cable for connections up to 100 meters. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved alien crosstalk performance compared to standard Cat6 systems. Construction features 26AWG bare copper stranded conductors with HDPE insulation and a PVC jacket. The snagless, booted RJ-45 male connectors are ideal for high-density switch applications where space is limited. This black patch cable is suitable for use with network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. Each cable includes an individual length label for easy identification during installation and management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.78 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007388 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

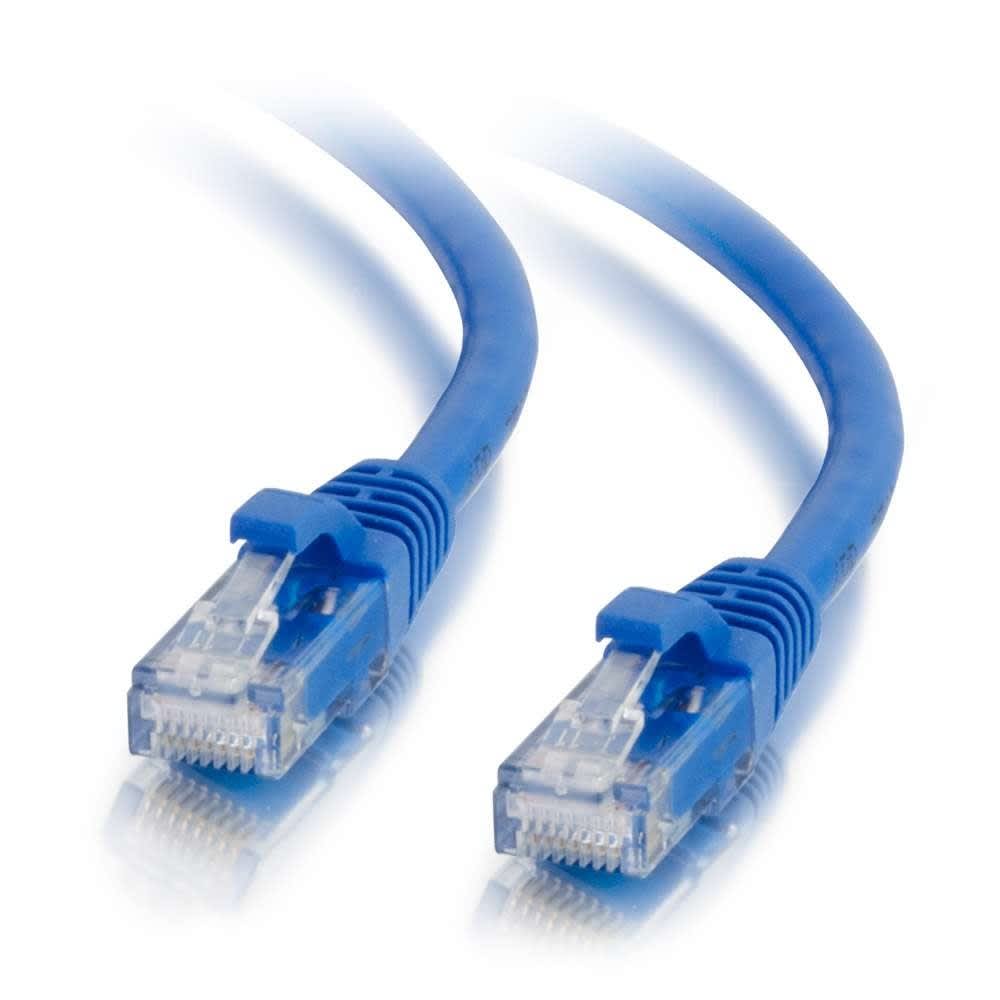

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00704$34.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4 pair copper up to 100 meters.
Yes, this Cat6a cable is designed for 10GBase-T ports and supports 10 Gigabit data transmission over 4 pair copper up to 100 meters.
Is the CG00738 suitable for high-density switches?
Yes, the snagless hood design is specifically intended for high-density switch applications to protect the connector during installation and maintenance.
What is the wiring scheme for this patch cable?
This C2G patch cable uses the 568B wiring scheme for all connections.
What is the temperature rating for this cable?
This Cat6a patch cable is rated for operation up to 75°C.
Is there a different color available for the CG00738?
Yes, this SKU is the black version; for example, SKU CG00704 is available in blue.
