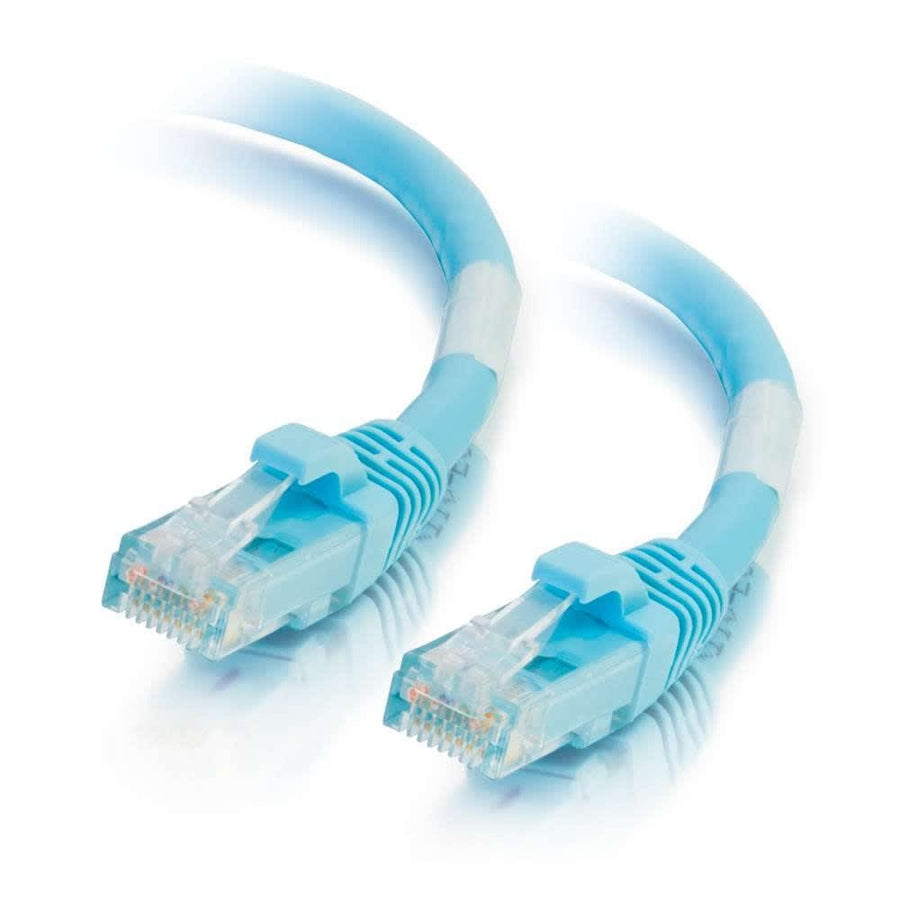

30ft (9.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Aqua
30 ft (9.1 m) Cat6a Snagless UTP patch cable, Aqua, supporting 10GBase-T connectivity
The C2G CG00772 is a 30 ft (9.1 m) Cat6a Snagless Unshielded UTP Ethernet patch cable designed for 10GBase-T ports and high-speed network equipment. This cable facilitates 10 Gigabit data transmission over a 4-pair copper conductor, making it suitable for connections up to 100 meters when used in appropriate channel configurations. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, providing improved performance against alien crosstalk. The stranded copper conductors feature 26AWG (7/0.16) bare copper with HDPE insulation. Designed with a snagless PVC hood, this cable is optimized for high-density switch applications where space is limited. The Aqua jacket and individual length labeling allow for easy identification and color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.78 lbs (0.4 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120007722 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
Questions about this part
Is the C2G CG00772 suitable for 10 Gigabit Ethernet?
Yes, this Cat6a patch cable is designed for 10GBase-T ports and enables 10 Gigabit data transmission over 4-pair copper.
What is the wiring scheme for this patch cable?
The C2G CG00772 utilizes the 568B wiring scheme.
Will this cable work in high-density switches?
Yes, the snagless connector design is specifically intended for use in high-density switch applications.
What is the temperature rating for this cable?
This cable is rated for operation up to 75°C.
What accessories are compatible with Cat6a keystone installations?
This cable is compatible with various Cat6a Keystone Inserts, including the WP346AOR (Orange) and WP346ABK (Black).
