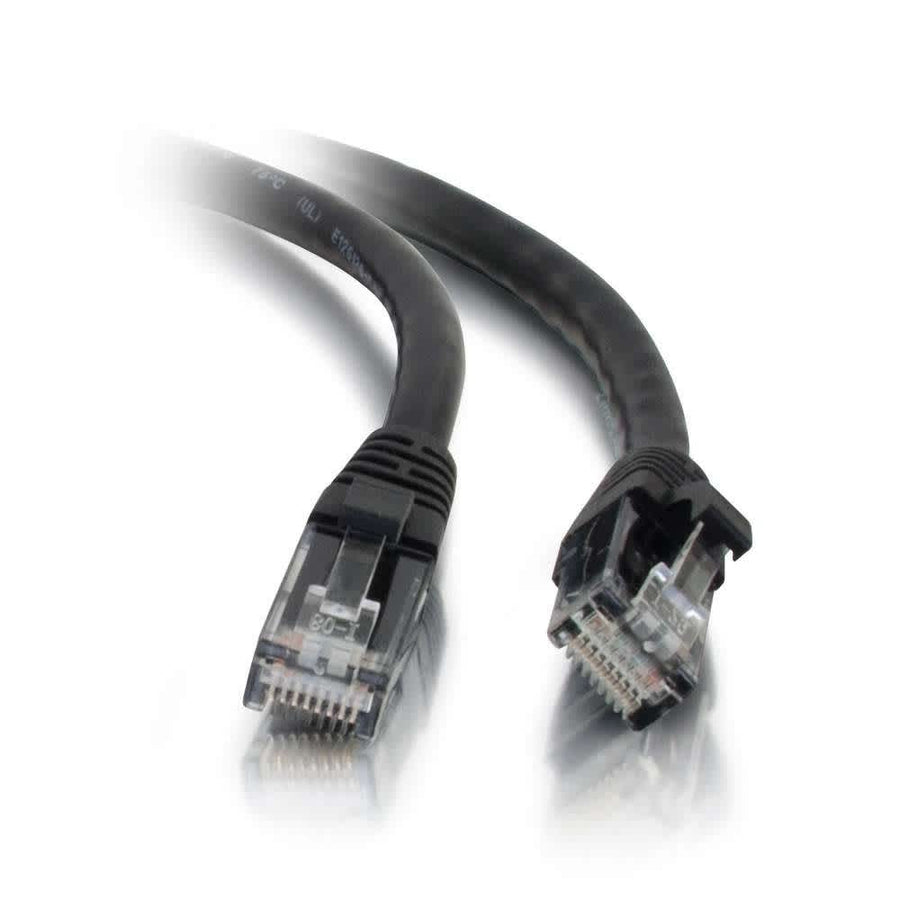

30ft (9.1m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Black
30ft Cat5e Unshielded UTP Ethernet patch cable with black snagless boots and RJ-45 connectors
The C2G CG00408 is a 30 ft (9.1 m) Cat5e Unshielded Twisted Pair (UTP) Ethernet patch cable designed for bandwidth-intensive voice, data, or video distribution applications. This cable features a T568B wiring scheme and is constructed with 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through the termination point, which helps reduce impedance and structural return loss (SRL) across the 350 mHz bandwidth. This specific SKU features a black PVC jacket and PVC connector hoods. The molded, snagless boots provide extra strain relief and protect the RJ-45 clips from damage during frequent plugging and unplugging in high-density environments. This unshielded cable is compliant with TIA/EIA standards and is rated for standard, non-rated environments. It is part of a broader series of snagless patch cables available in various lengths up to 150ft and multiple colors to support network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 30 ft (9.1 m) |
| Shield Type | UTP |
| Shipping Weight | 0.67 lbs (0.3 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120004080 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
8 Port Cat5e Network Interface Module
AC1058$54.99
Cat5e Quick Connect RJ45 Keystone Insert in Green
WP3475GN$3.99
Cat5e Keyed RJ45 Keystone Connector in Black
WP3458BK$6.49
Cat5e RJ45 Keystone Connector in Orange
WP3450OR$4.49
6-Port Network Interface Module
AC1000$54.99
Trio Combo Module with Cat5e Data
CO1156$109.99
Cat5e Quick Connect RJ45 Keystone Insert in Brown
WP3475BR$3.99
Cat5e RJ45 Keystone Connector in Gray
WP3450GY$4.49
6-Port Cat5e Network Interface Module
AC1012$59.99
RJ45 Cat-5E Insert in White - 5 Pack
F3450WHV5$22.99
Cat5e RJ45 Keystone Connector in Brown
WP3450BR$4.49
Cat5e Quick Connect RJ45 Keystone Insert in Ivory
WP3475IV$3.99
Questions about this part
Will this C2G CG00408 cable work for high-bandwidth video applications?
Yes, this Cat5e cable is designed for bandwidth-intensive voice, data, or video distribution, supporting up to 350 mHz.
What is the difference between the snagless boot and a standard boot?
The snagless boot on the CG00408 protects the RJ-45 clips from being snapped off during installation, providing extra strain relief and protecting the connector.
Is this cable shielded or unshielded?
The CG00408 is an Unshielded Twisted Pair (UTP) cable, meaning it does not have additional metallic shielding.
What is the maximum length available in this C2G series?
While this specific SKU is 30 ft (9.1 m), the Cat5e Snagless Patch Cable series is available in lengths up to 150ft.
Does this cable meet TIA/EIA standards?
Yes, this cable meets all Cat5e TIA/EIA standards and is designed to reduce impedance and structural return loss (SRL).
