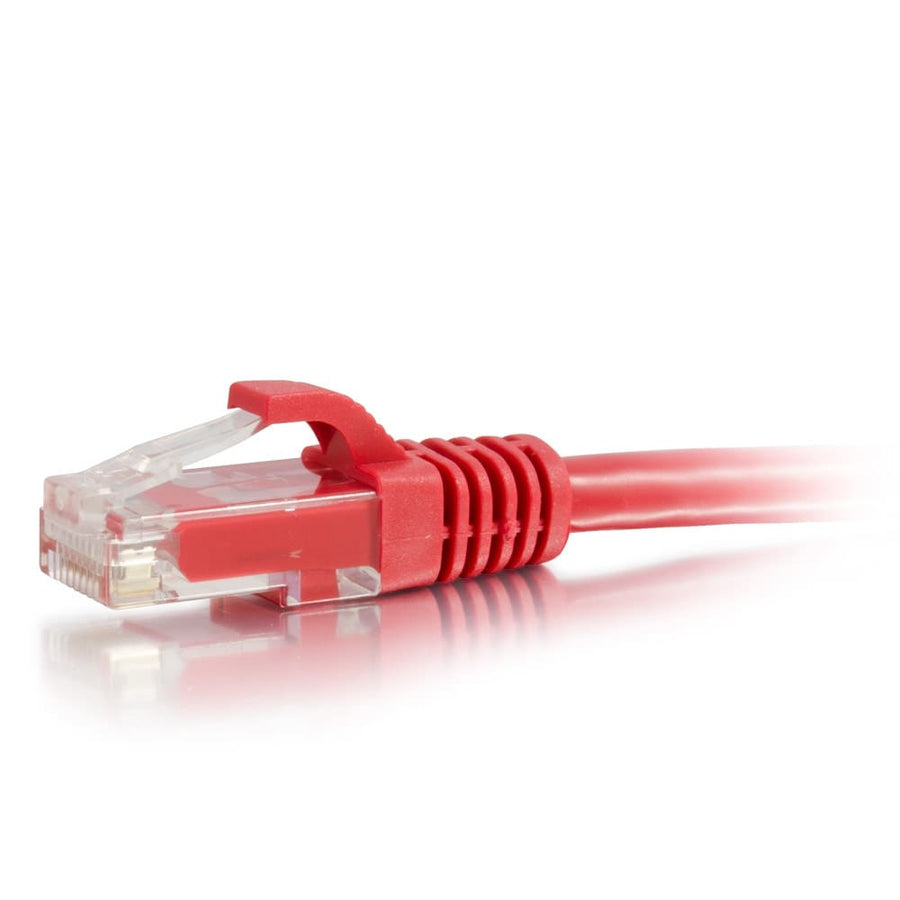

2ft (0.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Red
2ft Red Cat6a Snagless UTP Ethernet patch cable, tested for 10 Gigabit performance
The C2G CG50799 is a 2ft (0.6m) Cat6a Unshielded UTP Ethernet patch cable designed for high-speed 10GBase-T networking. This red cable is ideal for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters. Constructed with 26AWG bare copper stranded conductors and HDPE insulation, this cable is engineered to improve alien crosstalk performance. The snagless PVC connector hoods protect the RJ-45 terminations, making this SKU particularly suited for high-density switch applications where space is limited. This cable features a 568B wiring scheme and a temperature rating of 75°C. Each cable includes an individual length label for rapid identification during installation and maintenance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507994 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit speeds?
Yes, the CG50799 is designed for 10GBase-T ports and supports 10 Gigabit data transmission for connections up to 100 meters.
Is this patch cable suitable for high-density switches?
Yes, the snagless hood on the RJ-45 connectors is specifically designed to protect connections in high-density switch applications.
What is the wiring scheme for this C2G patch cable?
The CG50799 uses the 568B wiring scheme for its RJ-45 terminations.
What is the difference between this and a standard Cat6 cable?
This Cat6a cable is designed to provide improved alien crosstalk performance and supports higher data rates than standard Cat6 systems.
Which C2G accessories are compatible with Cat6a systems?
This cable is compatible with various components like the WP246A 24-Port Rack Mount Patch Panel and the WP346AIV Keystone Insert.
