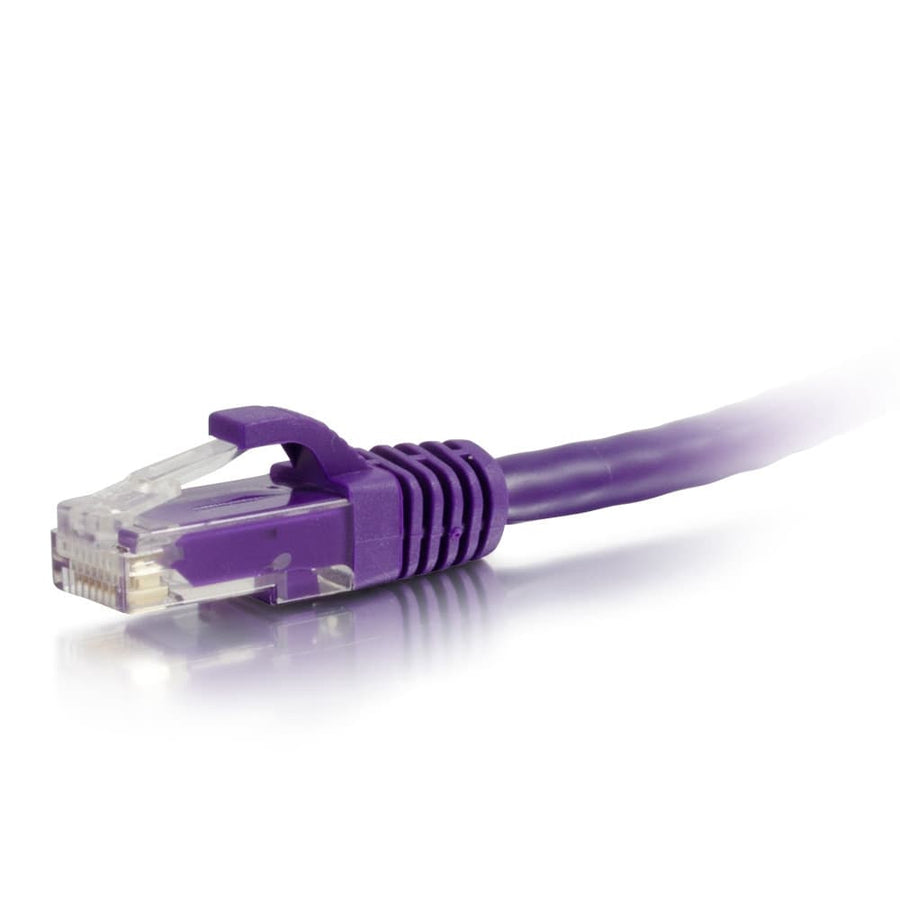

2ft (0.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
Purple Cat6a snagless UTP patch cable, 2ft length, 26AWG stranded copper for 10GbE networking applications
The C2G CG50818 is a 2ft (0.6m) snagless unshielded UTP Cat6a patch cable designed to support 10GBase-T equipment and high-speed data transmission. Built for 10 Gigabit Ethernet performance, this cable facilitates connections up to 100 meters in a 4-pair copper configuration. Each cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance in demanding environments. The 26AWG stranded copper conductors are housed in a PVC jacket with HDPE insulation, providing a robust solution for network adapters, hubs, switches, and routers. This specific SKU features a purple color for easy identification and a snagless, booted connector design that is particularly effective in high-density switch applications. The snagless hood prevents accidental damage to the boot during installation. For organized cable management, each individual cable includes a length label. The cable features a 568B wiring scheme and is rated for temperatures up to 75°C.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.07 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120508182 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this CG50818 cable supports 10GBase-T performance, enabling 10 Gigabit data transmission over 4-pair copper cabling.
Is this cable suitable for high-density switches?
Yes, the snagless booted connector design is specifically intended to protect the cable and simplify management in high-density switch applications.
What is the wiring scheme for the CG50818?
This patch cable utilizes the 568B wiring scheme and features 26AWG stranded copper conductors.
Does this cable come with a warranty?
Yes, the CG50818 comes with a lifetime warranty from C2G.
What certifications does this cable hold?
The CG50818 is CE, REACH, and RoHS compliant, and is ANSI/TIA 568 C.2 Cat6a channel tested.
