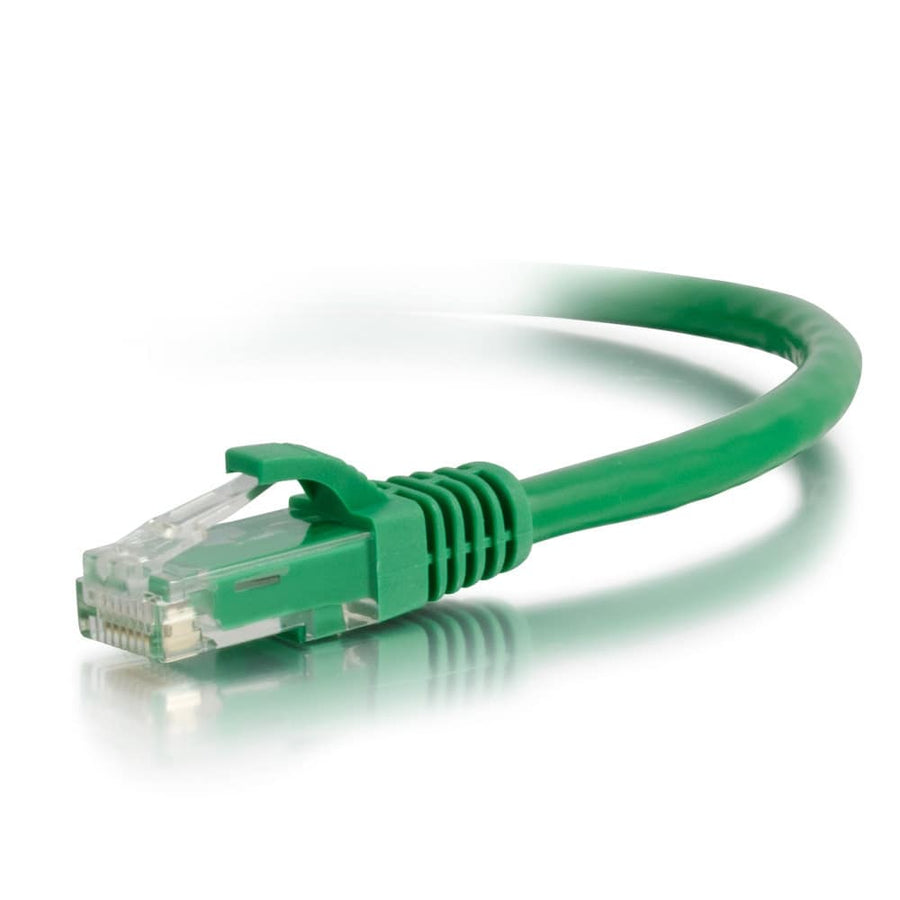

2ft (0.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Green
2ft Cat6a snagless UTP patch cable in green, featuring 26AWG stranded copper conductors for 10GbE performance
The C2G CG50780 is a 2ft (0.6m) Cat6a snagless Unshielded UTP Ethernet patch cable designed for high-density environments. This green cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, facilitating 10 Gigabit data transmission over 4-pair copper cabling for connections up to 100 meters. It utilizes 26AWG (7/0.16) bare copper stranded conductors with HDPE insulation to improve alien crosstalk performance. The snagless PVC connector hood is specifically designed to protect the termination in high-density switch applications, allowing for easier installation in crowded patch panels or racks. This cable uses a 568B wiring scheme and is rated for temperatures up to 75°C. The 0.24 in (6 mm) diameter design is suitable for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels to support 10GBase-T equipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120507802 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable support 10GbE speeds?
Yes, the CG50780 is designed for 10GBase-T equipment and supports 10 Gigabit data transmission over 4-pair copper cable for distances up to 100 meters.
What is the wiring scheme for the CG50780?
The CG50780 patch cable uses the 568B wiring scheme for standard network connectivity.
Is the CG50780 suitable for high-density patch panels?
Yes, the snagless connector hood is specifically designed to facilitate installation and management within high-density switch and patch panel applications.
What type of conductor is used in this Cat6a cable?
This cable features 26AWG (7/0.16) bare copper stranded conductors with HDPE insulation.
Can I use this with Cat6a keystone inserts?
Yes, this cable is compatible with various Cat6a accessories, including the WP346A series of RJ45 Keystone Inserts and WP246A rack mount patch panels.
