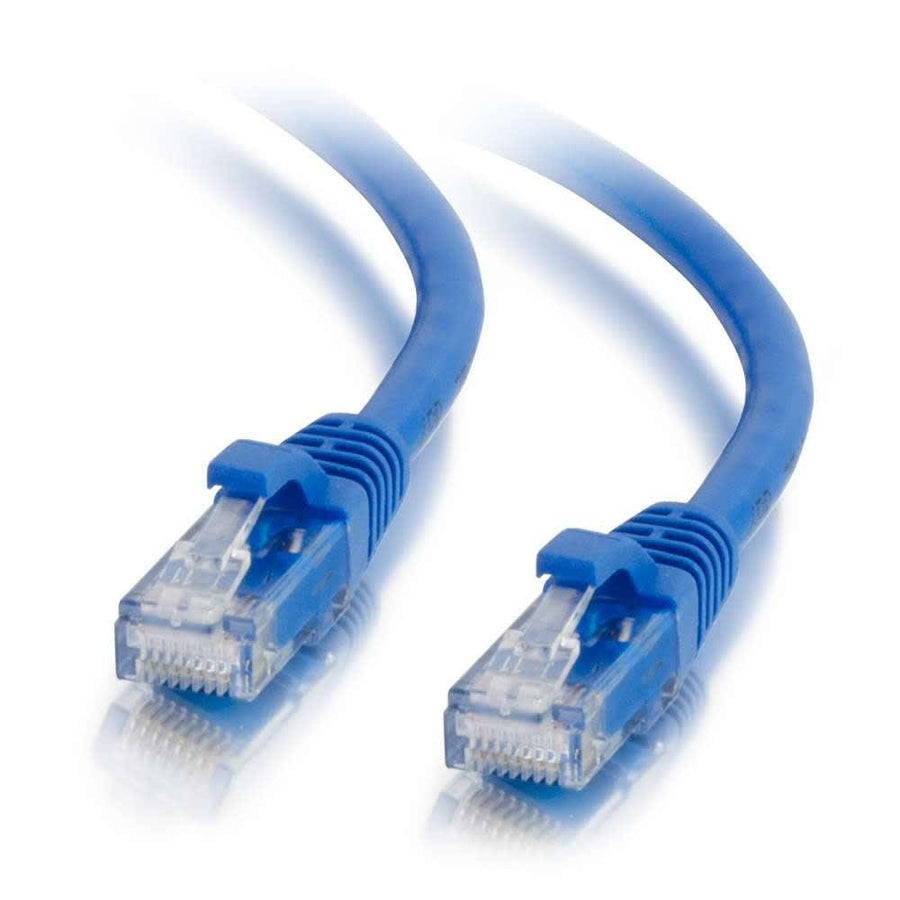

2ft (0.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
Blue 2ft Cat6a Unshielded UTP Ethernet patch cable with snagless boots, tested for ANSI/TIA 568 C.2 performance
The C2G CG00690 is a 2ft (0.6m) Blue Cat6a Unshielded UTP Ethernet patch cable designed for high-performance 10GBase-T environments. This cable supports 10 Gigabit data transmission over a 4-pair copper cable, facilitating connections up to 100 meters when used in appropriate network architectures. It is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements, ensuring reliable performance for network adapters, hubs, switches, routers, and patch panels. Each cable features a snagless boot design to protect the connection in high-density switch applications and is constructed with 26AWG bare copper stranded conductors. The cable utilizes HDPE insulation and a PVC jacket, with a temperature rating of 75°C. For organized installations, each cable includes an individual length label. This patch cable is a reliable choice for maintaining 10 Gigabit speeds in modern data centers and office networking infrastructures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 2 ft (0.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.08 lbs (0 kg) |
| Wire Gauge | 26 |
| Cable Shielding | Unshielded UTP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 15
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120006909 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6a 24-Port Rack Mount Patch Panel
WP246A$279.99
6 Port Cat6A Network Interface Module
AC106A6$64.99
Cat6a Quick Connect RJ45 Keystone Insert in Ivory
WP346AIV$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Orange
WP346AOR$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Light Almond
WP346ALA$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Gray
WP346AGY$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Green
WP346AGN$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Black
WP346ABK$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Yellow
WP346AYE$13.99
Cat6a Quick Connect RJ45 Keystone Insert in Blue
WP346ABE$13.99
USB-C® to Ethernet Adapter with 3-Port USB Hub - White
CG29746$79.99
USB-C® to Ethernet Multiport Adapter with Power Delivery - Black
CG29749$70.99
Questions about this part
Will this Cat6a cable work with 10GBase-T equipment?
Yes, the CG00690 is designed for 10GBase-T ports and equipment, including switches, routers, and hubs, supporting 10 Gigabit data transmission.
What is the maximum distance supported by this Cat6a cable?
This patch cable enables 10 Gigabit connections up to 100 meters when used within the proper network channel parameters.
Is this cable suitable for high-density rack mounting?
The snagless boot design is specifically intended to protect connections and ease management in high-density switch applications.
What accessories are compatible with this cable series?
This cable is compatible with various accessories including the WP246A Cat6a 24-Port Rack Mount Patch Panel and several Cat6a Quick Connect RJ45 Keystone Inserts.
What testing standards does this cable meet?
The CG00690 is fully tested to meet the ANSI/TIA 568 C.2 Cat6a channel requirements.
